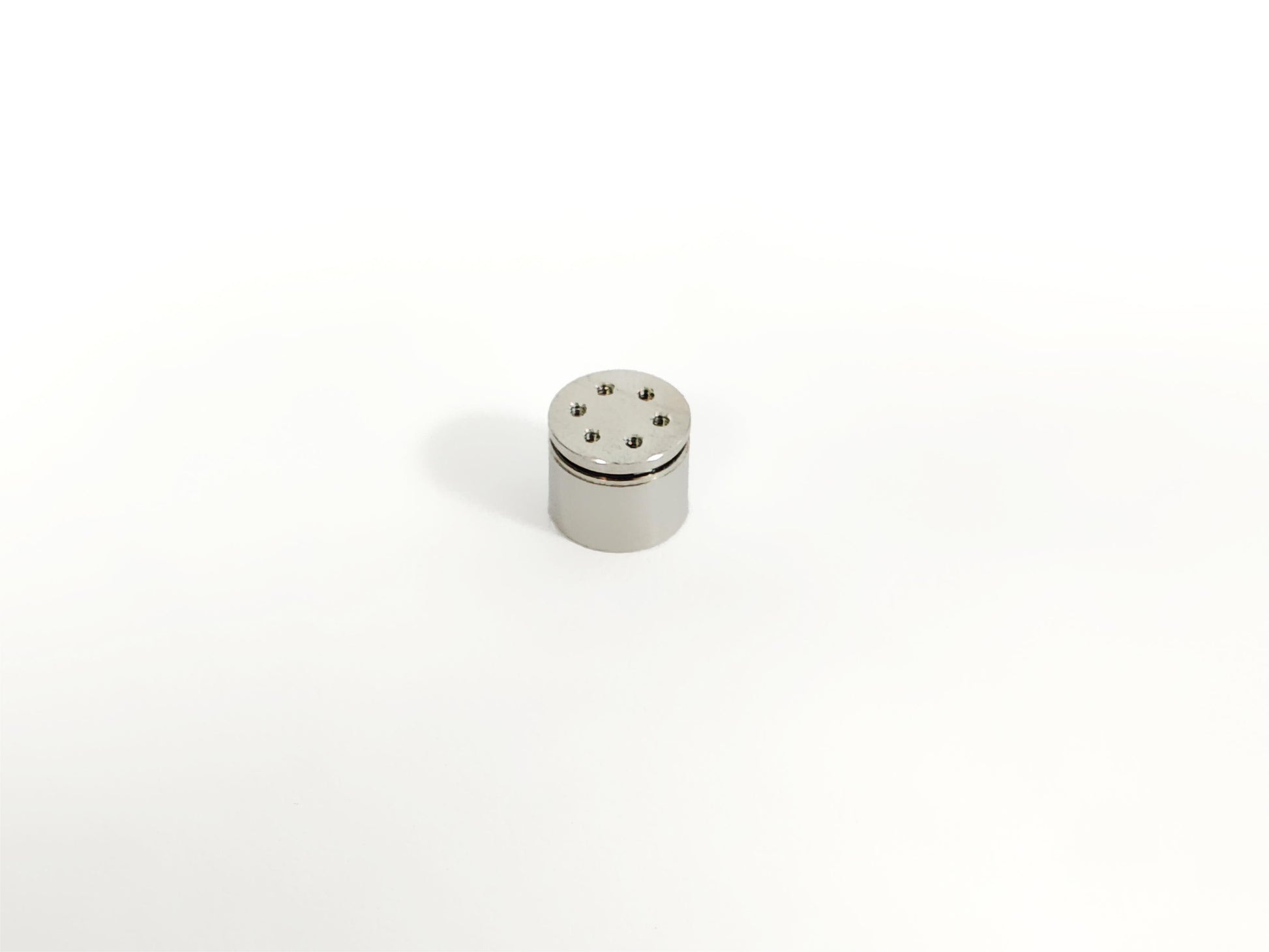

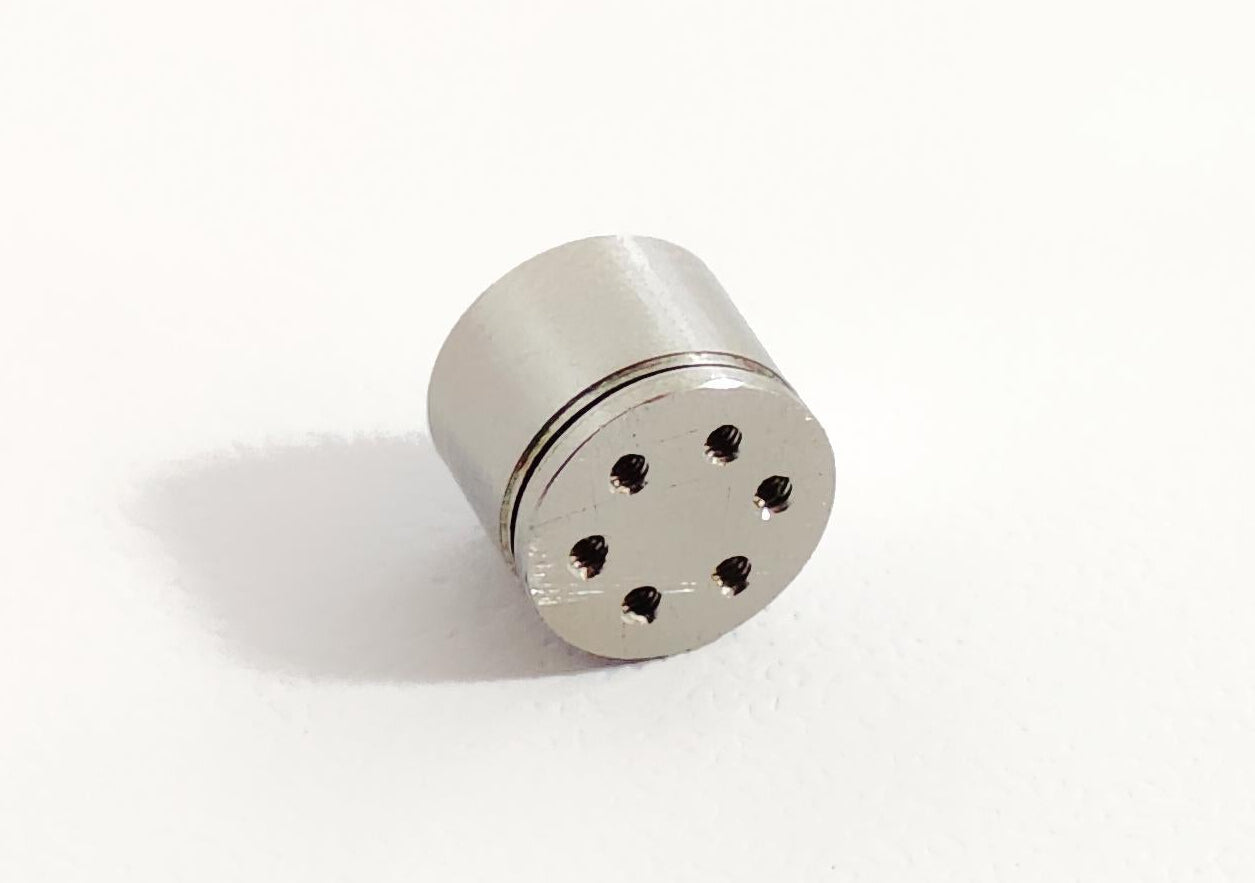

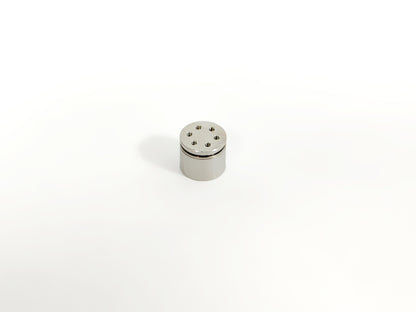

Photon Finger is an ultra-compact multi-dimensional force sensor engineered for advanced robotics and precision manipulation systems. With a diameter of just 8.5 mm and a thickness of 7 mm, it enables high-accuracy 3-axis force sensing in extremely space-constrained applications such as robotic fingertips and dexterous end-effectors.
Key Features
• Ultra-miniature size: 8.5 mm diameter
• Slim 7 mm thickness for tight integration
• 3-axis force detection (Fx, Fy, Fz)
• High sensitivity with stable output
• kHz-level communication frequency
• Low power consumption (<0.1 W)
• Resistant to high temperature and strong magnetic fields
• Cylindrical compact structure for easy mounting
Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | Fz: 30 N / Fx = Fy: 10 N / Mx = My: 35 N·mm |
| Overload Capacity | 150% F.S. |
| Repeatability | 1% F.S. |
| Resolution | 0.05 N |
| Zero Drift | 1% F.S. |
| Protection Rating | IP64 |
| Supply Voltage | DC 24 V |
| Temperature Compensation | -10°C to 40°C |
| Operating Temperature | -10°C to 50°C |
| Output Signal | RS485 |
| Sampling Frequency | 1000 Hz |
Specifications are typical values and may vary depending on system integration and operating conditions.
What’s Included
• 1 × Photon Finger Ultra-Miniature 3-Axis Force Sensor
Applications
• Humanoid robot fingertips
• Robotic hands and dexterous manipulators
• Precision gripping systems
• Research and laboratory robotics
• Industrial automation requiring force feedback
• Advanced tactile sensing development
Why Choose Photon Finger
Photon Finger solves the long-standing challenge of miniaturizing multi-axis force sensing technology without compromising precision or stability. Its extremely compact footprint allows seamless integration into robotic fingertips, enabling enhanced tactile perception, safer object handling, and more delicate manipulation in advanced robotic systems.
