Description

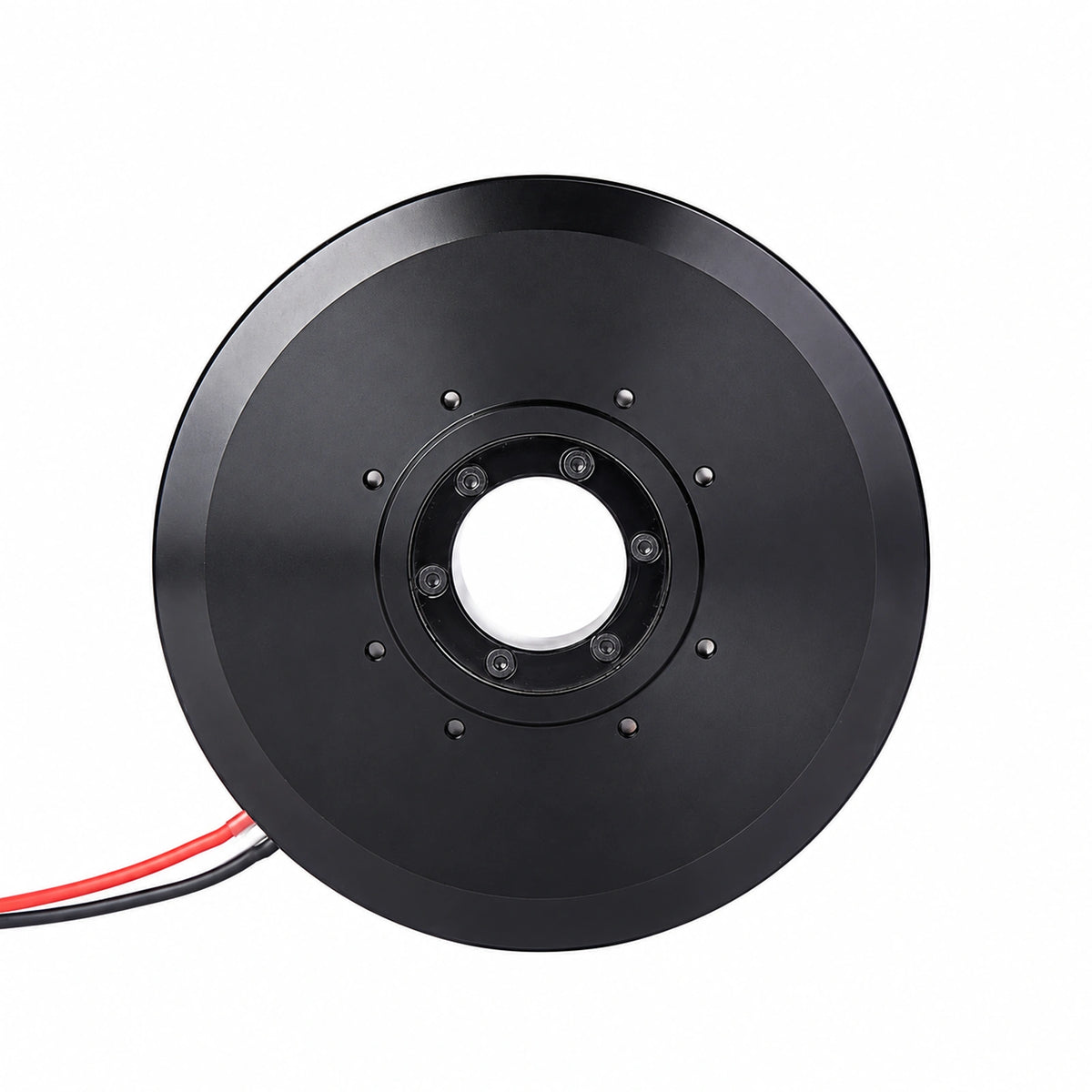

The PM100 is a large-diameter high-torque brushless DC motor designed for gimbals, robotic joints, rotary platforms and precision motion-control systems.
With a 24V nominal voltage, 1.6 N·m nominal torque and up to 3 N·m stall torque, the motor provides substantially higher torque than compact pancake gimbal motors while maintaining a low-profile direct-drive design.
The motor features a large center opening and is available with an AS5048A 14-bit magnetic encoder for rotor position feedback. Its 21-pole-pair configuration provides smooth low-speed operation, making it suitable for large camera gimbals, robotic arms, pan-tilt platforms and other applications requiring controlled rotary motion.

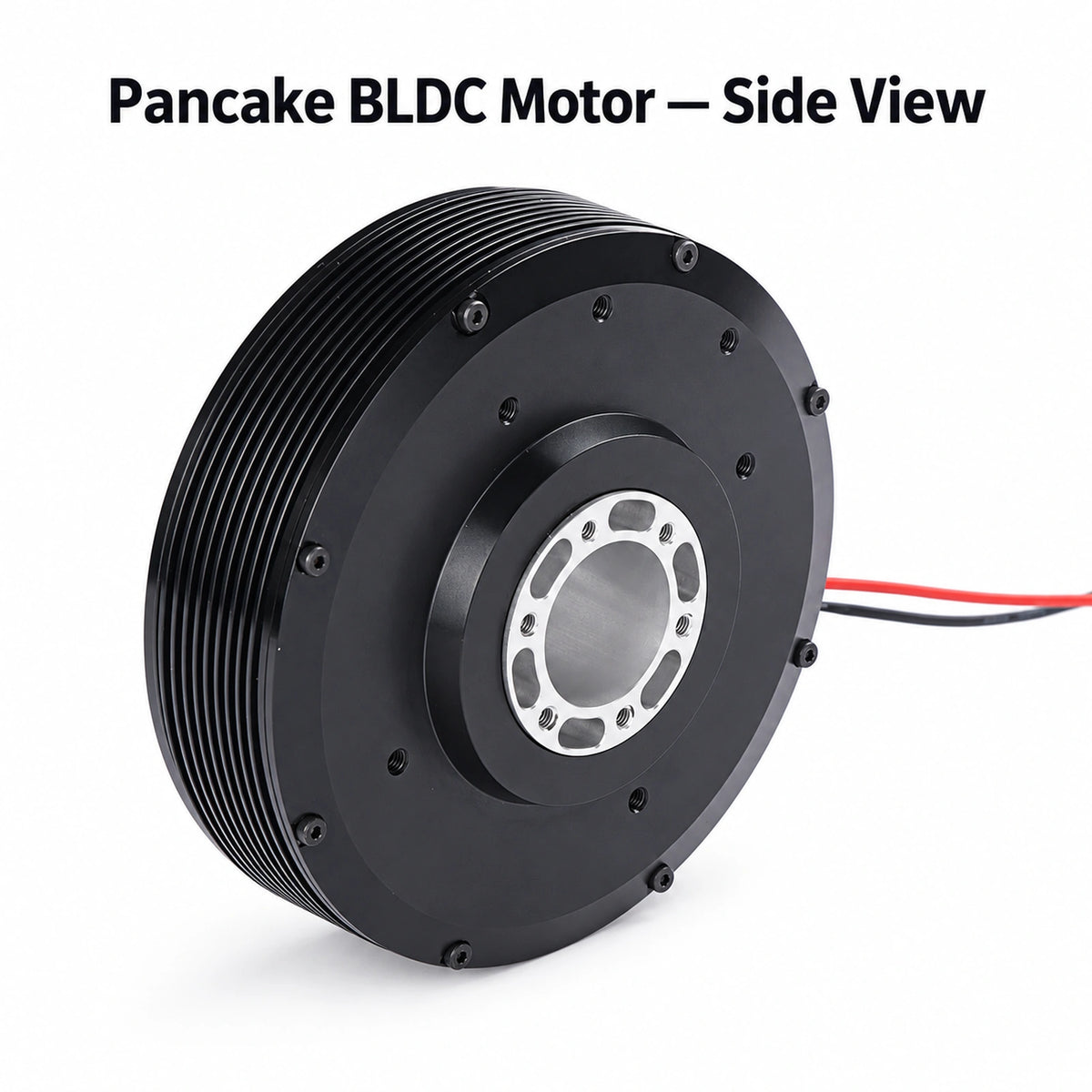

The PM100 has a 98.5mm outer diameter and a compact axial profile, allowing it to deliver high torque in applications where installation depth is limited.
Key Features
- 98.5mm high-torque pancake BLDC motor
- 24V nominal voltage
- 1.6 N·m nominal torque
- Up to 3 N·m stall torque
- 300 RPM nominal speed
- Up to 480 RPM no-load speed
- 21 pole pairs

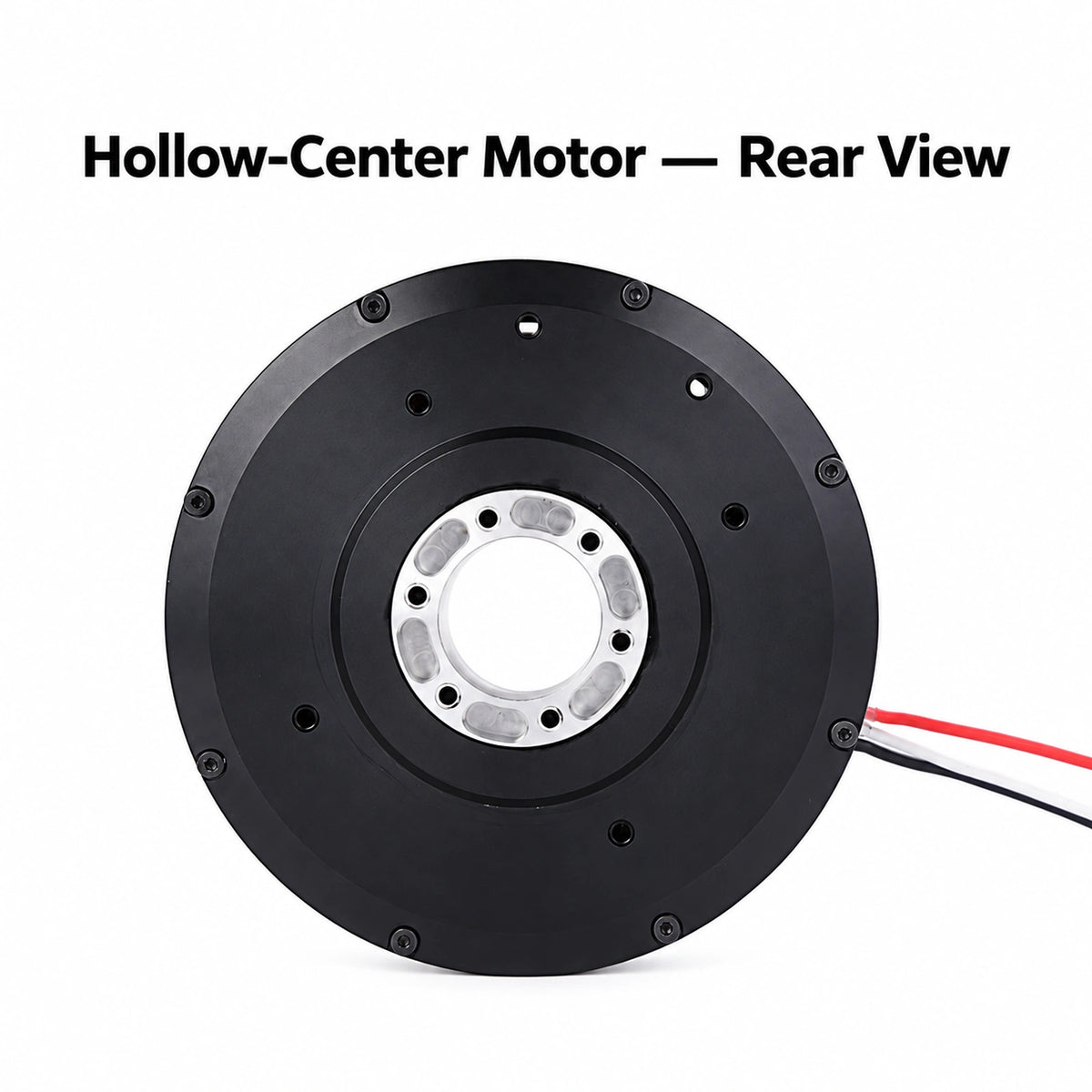

- Large center-hole design
- Optional AS5048A magnetic encoder
- 14-bit encoder resolution
- Y-connected winding
- Compact direct-drive structure
- Suitable for high-torque gimbals and robotic joints

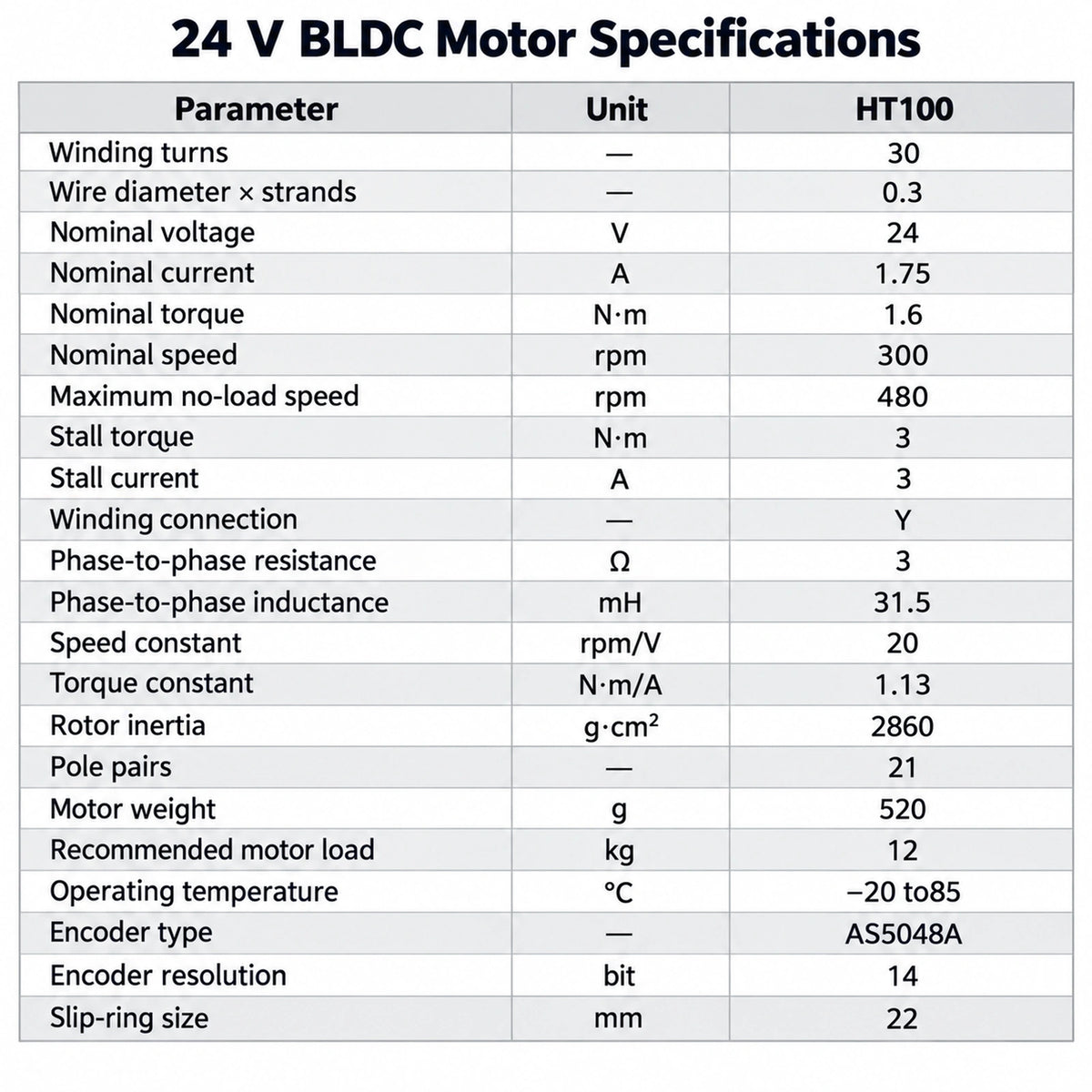

Specifications
| Specification | Value |
|---|---|
| Product Model | PM100 |
| Reference Model | HT100 |
| Motor Type | Pancake Brushless DC Motor |
| Outer Diameter | 98.5 mm |
| Nominal Voltage | 24 V |
| Nominal Current | 1.75 A |
| Nominal Torque | 1.6 N·m |
| Nominal Speed | 300 RPM |
| Max No-Load Speed | 480 RPM |
| Stall Torque | 3 N·m |
| Stall Current | 3 A |
| Winding Connection | Y |
| Phase-to-Phase Resistance | 3 Ω |
| Phase-to-Phase Inductance | 31.5 mH |
| Speed Constant | 20 RPM/V |
| Torque Constant | 1.13 N·m/A |
| Rotor Inertia | 2860 g·cm² |
| Pole Pairs | 21 |
| Motor Weight | 520 g |
| Recommended Motor Load | 12 kg |
| Working Temperature | -20°C to 85°C |
| Encoder | AS5048A |
| Encoder Resolution | 14-bit |
| Center / Slip Ring Size | 22 mm |

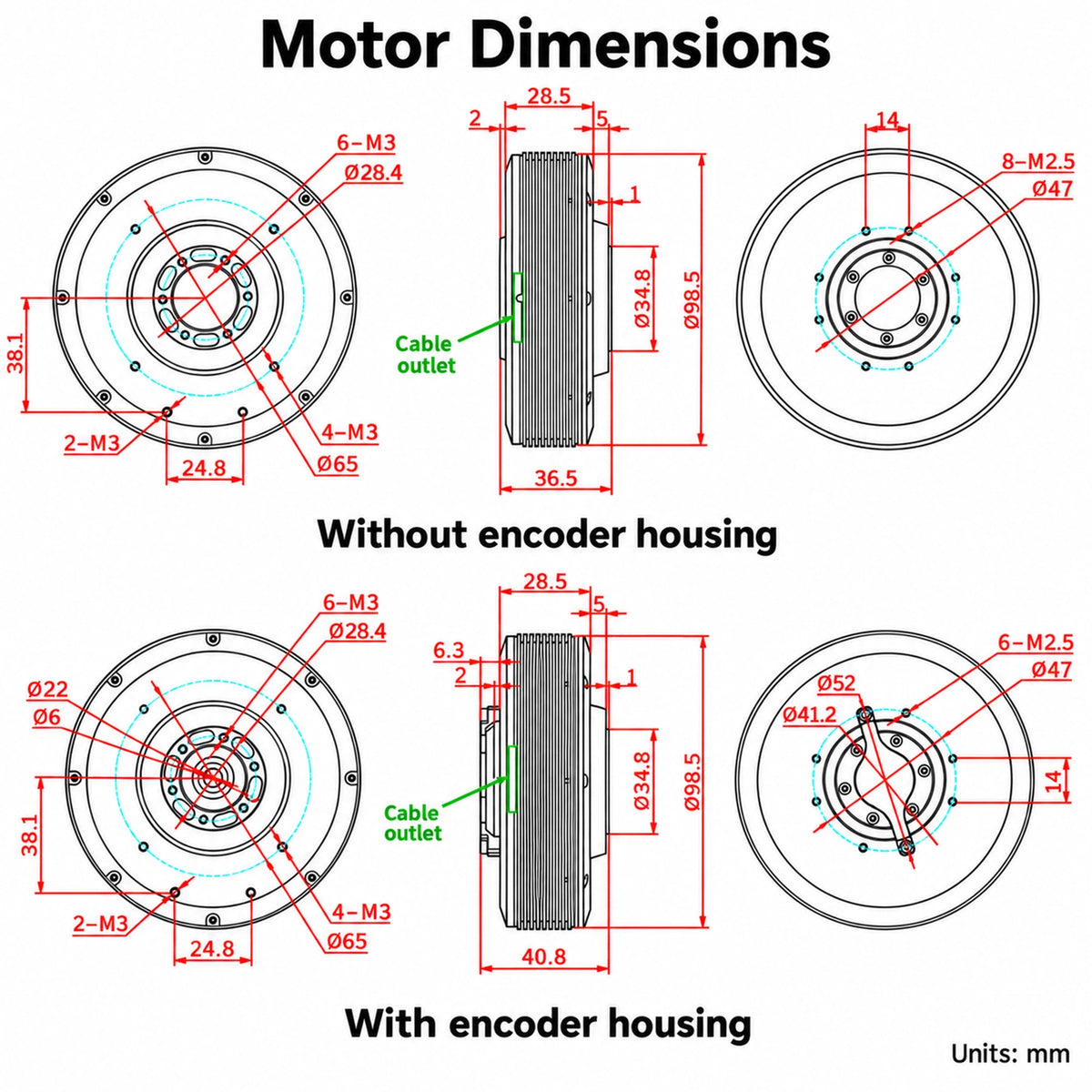

Dimensions
| Dimension | Value |
|---|---|
| Motor Outer Diameter | Ø98.5 mm |
| Main Motor Section | 28.5 mm |
| Overall Thickness Without Encoder Housing | 36.5 mm |
| Overall Thickness With Encoder Housing | 40.8 mm |
| Center Opening | Ø22 mm |
| Front Mounting Pattern | 6 × M3 on Ø28.4 mm |
| Additional Mounting Pattern | 4 × M3 on Ø65 mm |
| Rear Mounting Reference | Ø47 mm |
| Encoder Housing Reference Diameter | Ø52 mm |
| Motor Body Reference Diameter | Ø34.8 mm |
Dimensions differ depending on whether the encoder housing is installed.
Applications
- Large camera gimbals
- Robotic joints
- Robotic arms
- Pan-tilt platforms
- Optical equipment
- Rotary positioning systems
- Inspection equipment
- Automation equipment
- Direct-drive mechanisms
- High-torque rotary platforms
Package Includes
Package contents should follow the selected configuration.
| Configuration | Package Contents |
|---|---|
| PM100 Motor Only | 1 × PM100 BLDC Motor |
| PM100 + AS5048A Encoder | 1 × PM100 BLDC Motor + AS5048A Encoder + Encoder Housing |
