Product Overview
The PM1105 (GB1105) is a compact and lightweight brushless gimbal motor designed for micro-scale precision applications. With a diameter of just 16mm and extremely low weight, it is ideal for robotic fingers, dexterous hands, and miniature actuation systems. The motor supports an optional AS5048A magnetic encoder for accurate position feedback.
Key Features
- Ultra-compact size (Ø16mm) for space-constrained designs
- Lightweight construction (10g–15g)
- High speed performance up to 18057 rpm
- Optional AS5048A encoder for precise control
- Stable torque output for micro actuation
- Suitable for robotic fingers and miniature joints
- Wide operating temperature range
Applications
- Robotic fingers / dexterous hands
- Micro robotic joints
- Miniature gimbal systems
- Precision positioning devices
- Small-scale automation equipment

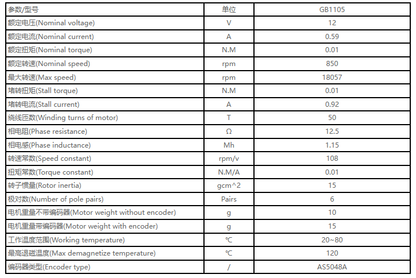

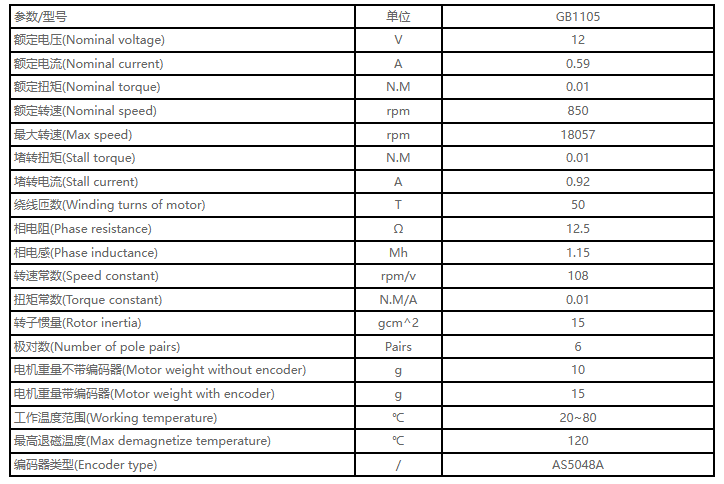

Technical Specifications
| Parameter | Unit | Value |
|---|---|---|
| Model | / | GB1105 |
| Nominal Voltage | V | 12 |
| Nominal Current | A | 0.59 |
| Nominal Torque | N·m | 0.01 |
| Nominal Speed | rpm | 850 |
| Max Speed | rpm | 18057 |
| Stall Torque | N·m | 0.01 |
| Stall Current | A | 0.92 |
| Winding Turns | T | 50 |
| Phase Resistance | Ω | 12.5 |
| Phase Inductance | mH | 1.15 |
| Speed Constant | rpm/V | 108 |
| Torque Constant | N·m/A | 0.01 |
| Rotor Inertia | g·cm² | 15 |
| Pole Pairs | Pairs | 6 |
| Motor Weight | g | 10 (without encoder) |
| Motor Weight | g | 15 (with encoder) |
| Working Temperature | °C | 20 ~ 80 |
| Max Demagnetization Temp | °C | 120 |
| Encoder Type | / | AS5048A |

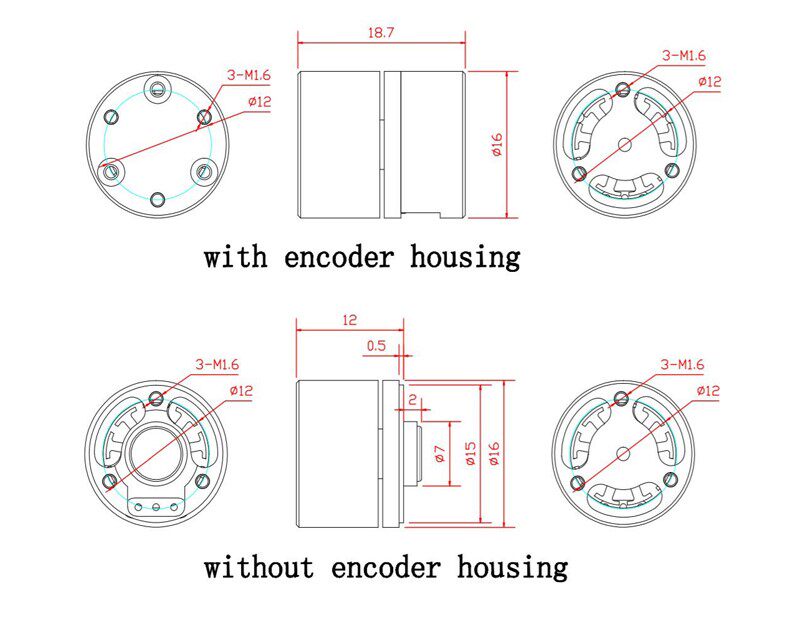

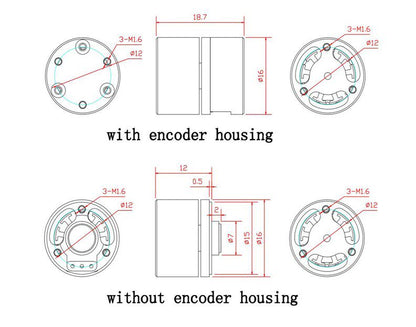

Dimensions
- Diameter: Ø16 mm
- Length:
- With encoder housing: 18.7 mm
- Without encoder housing: 12 mm
Package Includes
- 1 × PM1105 Brushless Gimbal Motor
(Configuration depends on selected variant)
