PM2205 Gimbal Brushless Motor (GBM2605) with Encoder Optional
Product Overview
The PM2205 (GBM2605) is a compact, high-precision gimbal brushless motor designed for camera stabilization, UAV payloads, and robotics applications.

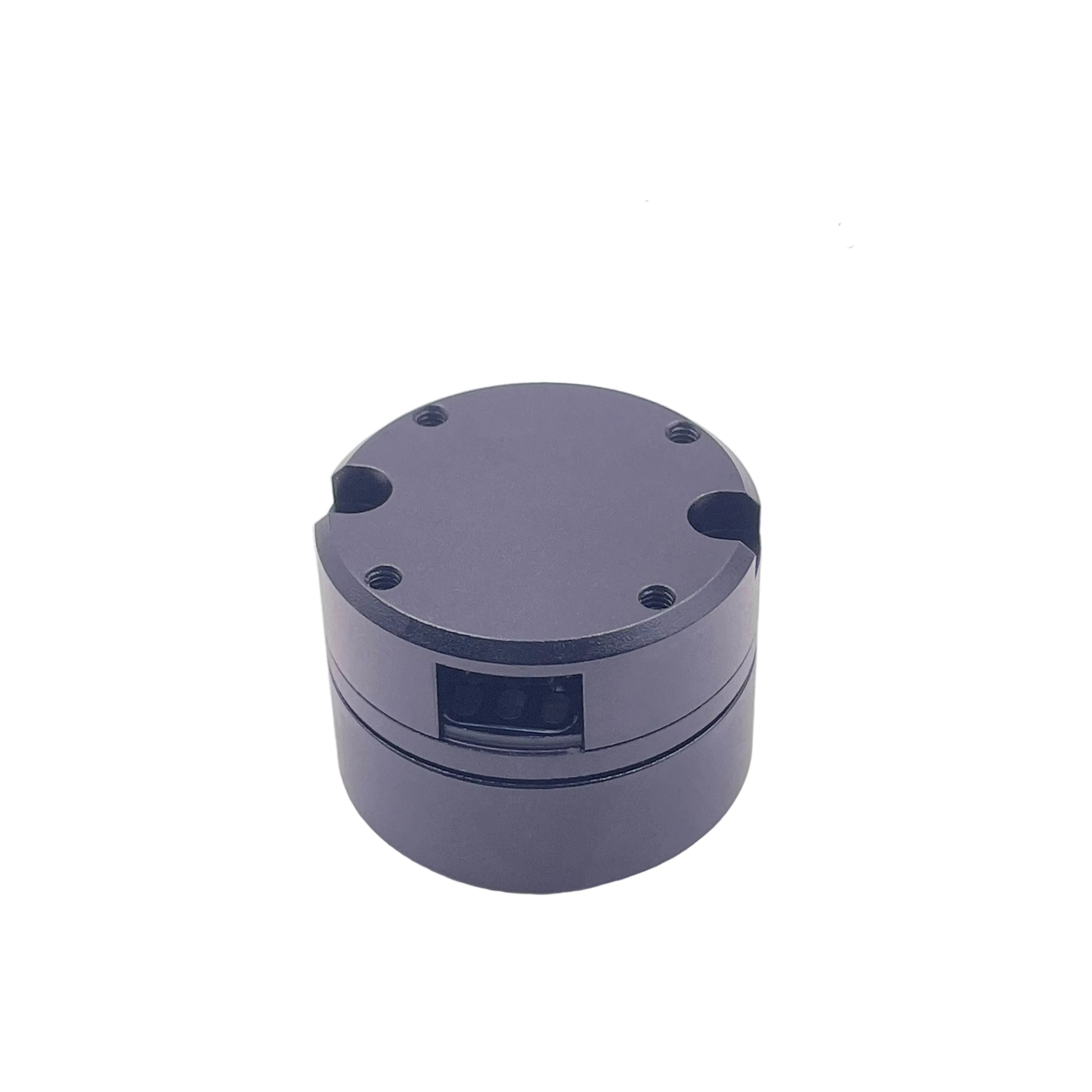

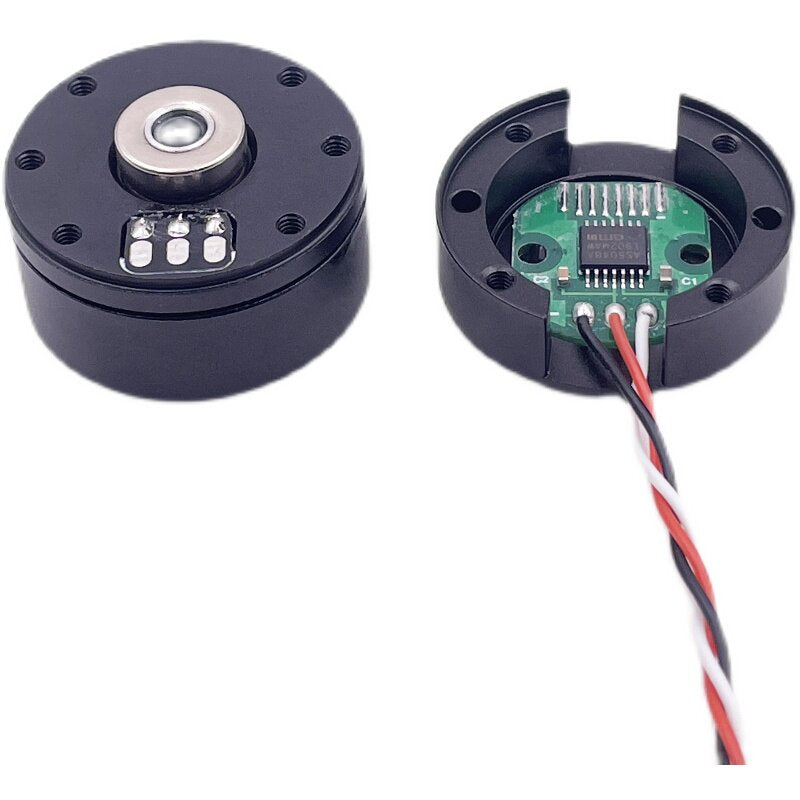

It supports optional magnetic encoder integration (AS5048 / AS5600), enabling accurate position feedback for closed-loop control systems.
With a lightweight structure and smooth torque output, this motor is ideal for micro gimbal systems, inspection cameras, and embedded motion control projects.
Key Features
- High precision brushless gimbal motor
- Optional encoder version (AS5048 / AS5600)
- Compact size (Φ26mm class motor)
- Smooth rotation & low vibration
- Suitable for camera gimbals / UAV payloads / robotics
- Lightweight design for portable systems
- Supports external encoder housing

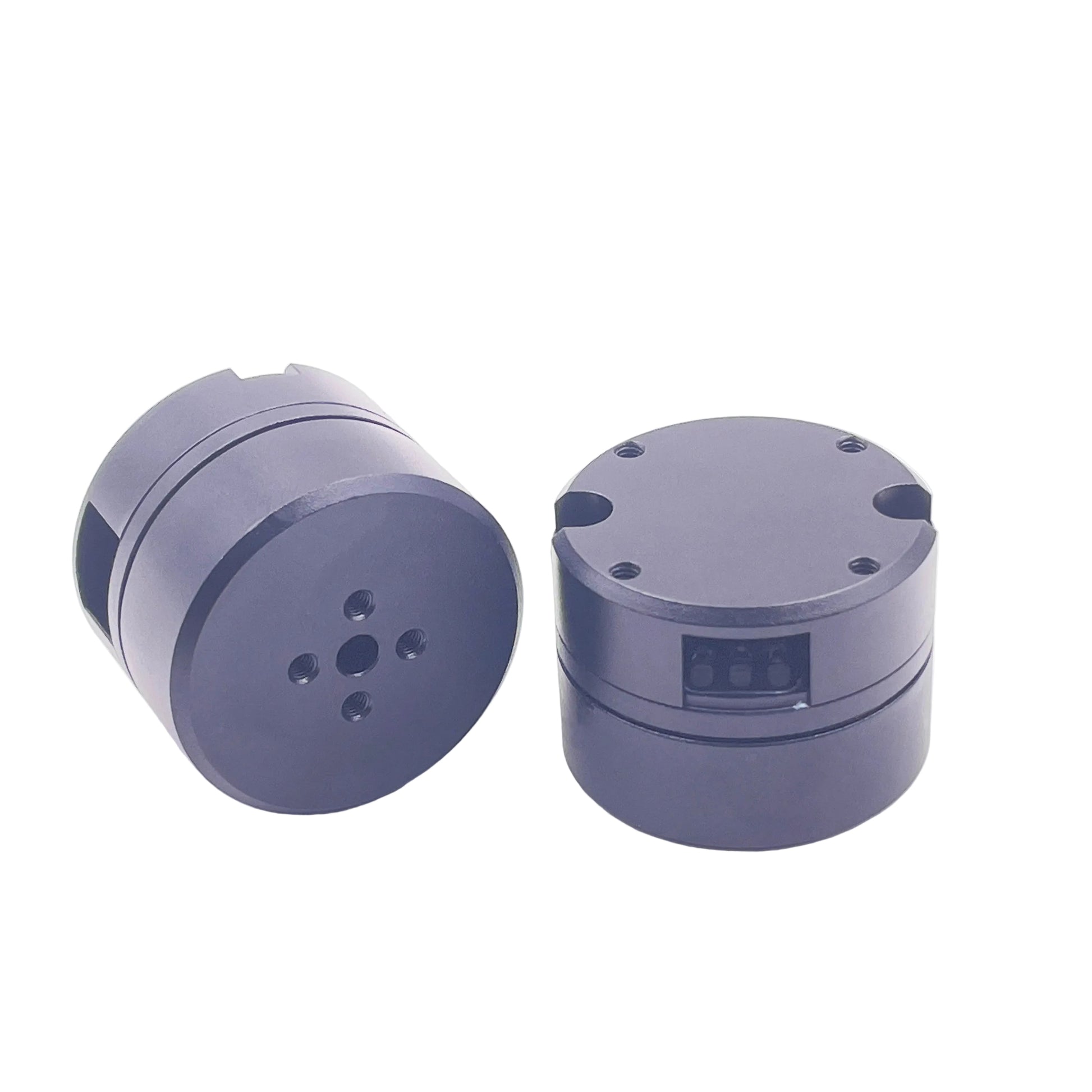

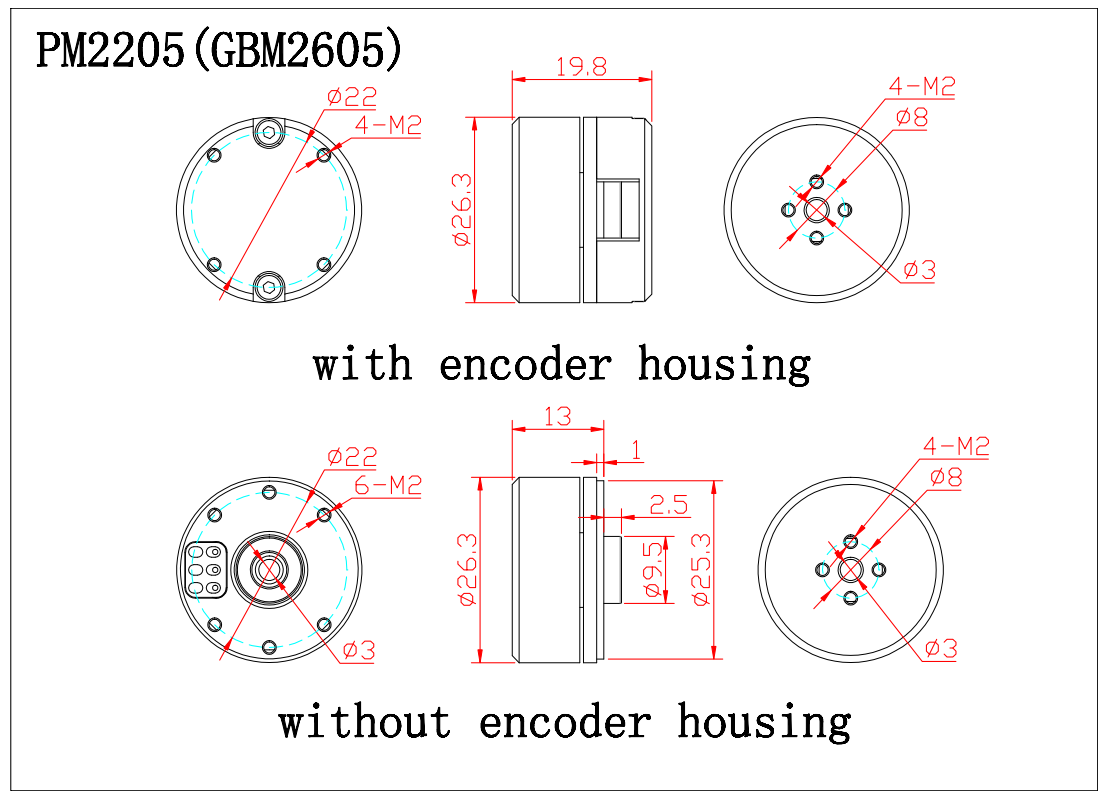

Mechanical Dimensions
With Encoder Housing
- Diameter: 26.3 mm
- Length: 19.8 mm
- Mounting: 4 × M2
- Mount Circle: Φ22

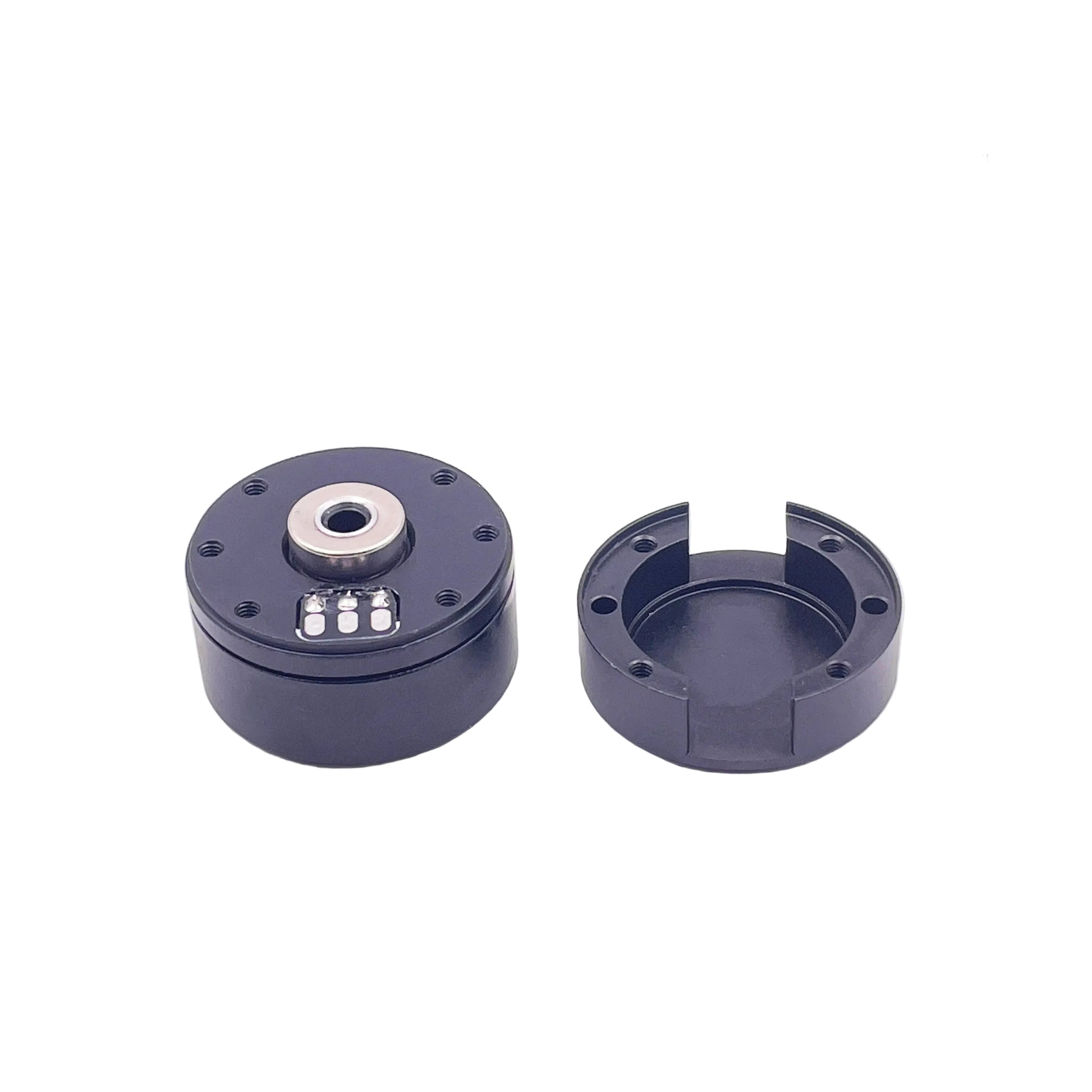

Without Encoder Housing
- Diameter: 26.3 mm
- Length: 13 mm
- Shaft: Φ3 mm
- Mounting Options: 4 × M2 / 6 × M2

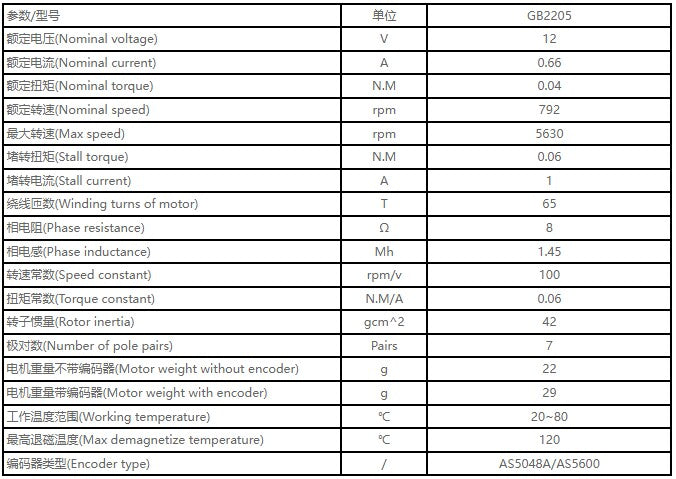

Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 12 V |
| Nominal Current | 0.66 A |
| Nominal Torque | 0.04 N·m |
| Nominal Speed | 792 rpm |
| Max Speed | 5630 rpm |
| Stall Torque | 0.06 N·m |
| Stall Current | 1 A |
| Winding Turns | 65 T |
| Phase Resistance | 8 Ω |
| Phase Inductance | 1.45 mH |
| Speed Constant | 100 rpm/V |
| Torque Constant | 0.06 N·m/A |
| Rotor Inertia | 42 g·cm² |
| Pole Pairs | 7 |
| Weight (Without Encoder) | 22 g |
| Weight (With Encoder) | 29 g |
| Working Temperature | 20 ~ 80°C |
| Max Demagnetization Temp | 120°C |
| Encoder Type | AS5048 / AS5600 |
Applications
- Camera gimbal stabilization systems
- UAV / drone payload control
- Robotics joints & motion systems
- Optical tracking & inspection devices
- Embedded motion control projects
Package Includes
- 1 × PM2205 Gimbal Motor
- (Optional) Encoder module depending on selected variant
Notes
- Encoder versions require compatible controller (e.g., SimpleBGC / FOC driver)
- Please select the correct variant before purchase
- Customization (shaft / connector / wiring) available on request
