Overview
The PM5225 Gimbal Brushless Motor is a compact, high-precision BLDC motor designed for camera stabilizers, robotic joints, and precision motion systems.
It supports optional magnetic encoders (AS5600 / AS5048A) and slip ring configuration, enabling continuous rotation and accurate position feedback for advanced control applications.
With its optimized torque output, smooth operation, and compact form factor, PM5225 is ideal for DSLR gimbals, UAV payloads, and lightweight robotic arms.
Key Features
- High-performance brushless gimbal motor

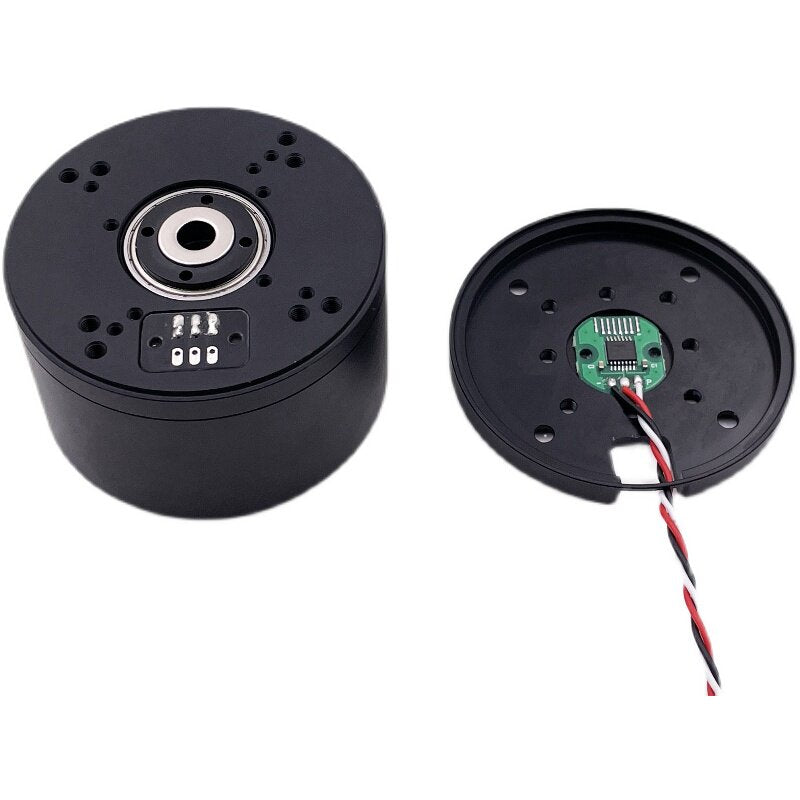

- Optional AS5600 / AS5048A magnetic encoder
- Available slip ring version for continuous rotation
- Compact design with high torque density
- Smooth, low-noise operation for precision control
- Suitable for robot joints & camera stabilization systems
- Easy integration with control systems
Applications
- DSLR Camera Gimbal Stabilizers
- UAV / Drone Payload Systems
- Robotic Joints & Actuators
- Pan-Tilt Systems
- Precision Motion Platforms

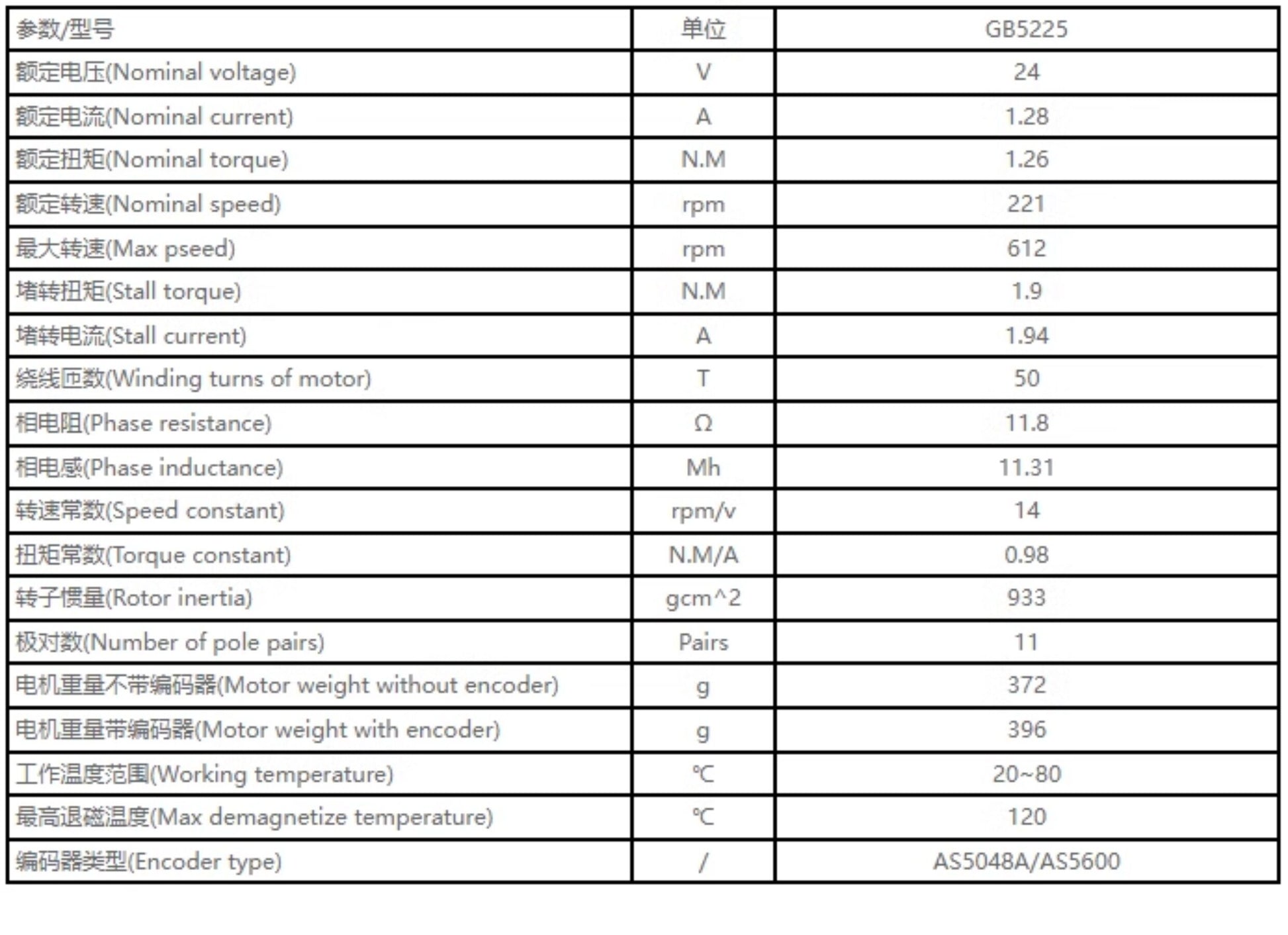

Technical Specifications
| Parameter | Value |
|---|---|
| Model | PM5225 (GBM6025) |
| Nominal Voltage | 24V |
| Nominal Current | 1.28 A |
| Nominal Torque | 1.26 N·m |
| Nominal Speed | 221 rpm |
| Max Speed | 612 rpm |
| Stall Torque | 1.9 N·m |
| Stall Current | 1.94 A |
| Phase Resistance | 11.8 Ω |
| Phase Inductance | 11.31 mH |
| Speed Constant | 14 rpm/V |
| Torque Constant | 0.98 N·m/A |
| Rotor Inertia | 933 g·cm² |
| Pole Pairs | 11 |
| Weight (Without Encoder) | 372 g |
| Weight (With Encoder) | 396 g |
| Working Temperature | 20 ~ 80°C |
| Max Demagnetization Temp | 120°C |
| Encoder Type | AS5048A / AS5600 (Optional) |

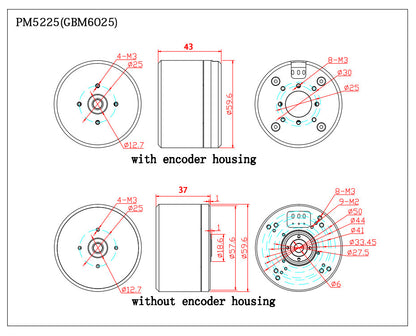

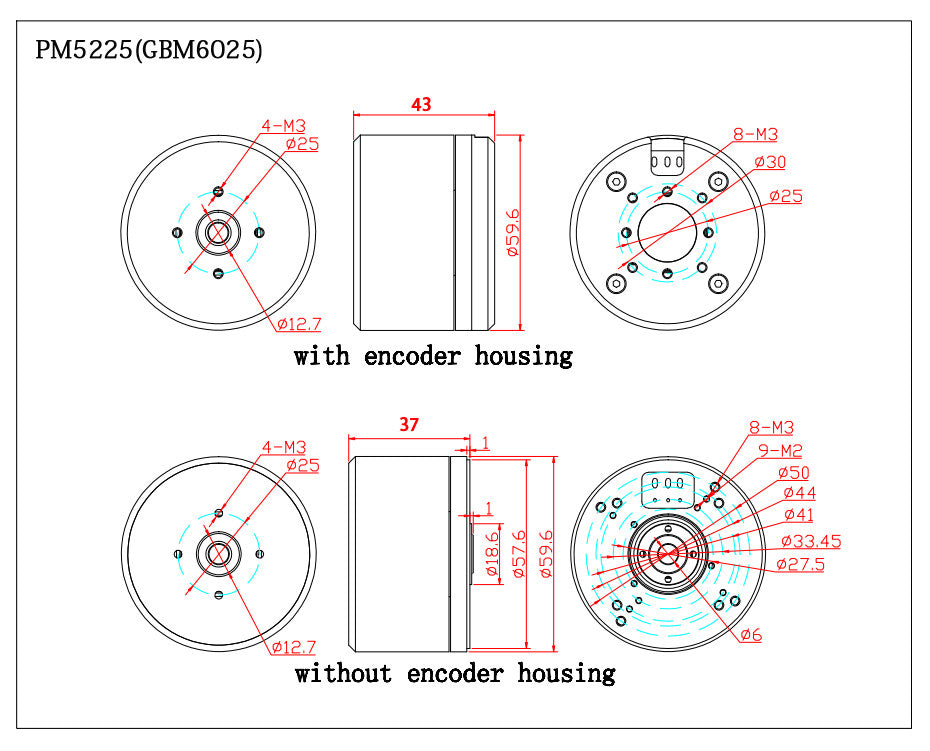

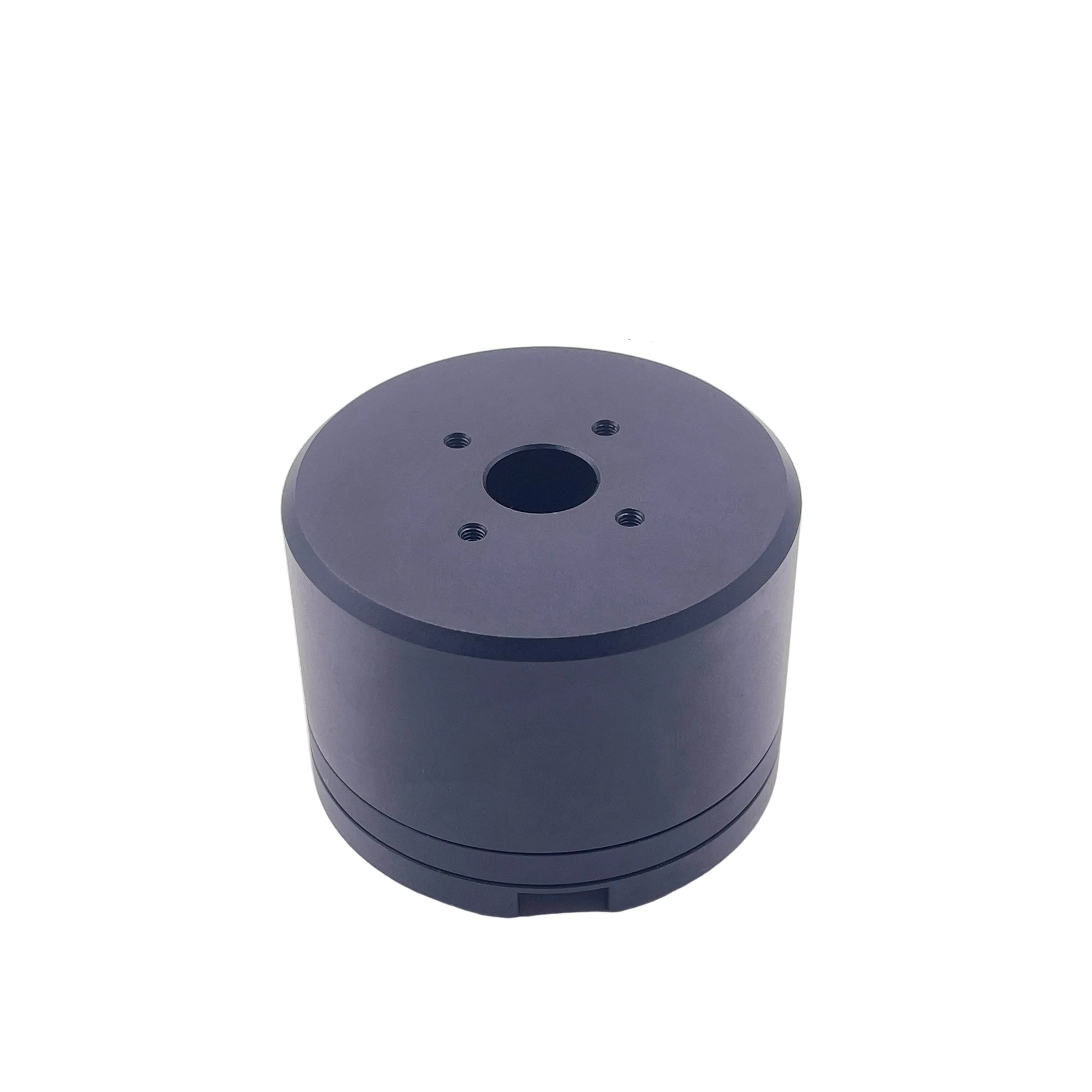

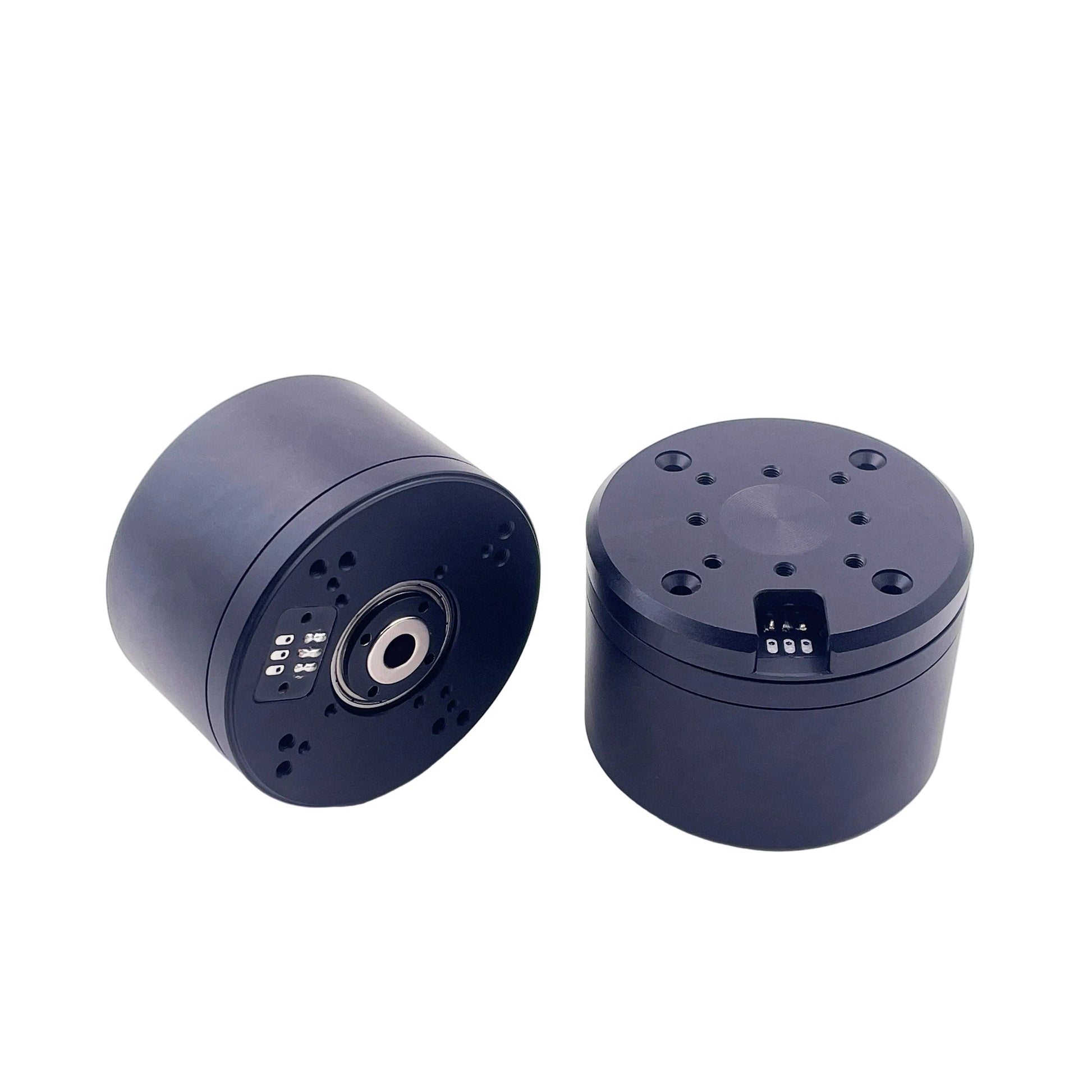

Mechanical Dimensions
- Diameter: ≈ 59 mm
- Length: 37 mm (without encoder housing)
- Length: 43 mm (with encoder housing)
Supports multiple mounting hole configurations for flexible integration.
What’s Included
- 1 × PM5225 Gimbal Motor
- (Optional) Encoder Module
- (Optional) Slip Ring Version
Why Choose PM5225
Compared to traditional motors, PM5225 provides:
- Higher precision positioning (with encoder)
- Continuous rotation capability (slip ring version)
- Lower vibration for imaging systems
- Better torque-to-size ratio
