DESCRIPTION
The 8-channel infrared line tracking sensor module is a high-performance solution designed for robot line following, path detection, and intelligent navigation applications. Equipped with industrial-grade IR sensors and a 32-bit MCU, it delivers stable and precise black/white recognition even under complex lighting conditions.
This module supports both digital and analog output, as well as UART and I2C communication, making it highly flexible for integration into various robotic systems such as AGV robots, educational robot kits, and competition platforms like TI Cup.
With one-key calibration and adaptive line width detection (0.5–6cm), it significantly reduces setup complexity while improving tracking accuracy. Its compact structure and multi-channel design ensure wider coverage and faster response for real-time control.
SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Operating Voltage | 5V |
| Operating Current | 85mA |
| Operating Temperature | -10°C ~ 60°C |

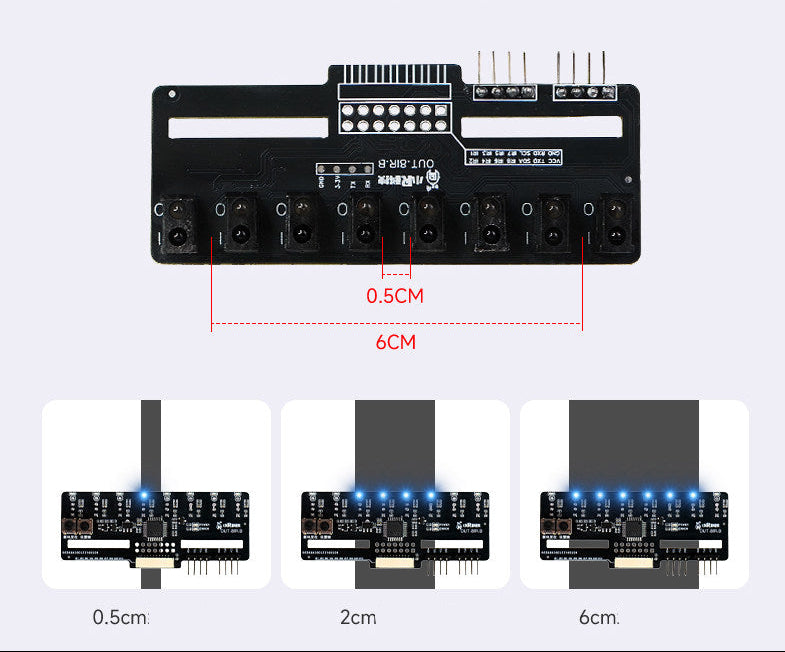

| Detection Line Width | 0.5 ~ 6 cm |
| Detection Height | 5 ~ 60 mm |
| Fixed Detection Distance | 21 ~ 71 mm |
| Number of Channels | 8 Channels |
| Output Signal | Digital + Analog |
| Communication Interface | GPIO / UART / I2C |
| MCU | 32-bit ARM Processor |
| Calibration | One-key Auto Calibration |
| Installation | M2.5 / M3 Mounting Holes |

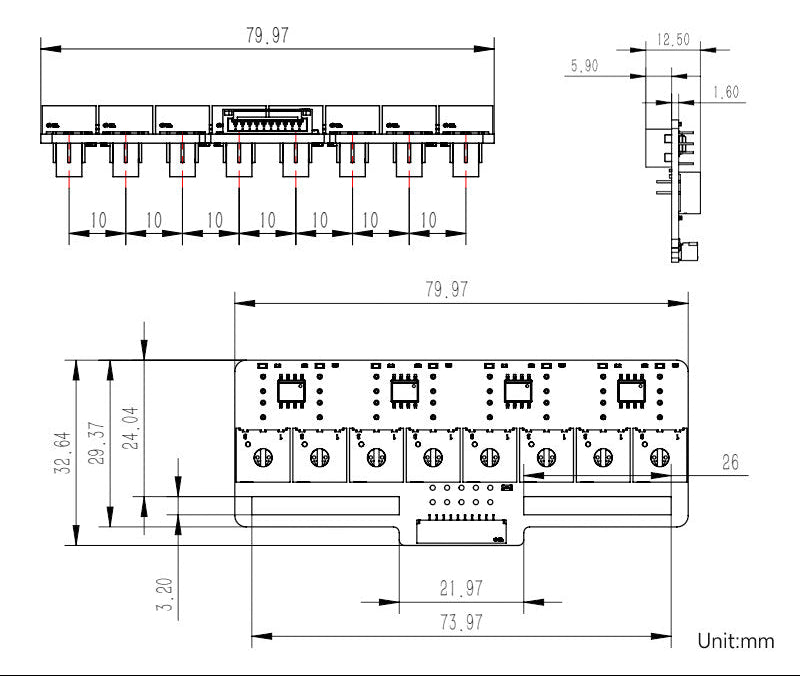

| Dimensions | 80 × 33 × 13 mm |
FEATURES
- 8-channel high-precision IR sensors for accurate line tracking
- Supports digital + analog dual output
- Multi-interface support: GPIO, UART, I2C
- One-key calibration for fast setup
- Wide line detection range: 0.5–6 cm
- Strong anti-interference performance
- Stable detection under different lighting conditions
- Compact design for easy integration
- Suitable for robotics competitions and industrial applications
APPLICATIONS
- Robot line tracking / path following
- AGV navigation systems
- Smart car projects
- Robotics competitions (TI Cup, etc.)
- Industrial automation detection
- Educational STEM development

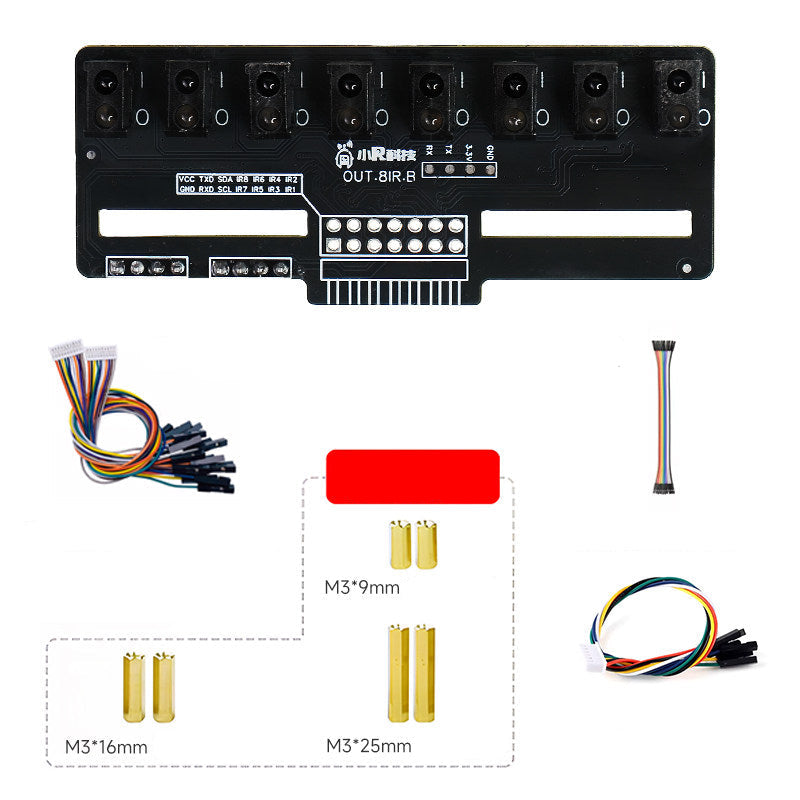

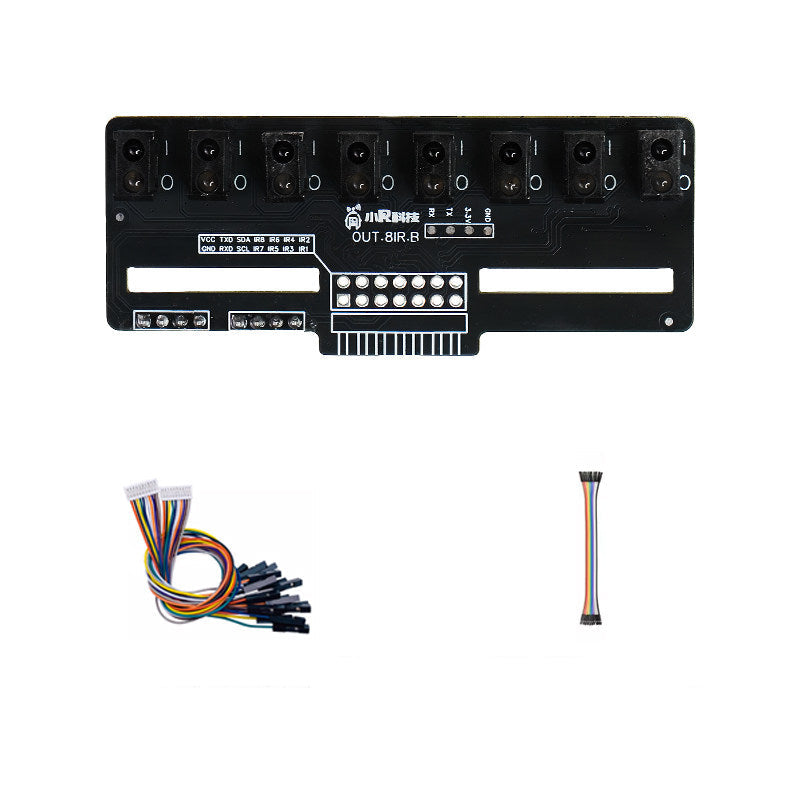

PACKAGE INCLUDES
- 1 × 8-Channel IR Line Tracking Sensor Module
- 1 × GH1.25 Cable
- 1 × Dupont Cable Set
- 1 × Connection Wire
- Mounting copper standoffs (optional depending on variant)
