Description
The DM-S-8015 is a compact hollow-shaft BLDC servo motor with an integrated motor driver and 14-bit single-turn absolute encoder, designed for precision rotary motion, robotics, automated turntables, inspection equipment, and industrial automation systems.
Operating at a nominal 24V with a supported voltage range of 12–40V, the motor provides 1.2 N·m nominal torque and up to 3.7 N·m peak torque. Rated speed is 354 RPM, with a no-load maximum speed of 516 RPM.

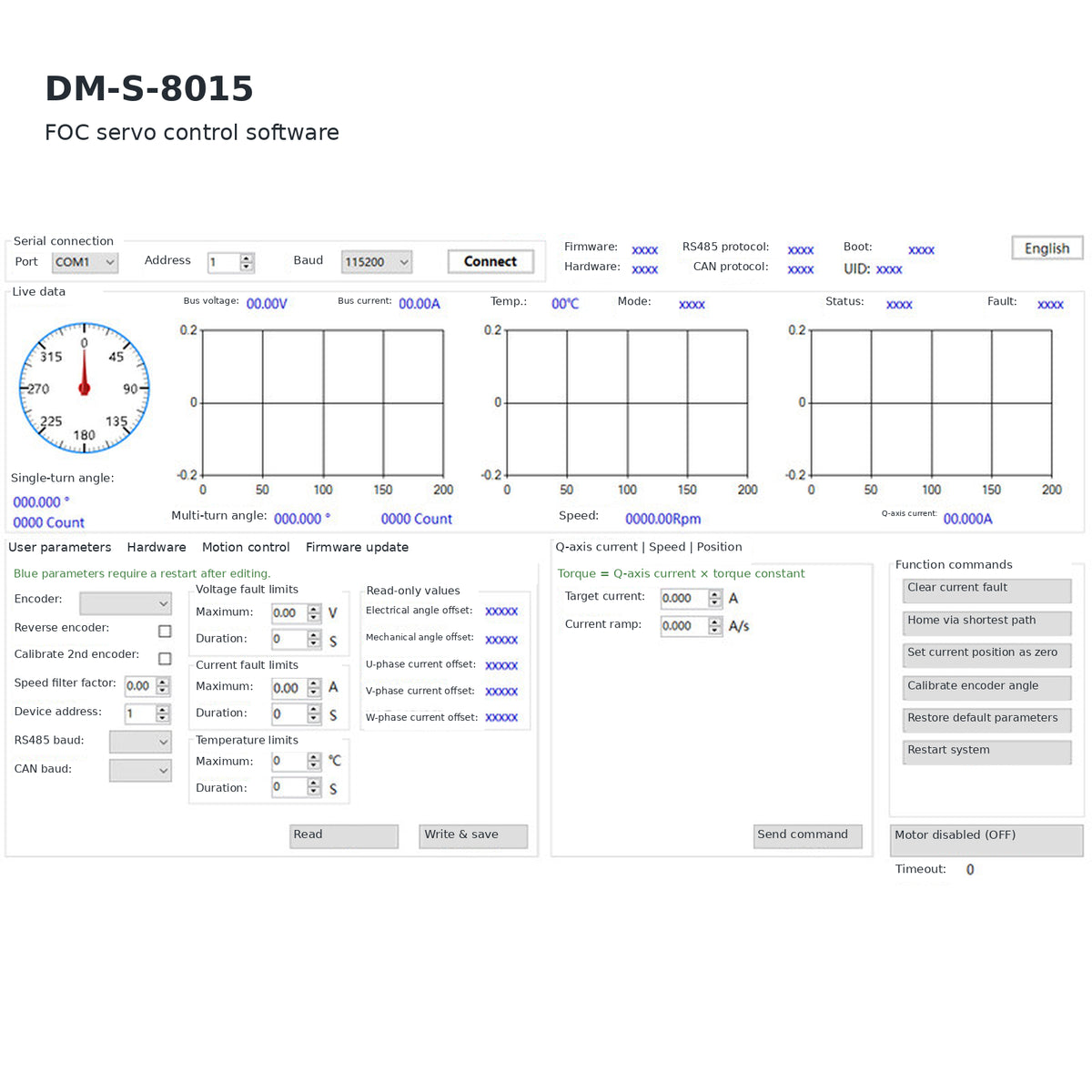

The integrated control system supports both RS485 and CAN communication, reducing the need for an external servo drive and simplifying system integration. The large hollow-center structure also provides additional flexibility for mechanical integration and cable routing.
With its integrated 14-bit absolute encoder, compact Ø79 mm body, and dual communication interfaces, the DM-S-8015 is well suited for applications requiring precise position, speed, and torque control.
Key Features
-
Integrated BLDC servo motor and motor driver
-
24V nominal operating voltage
-
12–40V operating voltage range
-
1.2 N·m nominal torque
-
Up to 3.7 N·m peak torque
-
354 RPM nominal speed
-
Up to 516 RPM no-load speed
-
14-bit single-turn absolute encoder
-
RS485 communication
-
CAN communication
-
Hollow-center motor structure
-
Compact Ø79 mm body
-
Suitable for precision rotary and automation applications
-
Operating temperature from -20°C to 80°C
Specifications

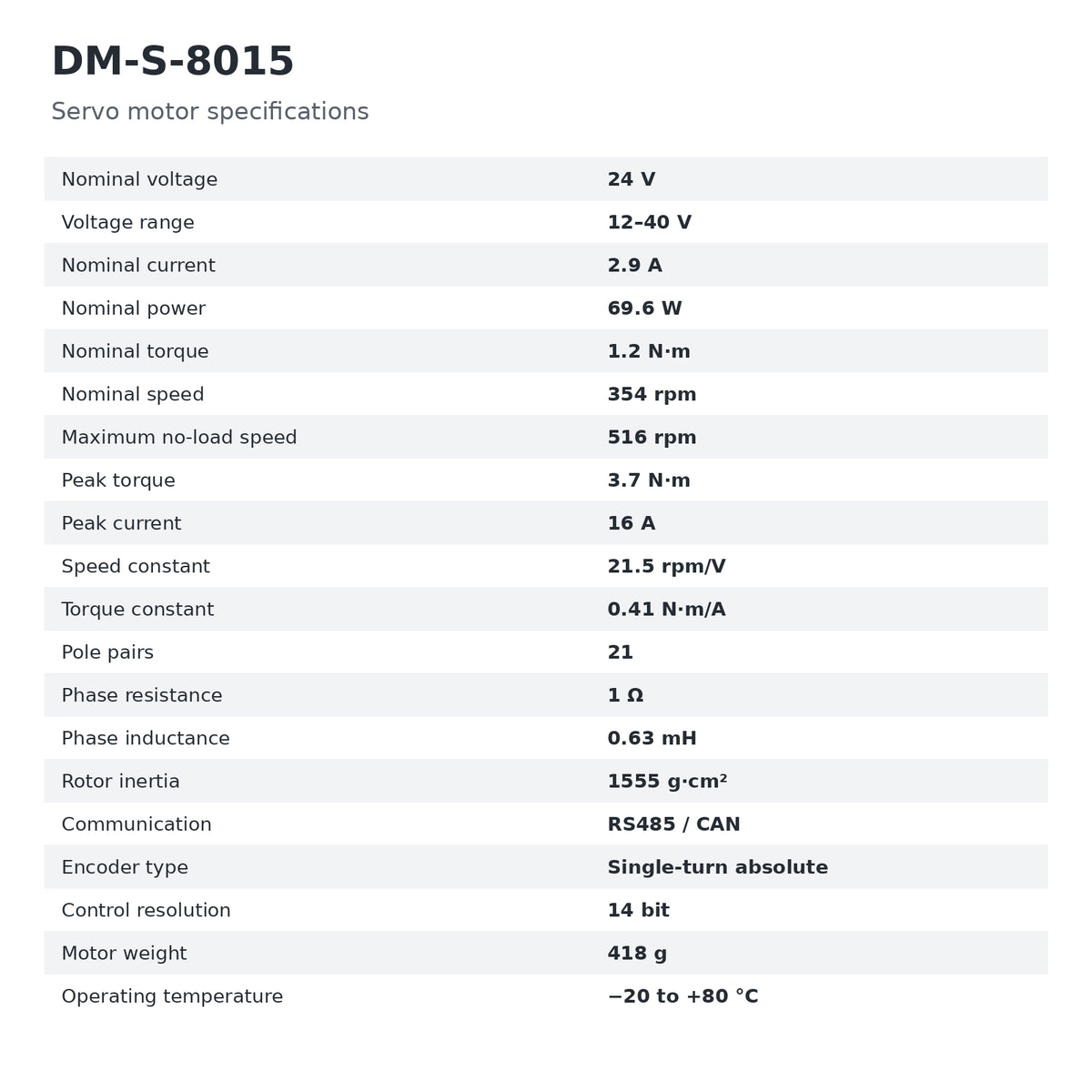

| Specification | Value |
|---|---|
| Model | DM-S-8015 |
| Motor Type | BLDC Servo Motor |
| Nominal Voltage | 24V |
| Voltage Range | 12–40V |
| Nominal Current | 2.9A |
| Nominal Power | 69.6W |
| Nominal Torque | 1.2 N·m |
| Nominal Speed | 354 RPM |
| No-Load Max Speed | 516 RPM |
| Peak Torque | 3.7 N·m |
| Peak Current | 16A |
| Speed Constant | 21.5 rpm/V |
| Torque Constant | 0.41 N·m/A |
| Phase Resistance | 1 Ω |
| Phase Inductance | 0.63 mH |
| Rotor Inertia | 1555 g·cm² |
| Number of Pole Pairs | 21 |
| Communication | RS485 / CAN |
| Encoder Type | Single-Turn Absolute Encoder |
| Encoder Resolution | 14-bit |
| Motor Weight | 418 g |
| Working Temperature | -20°C to 80°C |
Dimensions & Interface
| Item | Specification |
|---|---|
| Motor Outer Diameter | Ø79 ±0.1 mm |
| Motor Body Length | 36 ±0.1 mm |
| Stator Section | 13.9 mm |
| Rotor Section | 21.3 mm |
| Front Mounting Pattern | Ø48 mm |
| Front Mounting Holes | 4 × M4, depth 4.5 mm |
| Rear Mounting Pattern | Ø70 mm |
| Rear Mounting Holes | 4 × M4, depth 4.5 mm |
| Additional Rear Mounting Pattern | Ø36 mm |
| Additional Rear Holes | 8 × M5 |

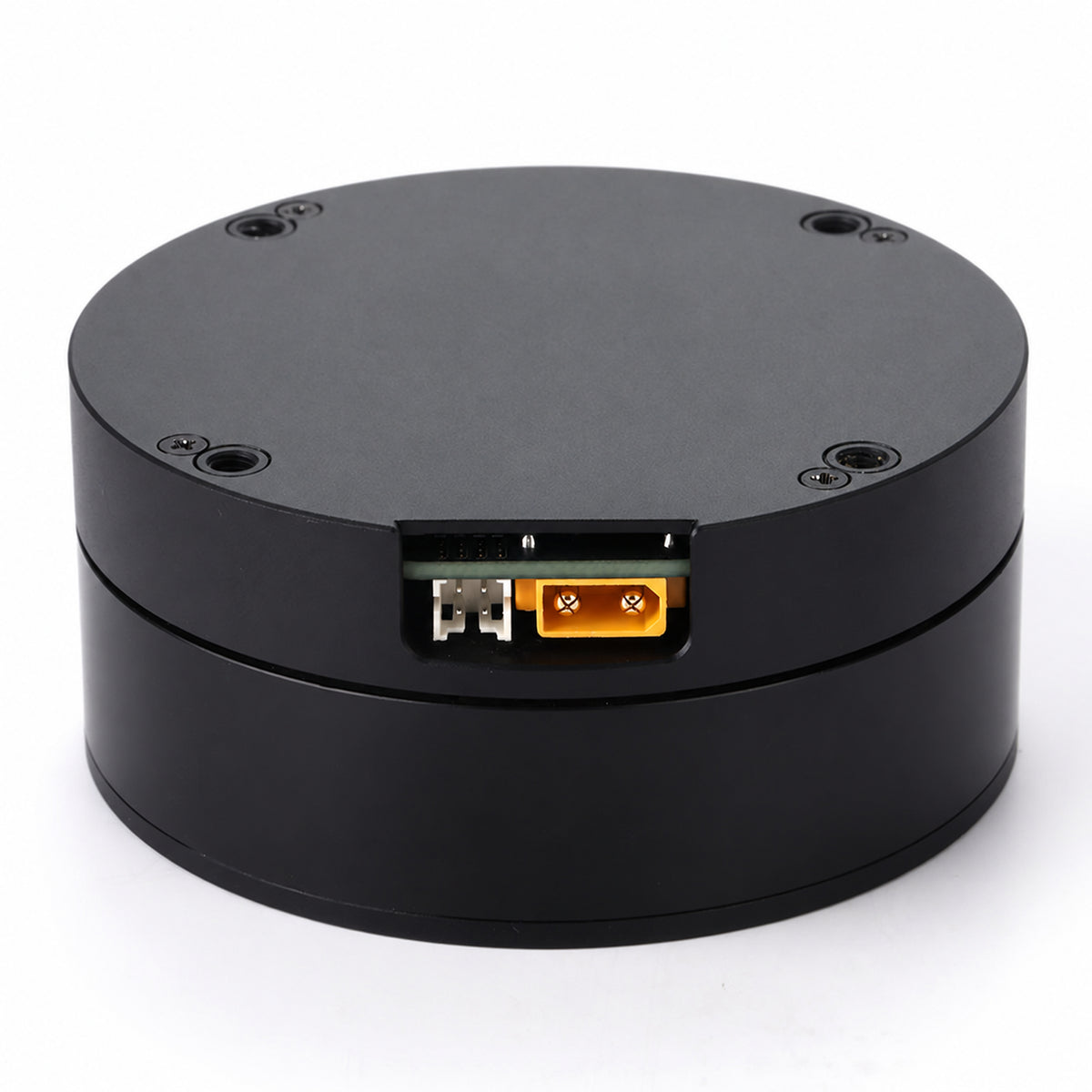

| Power Connector | XT30 |
| Communication | CAN / RS485 |

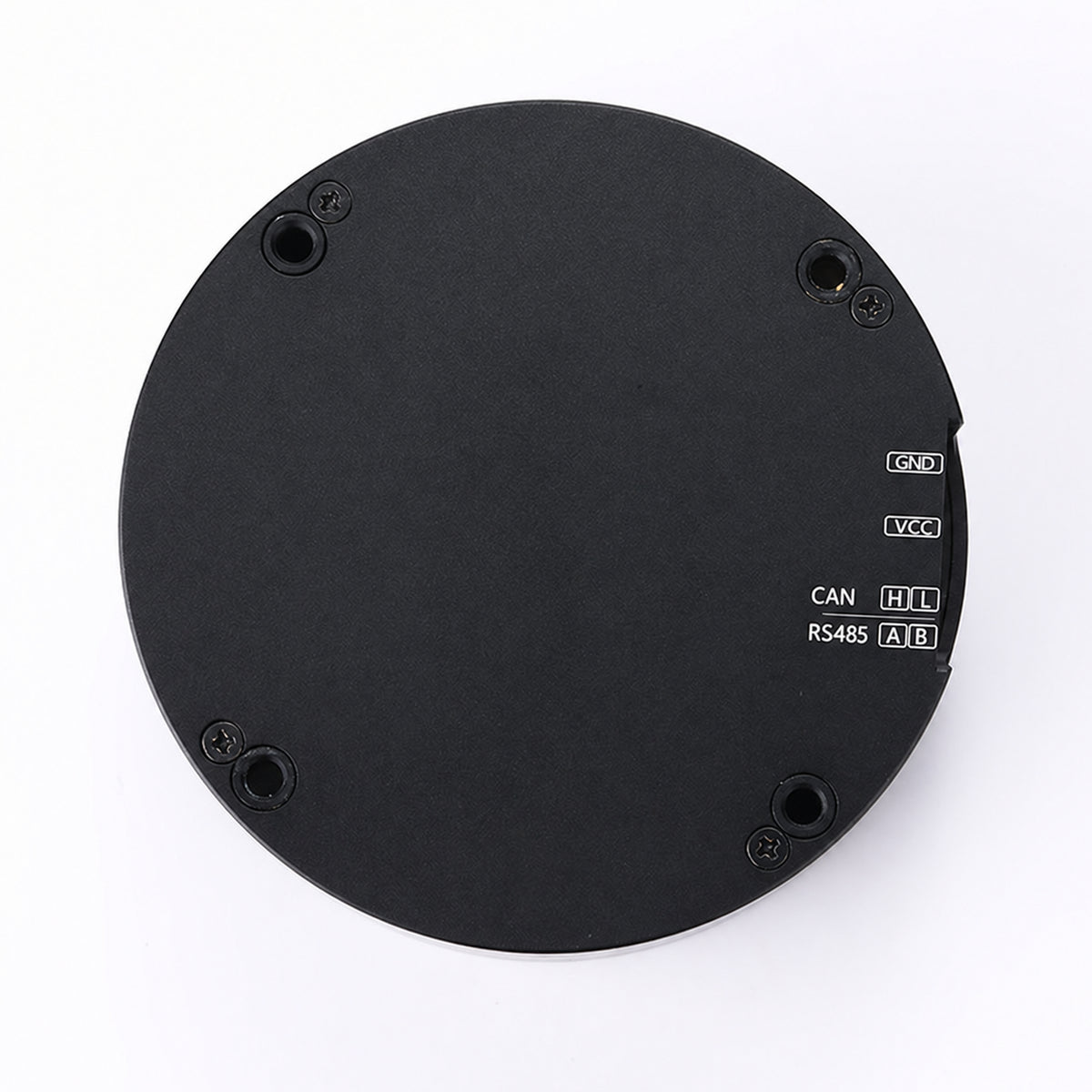

Interface Labels
Power
-
GND
-
VCC
CAN
-
CAN_H
-
CAN_L
RS485
-
485_A
-
485_B
Applications
-
Precision motorized turntables
-
Robotic rotary joints
-
Automation equipment
-
Pan-tilt positioning systems
-
Inspection equipment
-
Optical positioning systems
-
Rotary platforms
-
Laboratory automation
-
Industrial positioning systems
-
Custom robotics projects
Package Includes
-
1 × DM-S-8015 BLDC Servo Motor
-
Integrated Driver
-
Integrated 14-bit Absolute Encoder
FAQ
Does the DM-S-8015 include a motor driver?
Yes. The product is an integrated servo motor system with a built-in driver.
Does it support both RS485 and CAN?

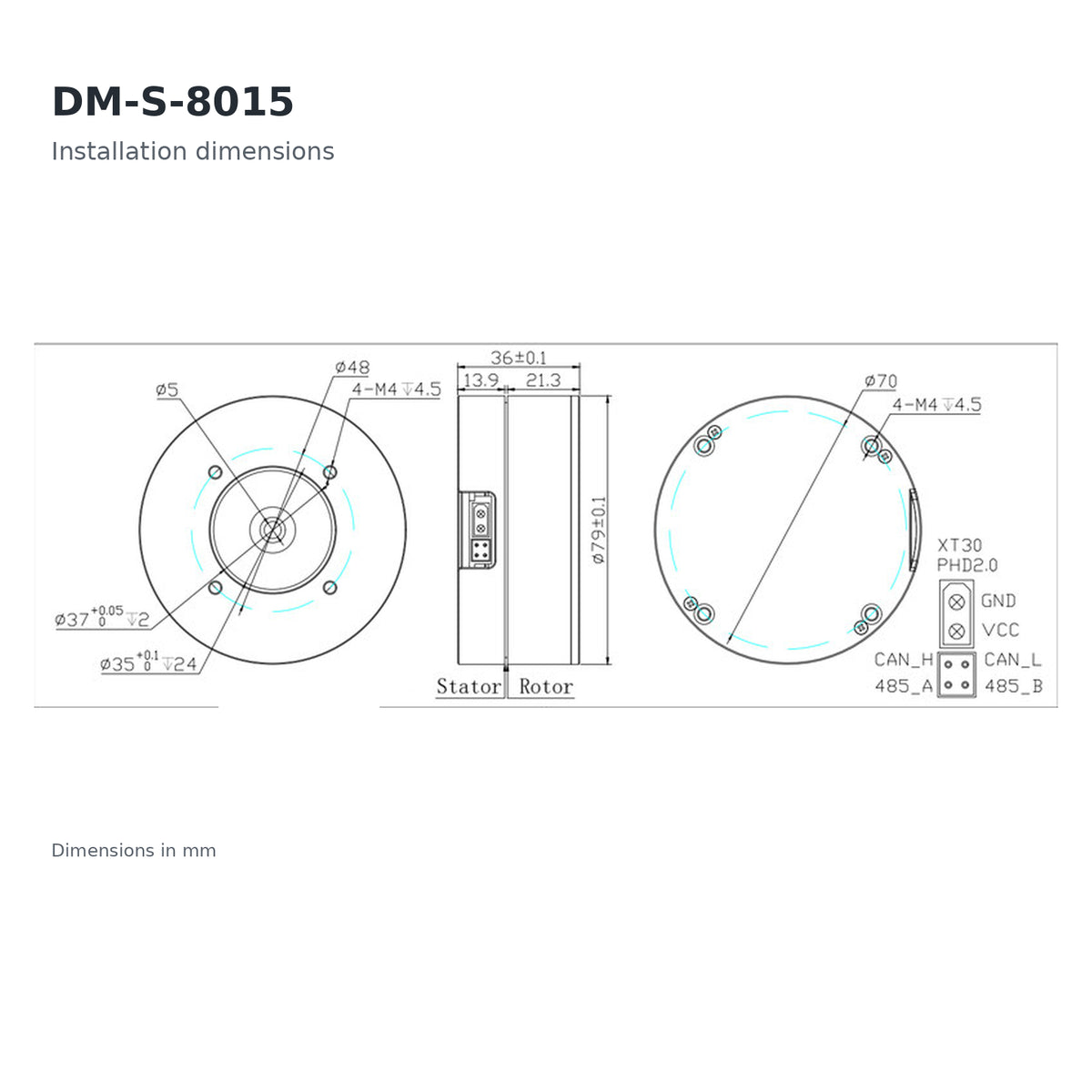

Yes. The supplied specification lists communication as RS485 / CAN, and the motor interface drawing shows separate CAN and RS485 connections.
Does the motor include an encoder?
Yes. It uses a 14-bit single-turn absolute encoder.
What is the nominal operating voltage?
The nominal voltage is 24V, with a specified operating voltage range of 12–40V.
What is the maximum torque?
Peak torque is 3.7 N·m, while nominal torque is 1.2 N·m.
What is the rated speed?
Nominal speed is 354 RPM, with a specified no-load maximum speed of 516 RPM.
Is this a hollow-shaft motor?

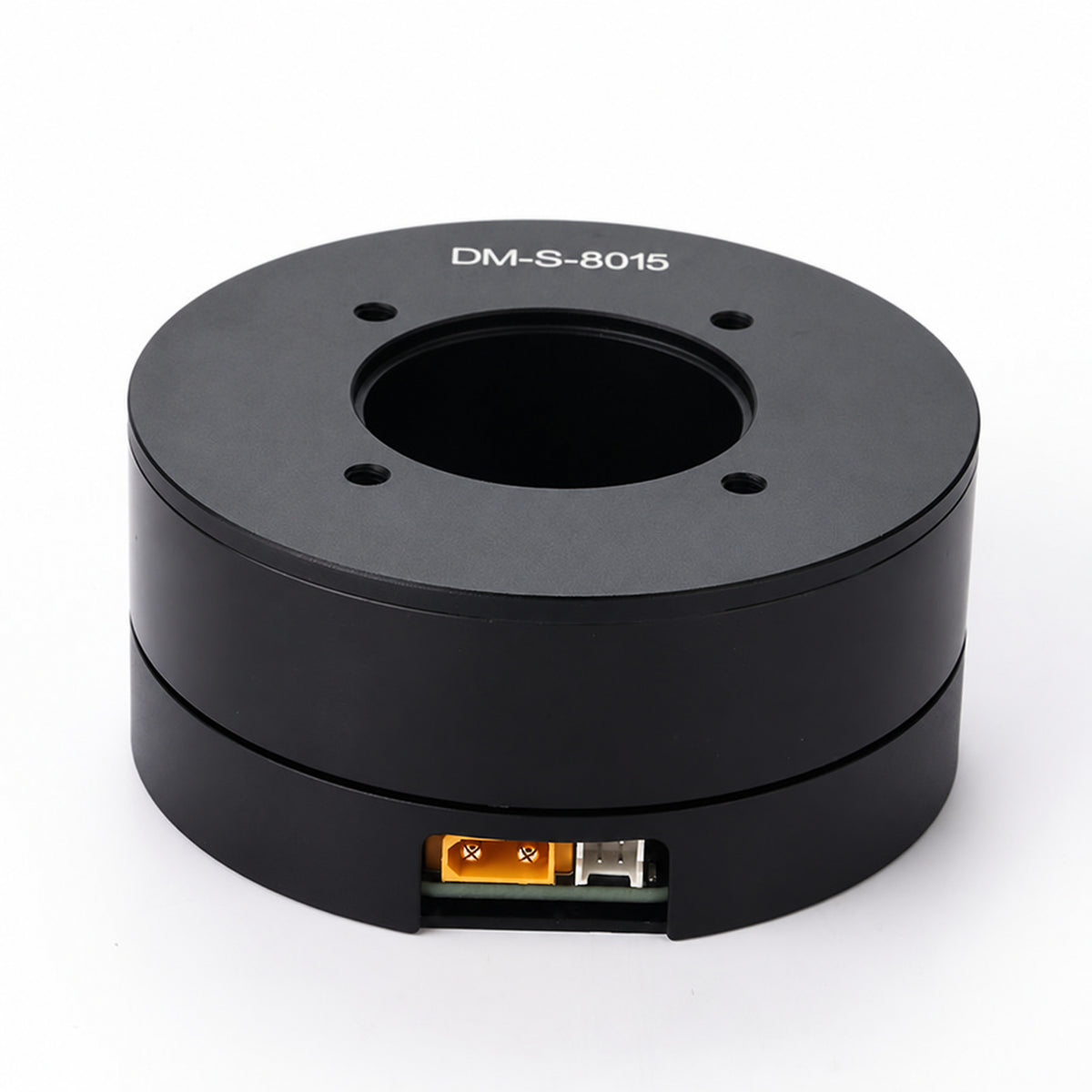

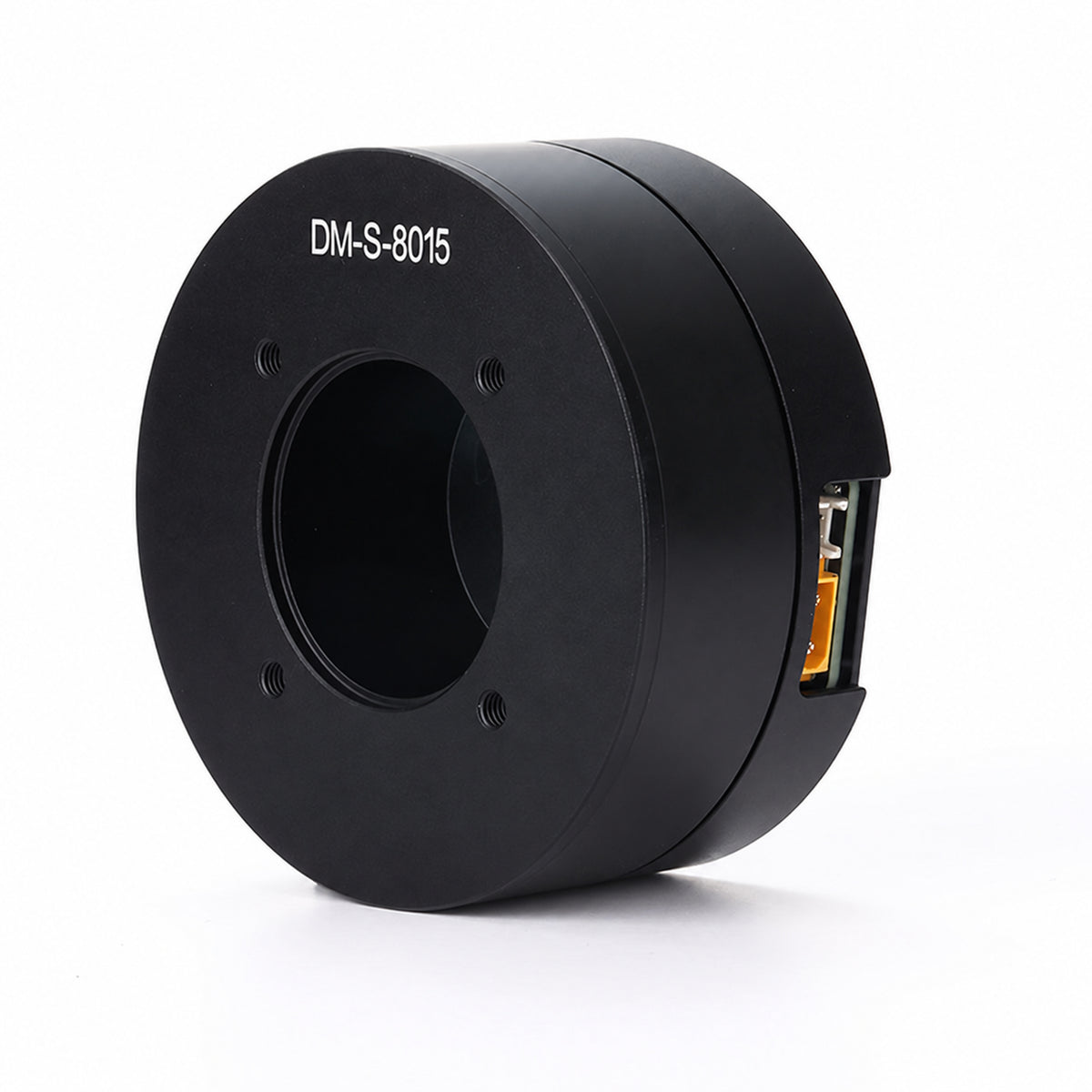

The supplied product photos and mechanical drawing show a large central opening suitable for through-axis mechanical integration and cable routing.
