Product Description

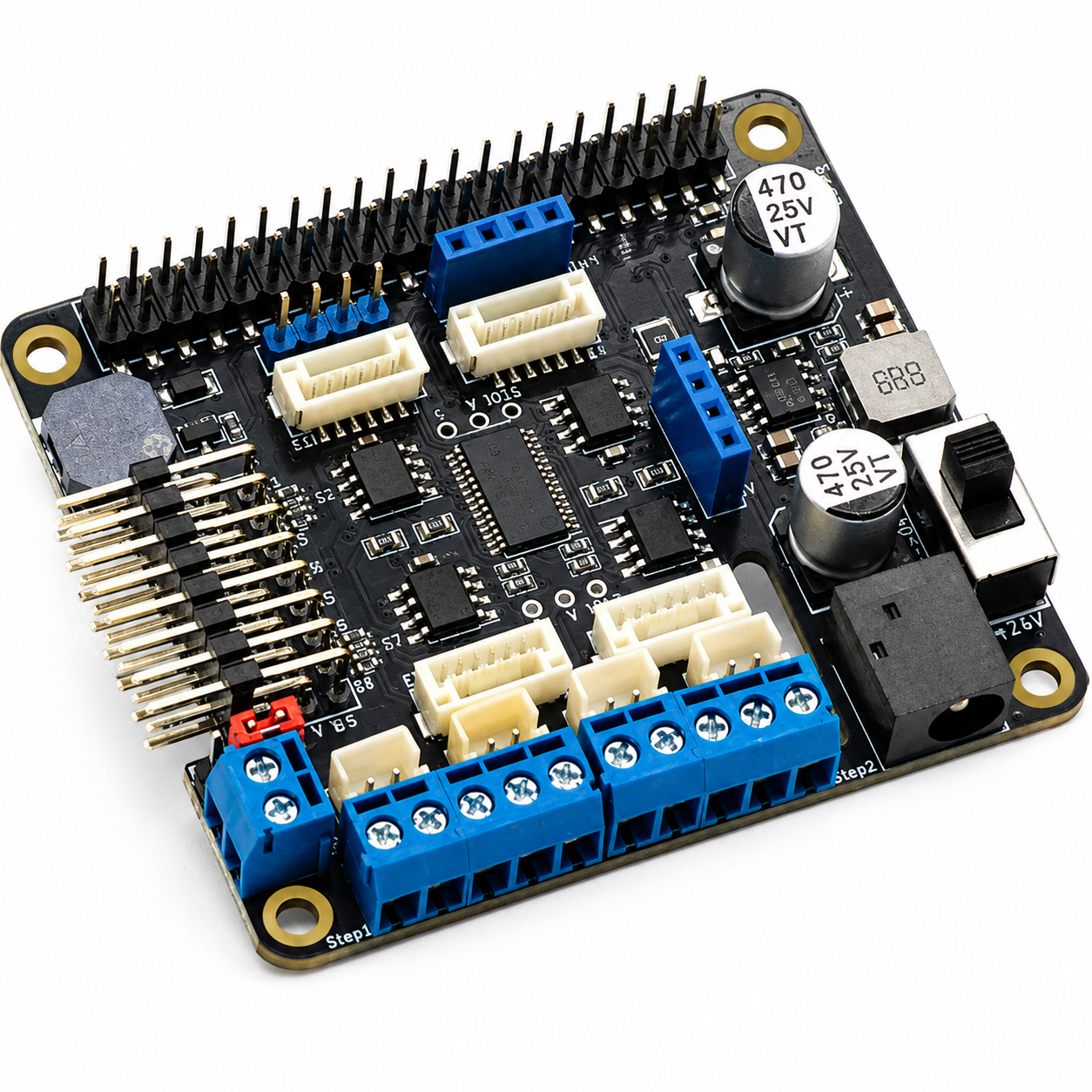

The Raspberry Pi Multi-Function Motor Driver Control Board is an integrated robotics motor control solution designed for Raspberry Pi development platforms including Raspberry Pi 4B, 3B+, 3B, 2B, Zero, Zero W, and Zero WH.
This control board supports simultaneous control of DC motors, stepper motors, servos, and encoder motors, making it ideal for robotics development, smart vehicles, robotic arms, AI systems, automation projects, and educational robotics applications.
The board uses an I2C communication interface and supports both 3.3V and 5V logic levels for compatibility with Raspberry Pi and other embedded development systems. Integrated camera and DIP display ribbon cable interfaces provide additional flexibility for robotics vision and display projects.
Designed for multi-motor robotics applications, the board supports multi-layer stacking for expanded control capability and flexible robotics system integration.
Key Features
- Raspberry Pi motor driver control board for robotics applications
- Compatible with Raspberry Pi 4B / 3B+ / 3B / 2B / Zero series
- Supports DC motors, stepper motors, servos, and encoder motors
- Simultaneous multi-motor control support
- I2C communication interface
- Compatible with 3.3V and 5V logic systems
- Supports stackable expansion applications
- Integrated camera ribbon cable interface
- Integrated DIP display ribbon cable interface
- Suitable for robot cars, robotic arms, and DIY robotics projects

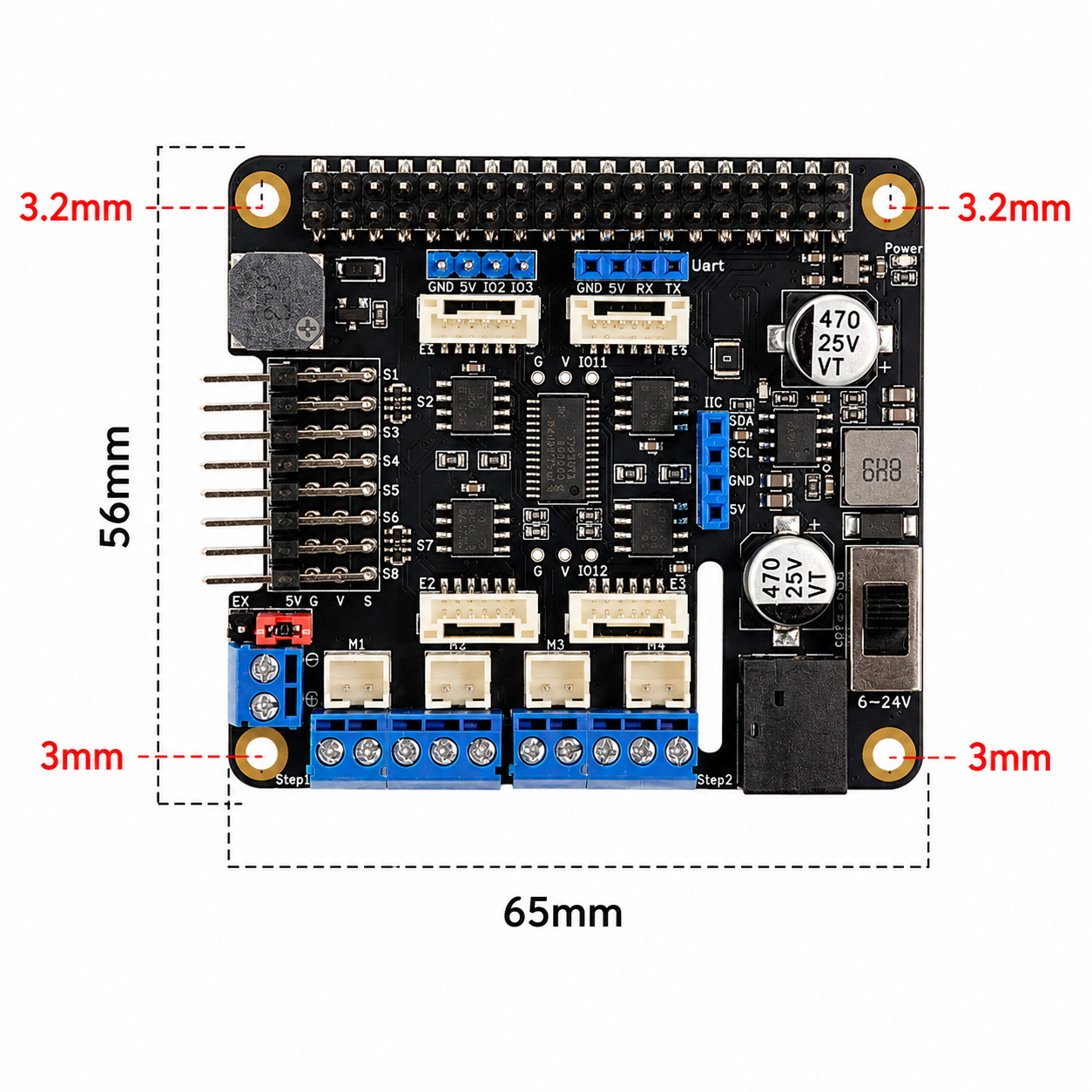

Specifications
| Parameter | Specification |
|---|---|
| Product Type | Raspberry Pi Motor Driver Control Board |
| Compatible Boards | Raspberry Pi 2B / 3B / 3B+ / 4B / Zero / Zero W / Zero WH |
| Communication Interfaces | I2C, SPI, UART |
| Logic Level Support | 3.3V / 5V |
| Input Voltage | DC 6V–25V |
| Maximum Current | 3A |
| Power Input | DC Jack / Terminal Block |
| Weight | Approx. 34g |
| Servo Interface | 3Pin GVS Standard Interface |
| DC Motor Channels | 4 Channels |
| Stepper Motor Channels | 2 Channels |
| Servo Support | Up to 8 Servos |
| Motor Connector Types | PH2.0 / 3.5mm Terminal Block |
Product Features

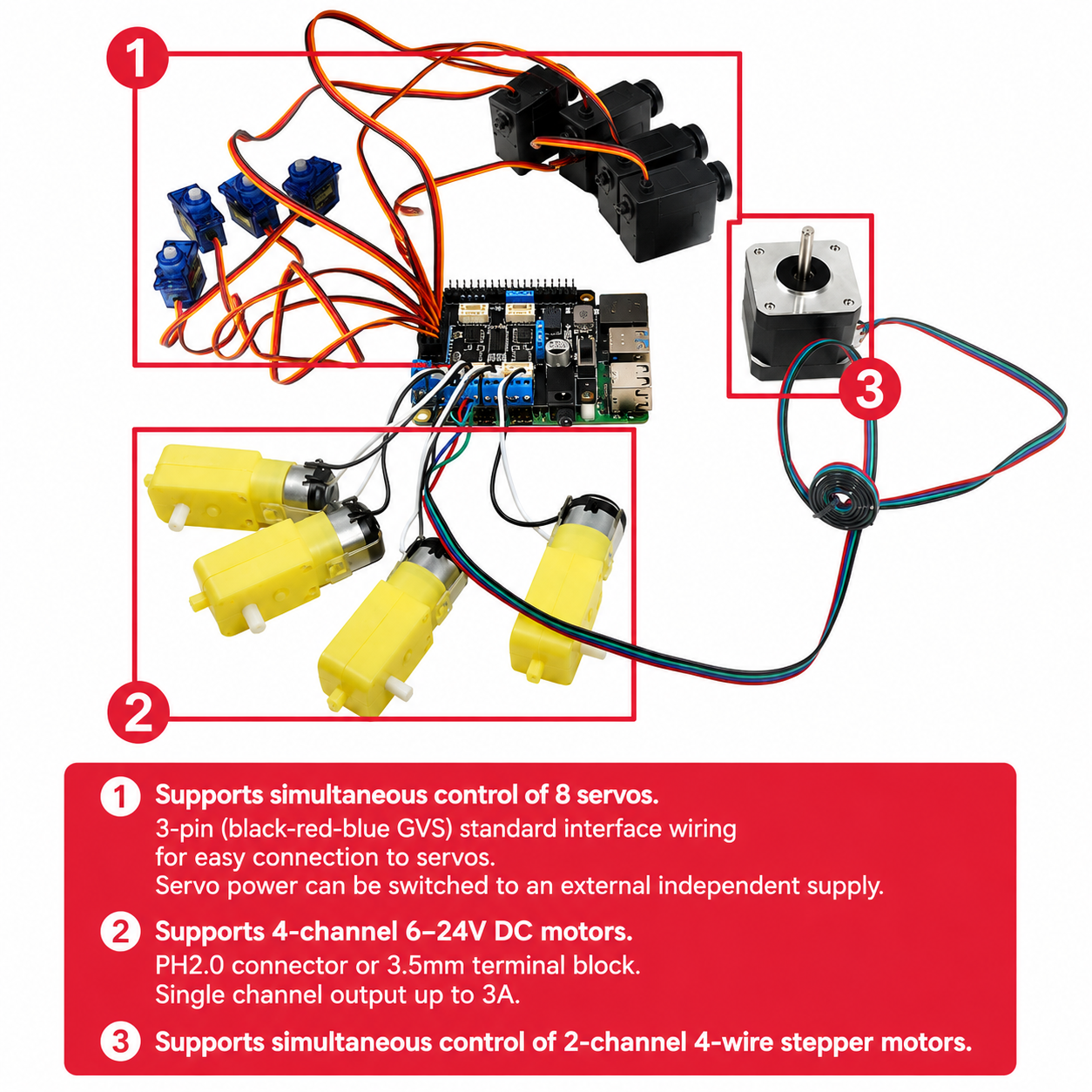

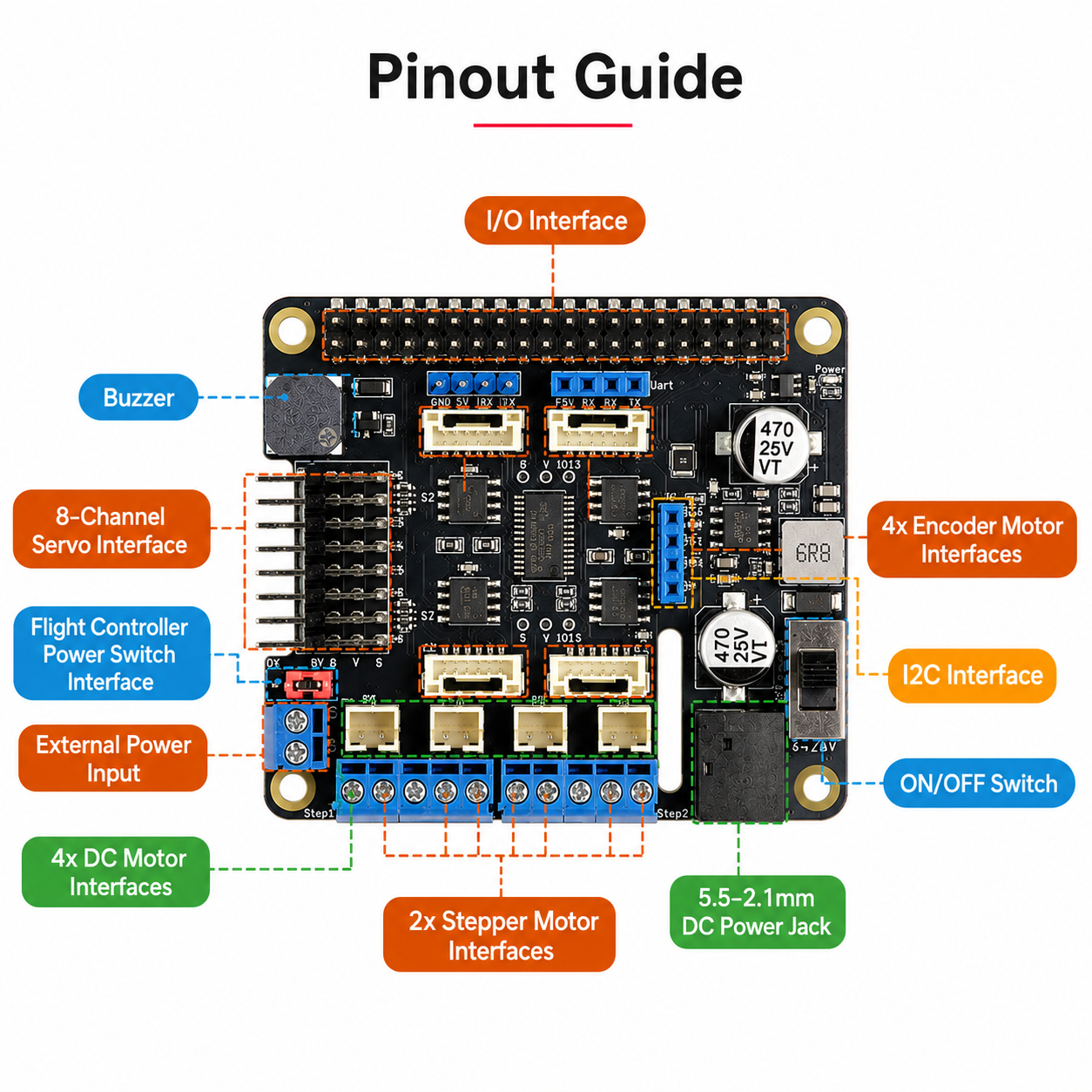

Servo Motor Control
- Supports simultaneous control of up to 8 servos
- Standard 3Pin GVS servo interfaces
- Servo power supports external independent power supply switching
DC Motor Driver Function
- Supports 4-channel DC motor control
- Compatible with 6V–24V DC motors
- Supports PH2.0 and 3.5mm terminal block motor interfaces
- Single motor channel output current up to 3A
Stepper Motor Support
- Supports simultaneous control of 2 four-wire stepper motors
Multi-Motor Robotics Control
- Supports simultaneous operation of DC motors, stepper motors, servos, and encoder motors
- Suitable for robotic motion control applications

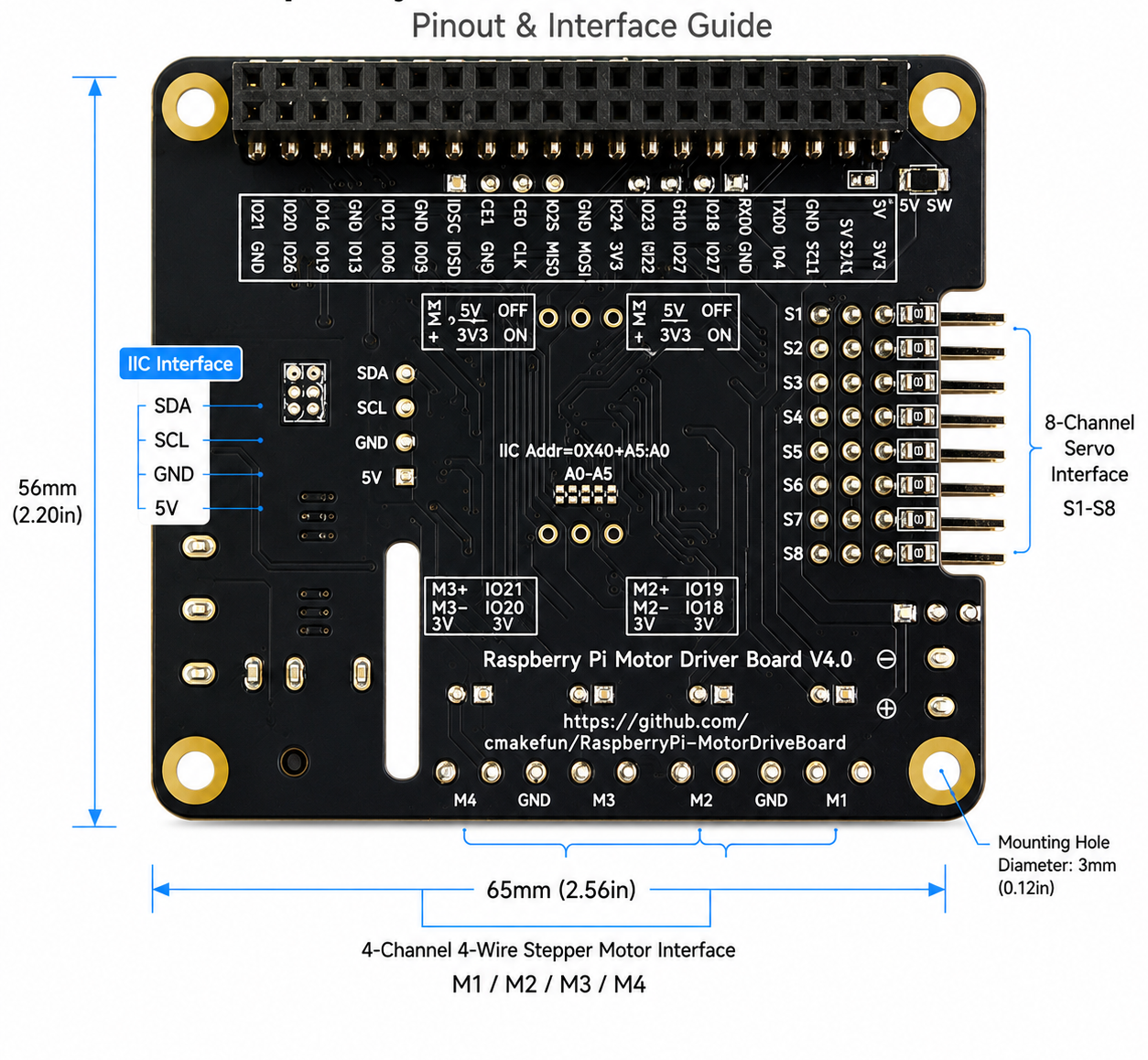

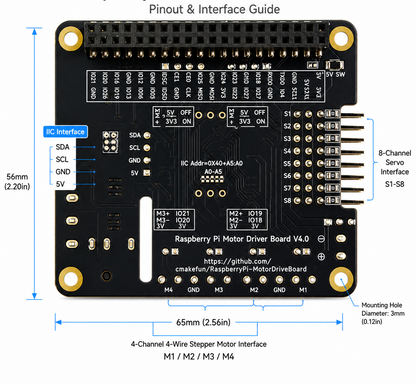

Communication & Compatibility
- Uses I2C communication interface
- Compatible with Raspberry Pi systems and similar development boards
- Supports 3.3V and 5V logic levels
- Includes camera and DIP display ribbon cable interfaces
Typical Applications
- Raspberry Pi robot projects
- Smart robot cars
- Robotic arms
- AI robotics systems
- DIY robotics development
- Educational STEM robotics
- Servo motor control systems
- Stepper motor projects
- Embedded automation systems
- Robotics research platforms
Package Includes
- 1 × Raspberry Pi Multi-Function Motor Driver Control Board
Important Notes
- Raspberry Pi board is not included
- Input voltage range: DC 6V–25V
- Ensure motor voltage compatibility before use
- Suitable for robotics development and educational applications
