Overview

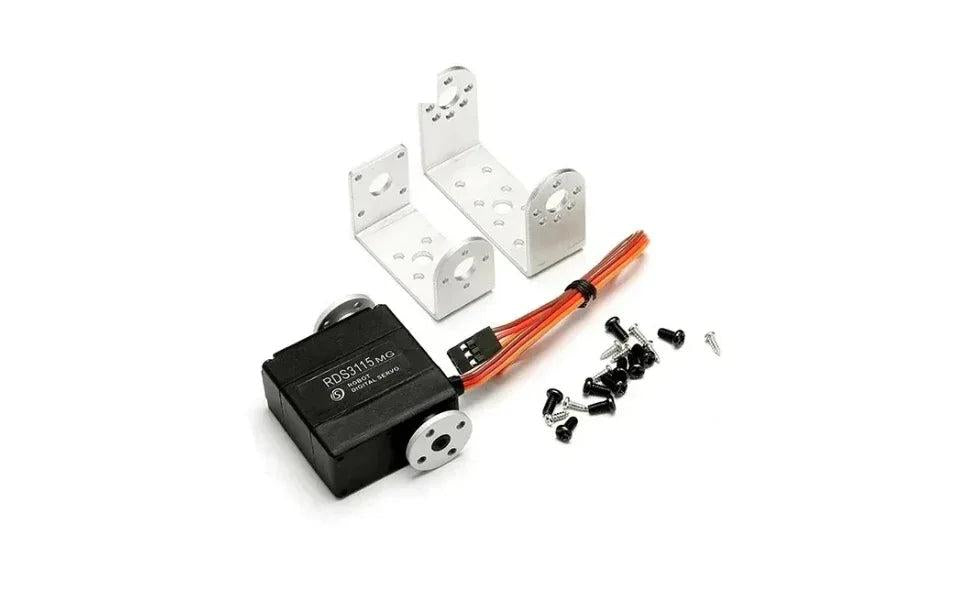

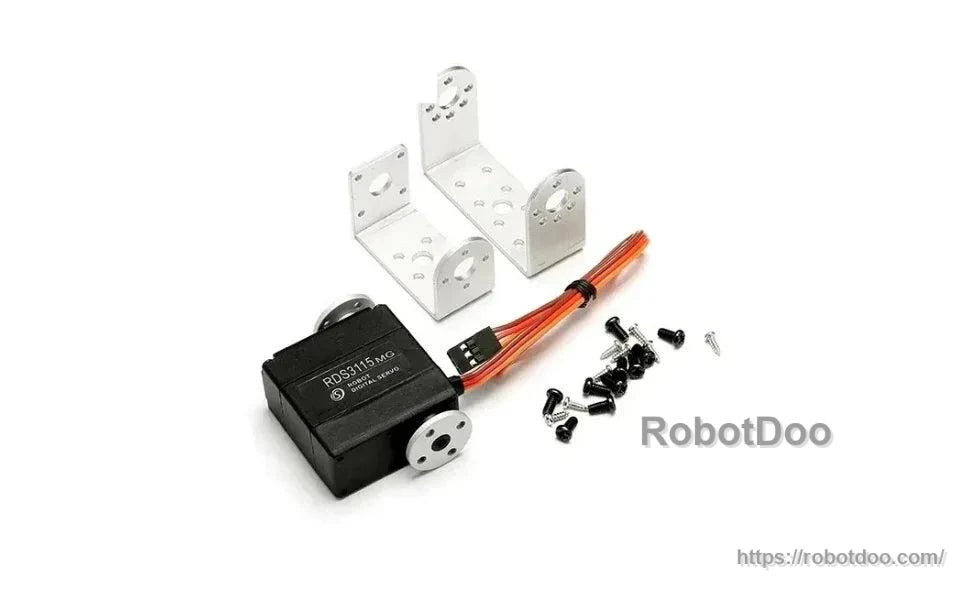

The RDS3115 Servo Motor is a digital servo motor with durable metal gears, dual ball bearings, and a programmable digital amplifier with MOSFET drive. It provides 15 kg.cm torque at 5V for robotics and RC projects requiring a compact, metal-geared actuator.
Key Features
- Durable metal gear train
- Dual ball bearing design
- Programmable digital amplifier with MOSFET drive
- Bottom-side axial mounting hole
- Low-noise operation
Specifications
| Model | RDS3115 |
| Product type | Digital servo motor |
| Operating voltage | 4.8V-6.8V |
| Torque | 15 kg.cm at 5V |
| Speed | 0.16 sec/60° at 5V |
| Servo dimensions | 40 x 20 x 40.5 mm |
| Metal bracket assembly dimensions | 64 x 55.6 x 20 mm |
| Weight | 60 g |
| Wire length | 320 mm |
| Dead zone setting | 3 microseconds |
Applications
Suitable for robotics mechanisms and RC projects that require a compact digital servo motor with metal gears.
For product assistance, contact RobotDoo.
