Overview
The RDS5160 servo motor is designed for PWM position control in radio control systems and other compatible motion applications. It features a metal gearbox, double ball bearings, a programmable digital amplifier with MOSFET drive, and a bottom axial mounting hole. The servo supports 6-8.4 V operation and 180 or 270 degree running levels.
For product support, contact robotdoo.com.
Key Features
- Durable metal gearbox
- Double ball bearings
- Programmable digital amplifier with MOSFET drive
- Bottom axial mounting hole
- PWM control with 500-2500 usec pulse width range
- 180 or 270 degree running level
- 360 degree mechanical angle
- Compatible with Futaba, JR, and Hitec radio control systems
Specifications
Environmental Conditions
| Storage temperature |
-30°C to 80°C |
| Operating temperature |
-15°C to 70°C |
| Operating voltage |
6-8.4 V |
Mechanical
| Size |
65 x 30 x 48 mm |
| Weight |
163 g |
| Transmission ratio |
279 |
| Bearing |
Double bearing |
| Connecting wire |
300 +/- 5 mm |
| Motor |
3-pole |
| Mechanical angle |
360 degrees |
Electrical Performance
| No-load current at standstill |
4 mA at 6 V; 5 mA at 7.4 V; 6 mA at 8.4 V |
| No-load operating speed |
0.17 sec/60 deg at 6 V; 0.15 sec/60 deg at 7.4 V; 0.13 sec/60 deg at 8.4 V |
| Stop torque |
58 kg.cm at 6 V; 65 kg.cm at 7.4 V; 70 kg.cm at 8.4 V |
Control
| Control signal |
PWM |
| Pulse width range |
500-2500 usec |
| Neutral position |
1500 usec |
| Running level |
180 or 270 degrees |
| Dead zone width |
3 usec |
| Operating frequency |
50-330 Hz |
| Rotation direction |
Counter-clockwise at 500-2500 usec |

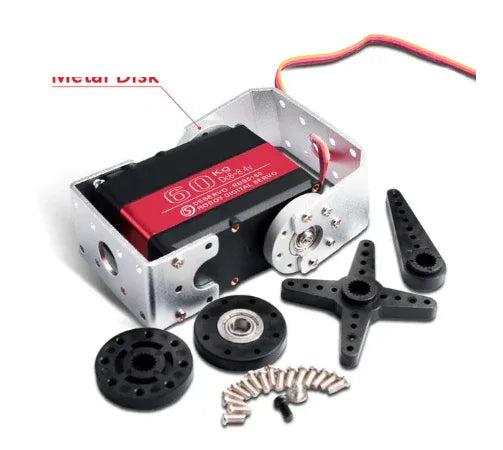

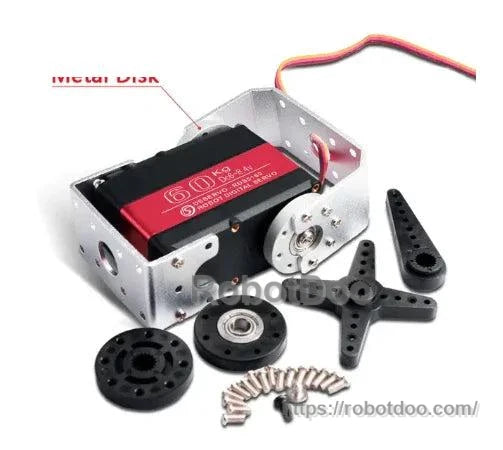

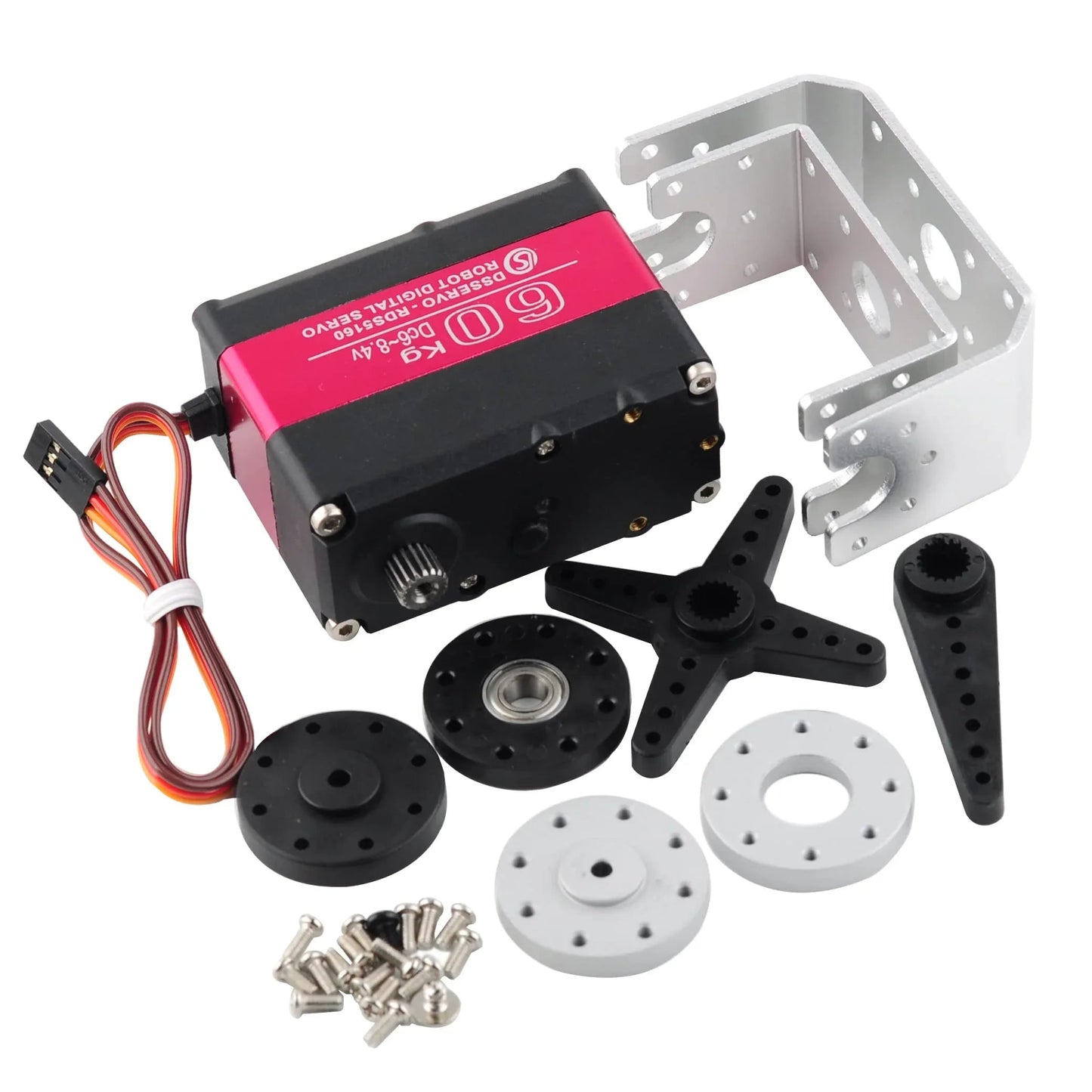

What's Included
- Long aluminium bracket
- Short aluminium bracket
- 18T circle holder
- Circle holder for the selected orientation angle
