Product Description

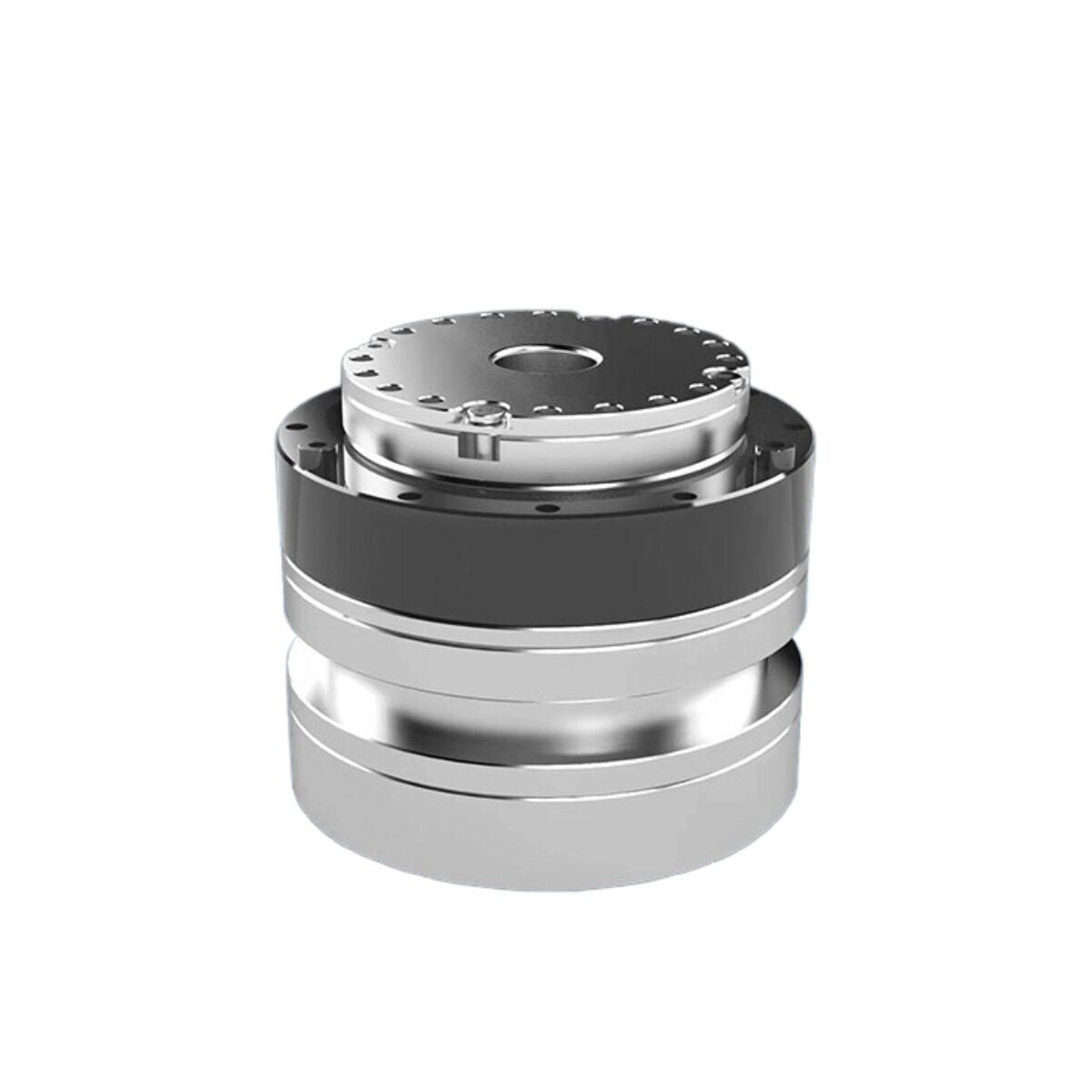

The RI50-70 is a compact hollow shaft harmonic drive robot joint actuator designed for robotic arms, articulated robots, humanoid robotics, and compact motion-control systems.
It integrates a brushless motor, harmonic drive reducer, encoder feedback, and hollow-shaft structure into a compact joint module, reducing the complexity of separately integrating the motor, gearbox, and feedback components.
The hollow-shaft architecture provides internal space for cable and wiring routing through the joint, helping simplify mechanical integration in compact robotic arms and articulated mechanisms.
The RI50-70 is available with CAN or EtherCAT communication, single or dual encoder feedback, and optional brake configurations for different robotic control requirements.
Key Features
- Compact integrated robot joint actuator
- Brushless motor with harmonic drive reducer
- Hollow-shaft structure for internal cable routing
- Integrated motor, reducer, and feedback design
- CAN communication option
- EtherCAT communication option
- Single or dual encoder configurations
- With-brake or without-brake options
- Designed for compact robotic joints
- Suitable for robotic arms and articulated robots

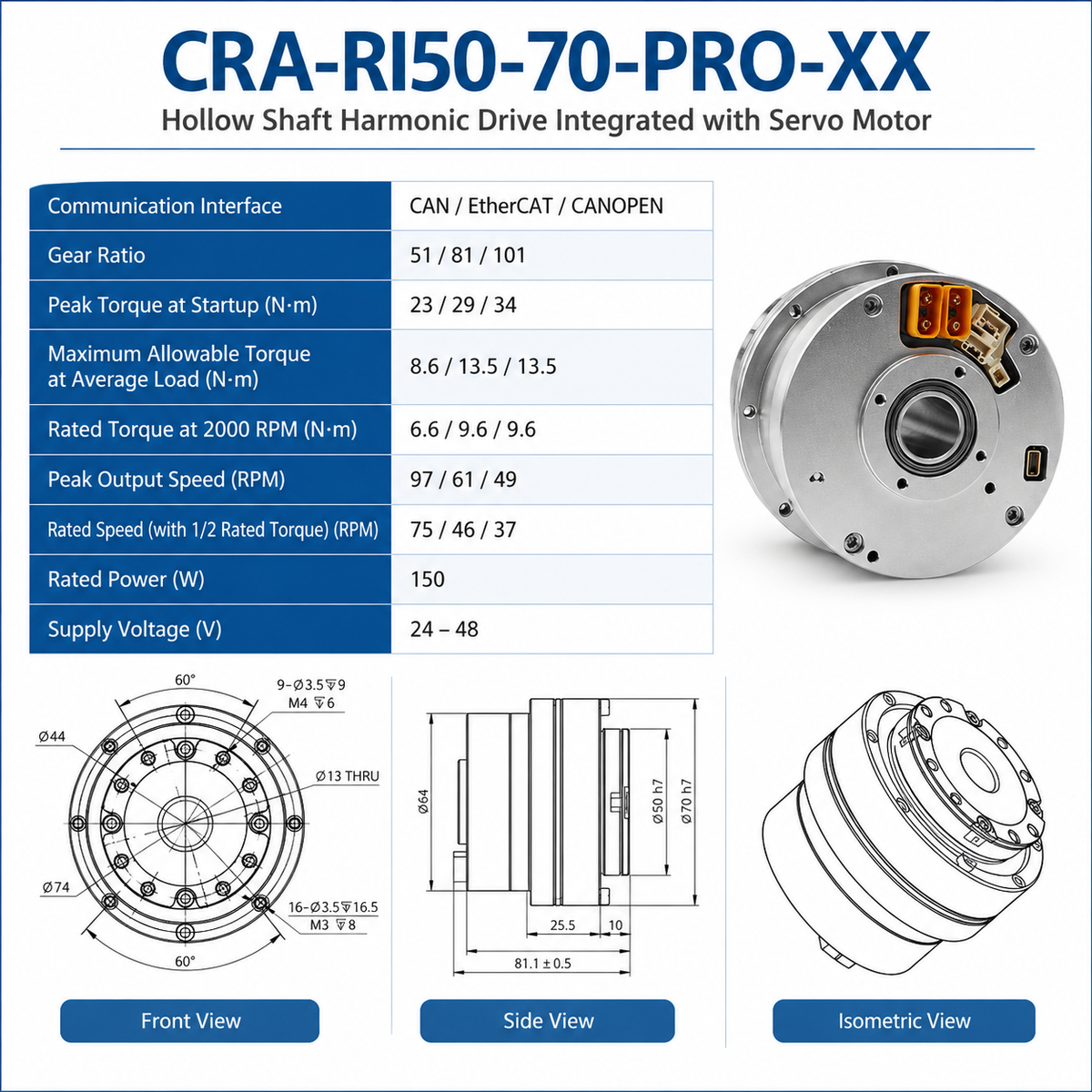

Specifications
| Specification | Details |
|---|---|
| Model | CRA-RI50-70-PRO-XX |
| Product Type | Integrated Robot Joint Actuator |
| Motor Type | Brushless Motor |
| Reducer Type | Harmonic Drive |
| Structure | Hollow Shaft |
| Communication | CAN / EtherCAT |
| Encoder | Single Encoder / Dual Encoder |
| Brake | Without Brake / With Brake |
| Series | RI50-70 PRO |
| Application | Robotic Joint Motion |
Electrical and mechanical specifications may vary depending on the selected configuration.
Package Includes
- 1 × RI50-70 Hollow Shaft Harmonic Drive Robot Joint Actuator
Applications
- Compact robotic arms
- Robot arm joints
- Articulated robots
- Humanoid robotics
- Service robots
- Research robots
- Robotics development platforms
- Compact automation mechanisms
- Precision motion systems
- Custom robotic joints
FAQ
What is the RI50-70 robot joint actuator?
The RI50-70 is a compact integrated robotic joint module combining a brushless motor, harmonic drive reducer, encoder feedback, and hollow-shaft structure.
Does the RI50-70 use a harmonic drive reducer?
Yes. The harmonic reduction mechanism is integrated with the brushless motor and feedback system inside the joint actuator.
What is the advantage of the hollow-shaft design?
The hollow shaft provides internal routing space for cables and wiring, which can simplify integration in articulated robotic joints.
Is the RI50-70 suitable for robotic arms?
Yes. It is designed for compatible robotic arms, articulated robots, humanoid robotics, research platforms, and other robotic joint applications.
Does the RI50-70 support CAN communication?
Yes. CAN communication is available.
Is EtherCAT available?
Yes. EtherCAT is available as another communication configuration.
Can I choose single or dual encoders?
Yes. Single encoder and dual encoder configurations are available.
Can the RI50-70 be supplied with a brake?
Yes. Both with-brake and without-brake configurations are available.
Can I request a different configuration?
Yes. Different communication, encoder, and brake configurations are available. Contact us before ordering if you require a configuration other than the standard listed version.
