Overview
ROBSTRIDE Dynamics Edulite A3 is a 6-DOF desktop robotic arm + gripper designed for ROS2/Python development, motion planning, and interactive teaching. It supports force-position hybrid control and gravity-compensated drag teaching, and integrates high-level functions such as MoveIt2 motion planning with a web-based visualization control interface.
Key Features
- Open-source, high-precision motion control: 7-segment S-curve trajectory planning + speed feedforward + multi-stage low-pass filtering for smooth, shock-free motion
- Gravity compensation: Pinocchio dynamics-based gravity compensation; complete dynamics model based on RNEA; supports automatic inertial parameter calibration (12 parameters, R² > 0.99) for precise drag teaching
- Control modes: Force-position hybrid control / Position control
- Operation modes: Xbox controller Cartesian space real-time control (50Hz / 5-speed variable); master-slave teleoperation (one-to-many / many-to-many)
- Safety protection: Singularity detection and automatic recovery; joint soft and hard limit protection; self-collision and environment collision detection
- High-level functions: MoveIt2 motion planning and obstacle avoidance; web-based visualization control interface
- Zero-torque mode: Supports gravity-compensated drag teaching and pure zero-torque master-slave teleoperation; independent joint damping adjustment
- Toolchain: One-click environment configuration; automatic inertia calibration; Foxglove remote visualization (control frequency 200 Hz); seamless switching between simulation and real robot; customizable end effector
Specifications
| Product Name | Edulite A3 |
| Type | 6-DOF desktop robotic arm + gripper |
| System Framework | ROS2 / Python |
| Drive Protocol | Lingzu Times proprietary CAN 2.0 protocol (1Mbps) |

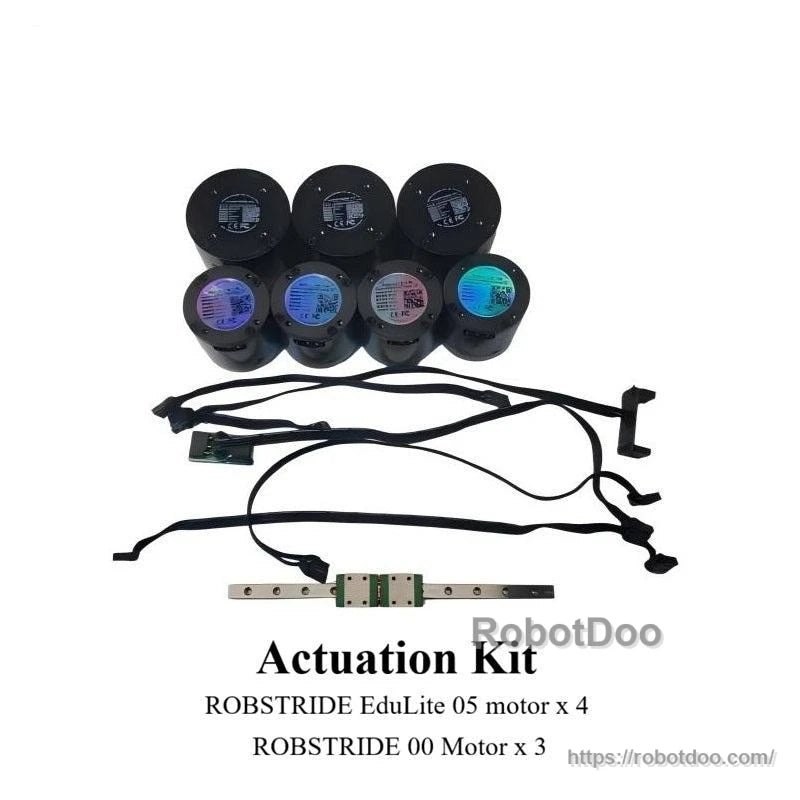

| Drive Motors | RobStride00 motor, EduLite05 motor |
| Control Mode | Force-position hybrid control / Position control |
| Payload | Rated 500g, peak 1kg (standard posture) |
| Core Features | Open-source, high-precision motion control: 7-segment S-curve trajectory planning + speed feedforward + multi-stage low-pass filtering for smooth and shock-free motion |
| Gravity Compensation | Pinocchio dynamics-based gravity compensation, complete dynamics model based on RNEA, supports automatic inertial parameter calibration (12 parameters, R² > 0.99), enabling precise drag teaching |
| Operation Mode | Xbox controller Cartesian space real-time control (50Hz / 5-speed variable), master-slave teleoperation (one-to-many / many-to-many) |
| Safety Protection | Singularity detection and automatic recovery, joint soft and hard limit protection, self-collision and environment collision detection |
| High-Level Functions | MoveIt2 motion planning and obstacle avoidance, web-based visualization control interface |
| Zero-Torque Mode | Supports gravity-compensated drag teaching and pure zero-torque master-slave teleoperation; independent joint damping adjustment |
| Toolchain | One-click environment configuration, automatic inertia calibration, Foxglove remote visualization (control frequency 200 Hz), support for seamless switching between simulation and real robot, customizable end effector |
Applications
- ROS2 and Python robotics education and training
- Motion planning and obstacle avoidance workflows with MoveIt2
- Gravity-compensated drag teaching and teleoperation experiments
- Desktop prototyping with simulation-to-real switching
Manuals
Details

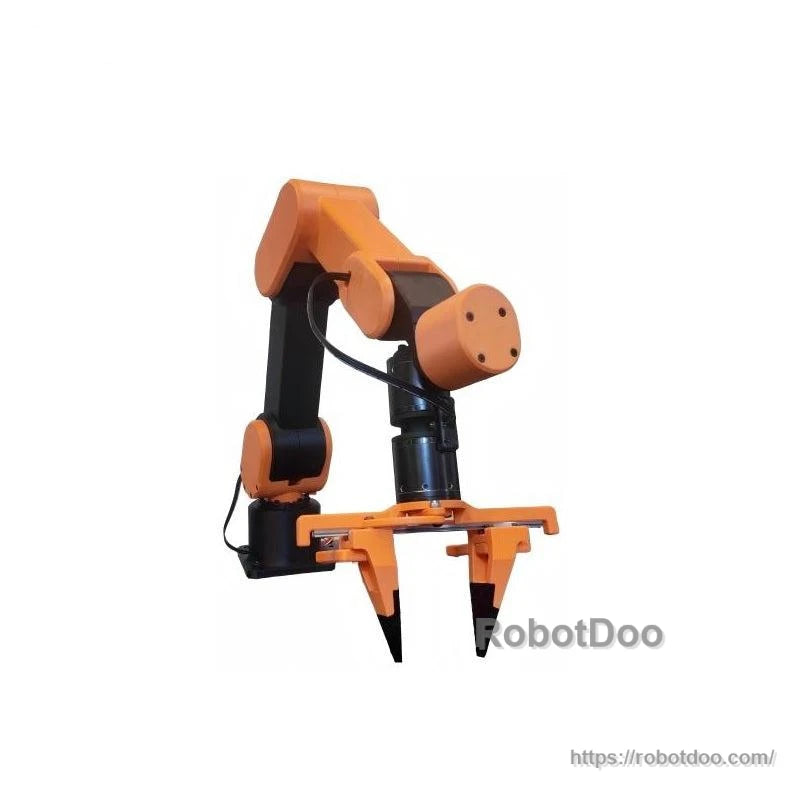

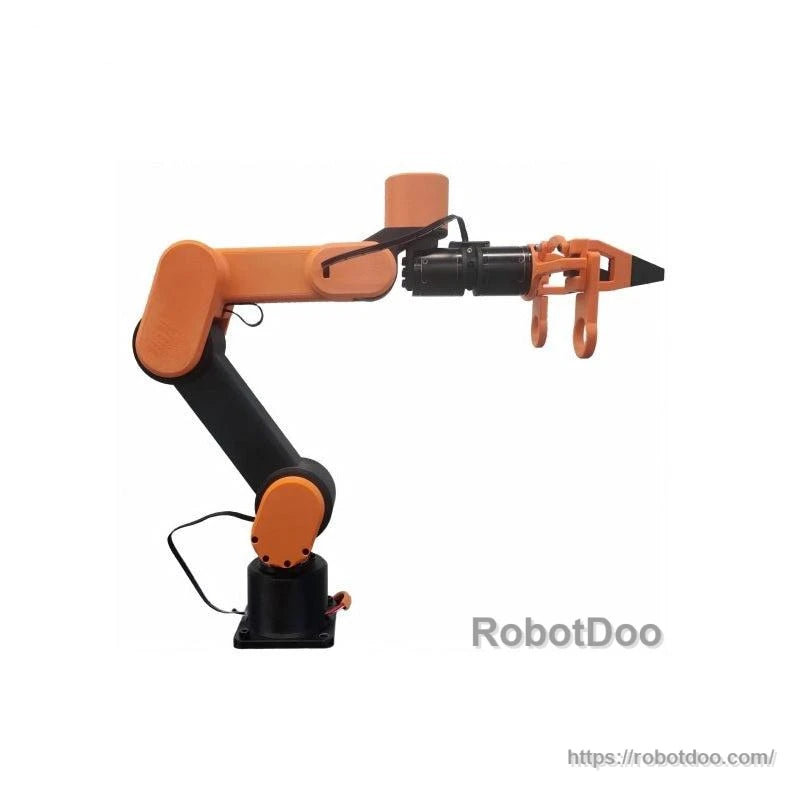

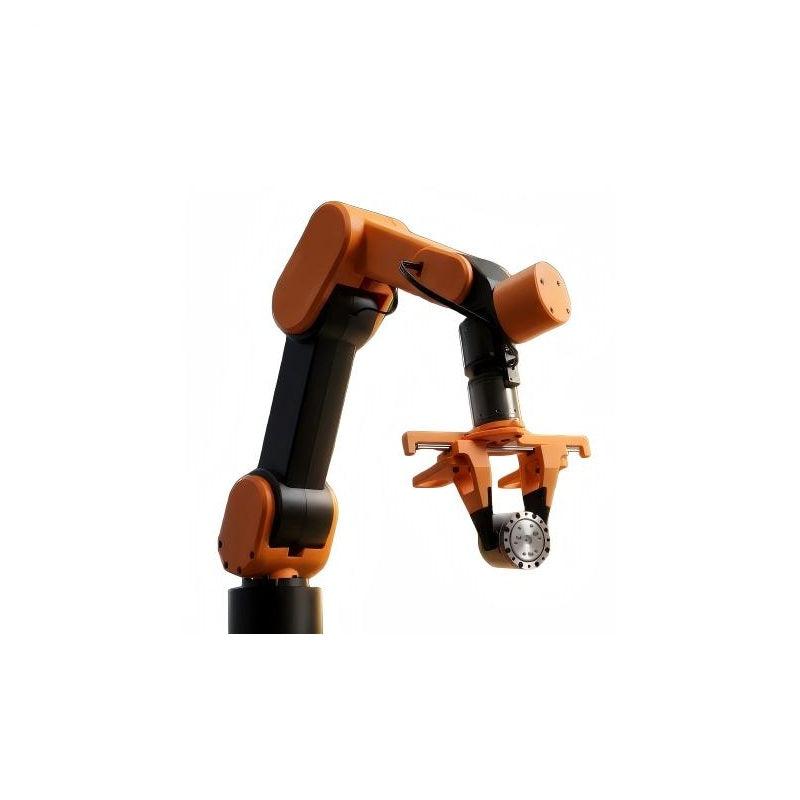

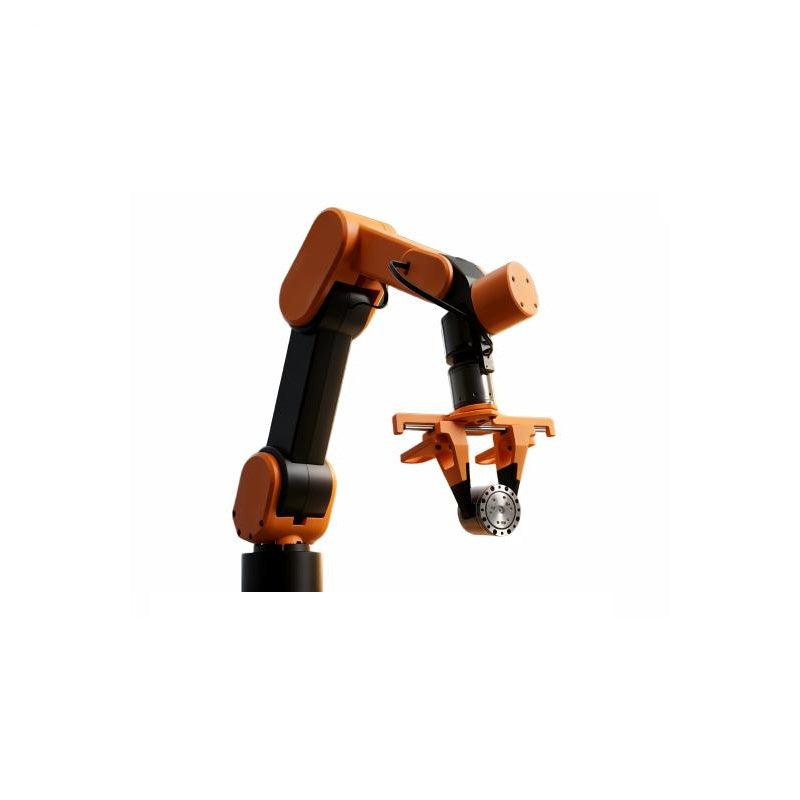

Compact 6‑DOF desktop robotic arm with a gripper for ROS2/Python development, motion planning, and interactive teaching.

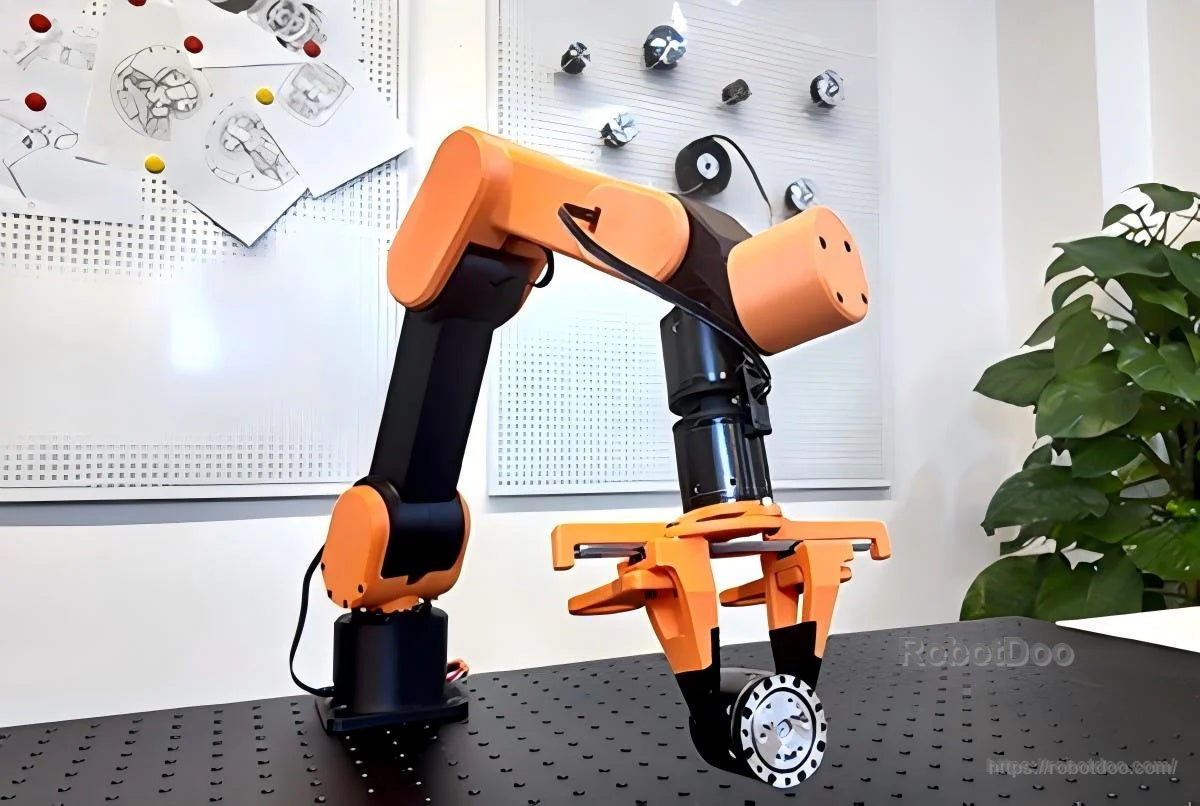

Built for benchtop labs and classrooms, the Edulite A3 pairs a stable base with a compact arm and gripper for hands‑on robotics workflows.
