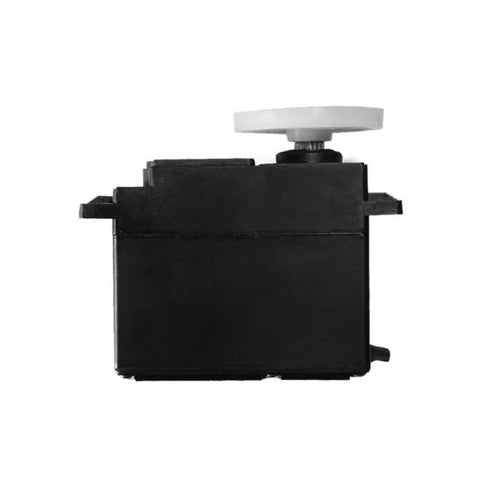

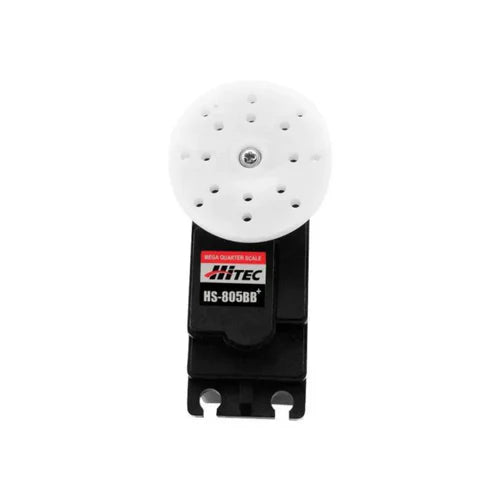

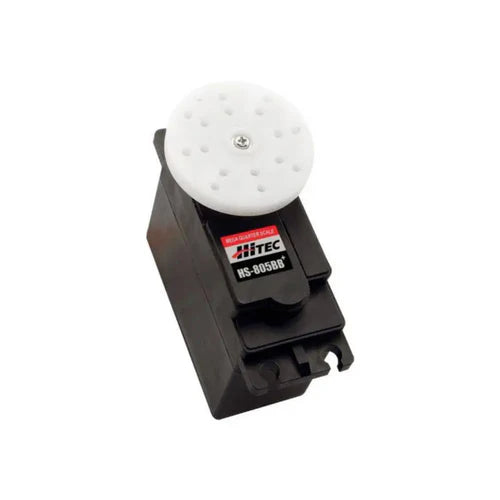

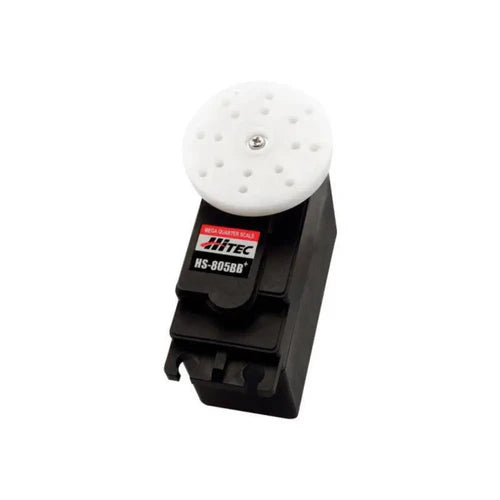

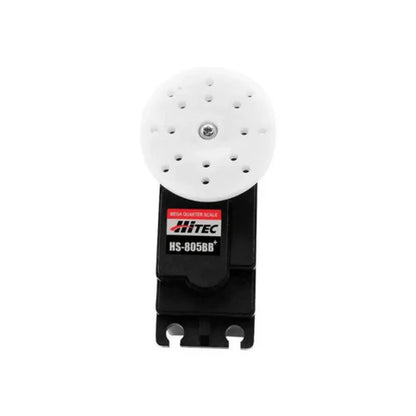

The HS-805BB Giant Scale Servo Motor is an economical and powerful choice for large-scale applications, earning its reputation as the "monster" servo. Featuring a heavy-duty nylon gear train and a strong three-pole ferrite motor, this servo delivers exceptional torque and performance, making it ideal for driving large planes, trucks, boats, or other heavy-duty vehicles.
Key Features:
-
Heavy-Duty Nylon Gear Train: Durable construction to withstand high loads and ensure long-lasting performance.
-
Strong 10mm Output Shaft: Equipped with a 15-tooth design and dual ball bearings for smooth operation and longevity.
-
High Torque Performance: Generates up to 343 oz./in. (24.7 kg/cm) of torque, perfect for large-scale models.
-
Water & Dust Resistant: Splash-proof case protects the servo from environmental factors, making it suitable for rugged outdoor use.
-
Wide Voltage Range: Operates effectively within a voltage range of 4.8V to 6.0V, offering flexibility for different setups.
-
Analog Technology: Built with an HT7003 Analog MosFet circuit, ensuring reliable and stable performance.
-
Low Idle Current: Minimizes power consumption with only 8mA idle current draw.
Performance Specifications:
-
Speed (sec/60°): 0.19 at 4.8V ~ 0.14 at 6.0V
-
Maximum Torque: 275 oz/in. to 343 oz/in. (19.8 kg/cm to 24.7 kg/cm)
-
Operating Voltage Range: 4.8V ~ 6.0V
-
Current Draw at Idle: 8 mA
-
No Load Operating Current: 520 mA
-
Stall Current: 6,000 mA
-
Dead Band Width: 8 µs
-
Weight: 5.36 oz (152g)
-
Case Material: Durable plastic
-
Motor Type: 3-Pole Carbon Brush Ferrite
Dimensions:
-

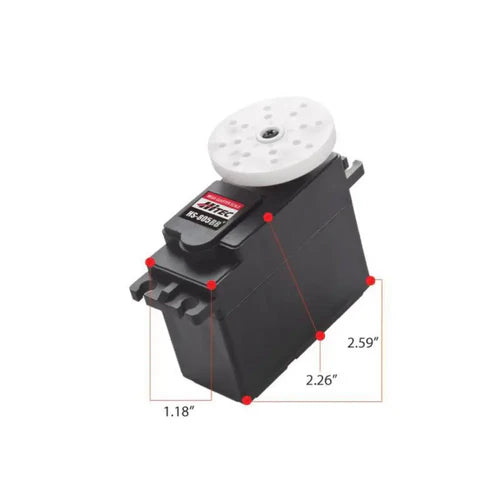

Servo Size: 2.59 x 1.18 x 2.26 in. (66 x 30 x 57.4 mm)
What's Included:
-
1 x HS-805BB Giant Scale Servo Motor
Applications:
-
Scale Models (30-40% and >40% size)
-
Large Planes, Trucks, Boats: Ideal for demanding applications such as giant-scale RC planes, trucks, and boats.
-
Monster Trucks and Crawlers: Perfect for heavy-duty RC vehicles requiring high torque.
Benefits:
-
Superior Strength & Reliability: The HS-805BB is engineered for tough tasks, providing consistent performance in large, demanding models.
-
Durability: The strong build and splash-proof design ensure it can endure harsh environments, making it perfect for outdoor activities.
-
High Torque: Provides maximum control for heavy-duty applications, ensuring smooth and responsive movements even in large-scale models.
