Overview

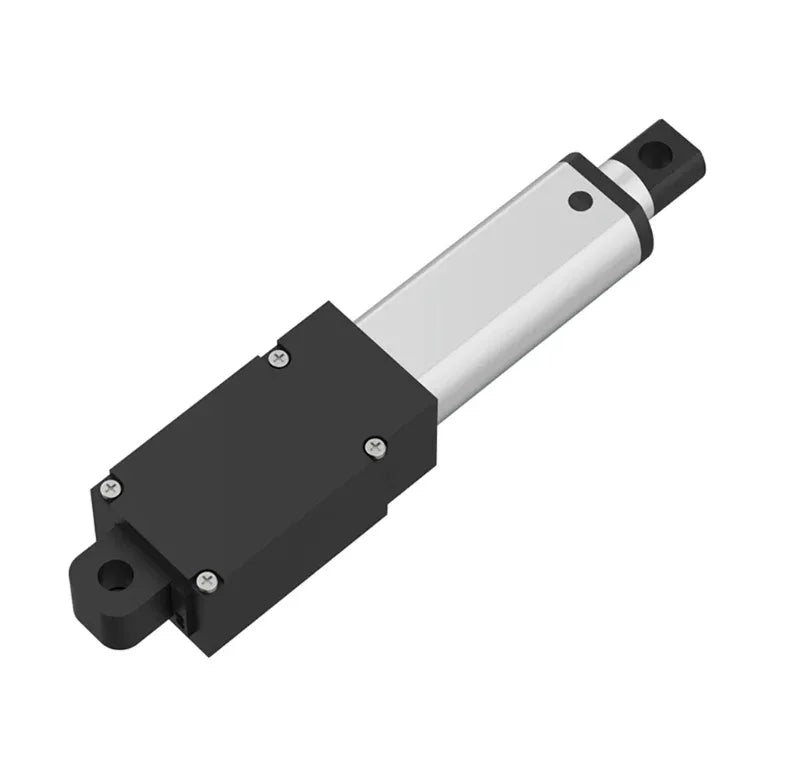

This small linear actuator is designed for compact automation applications requiring 12 V DC input, a 30 mm stroke, and a 50 N load capacity. It features built-in limit switches and an aluminum inner tube with a T-type screw.
Key Features
- 12 V input voltage
- 30 mm stroke length
- 50 N load

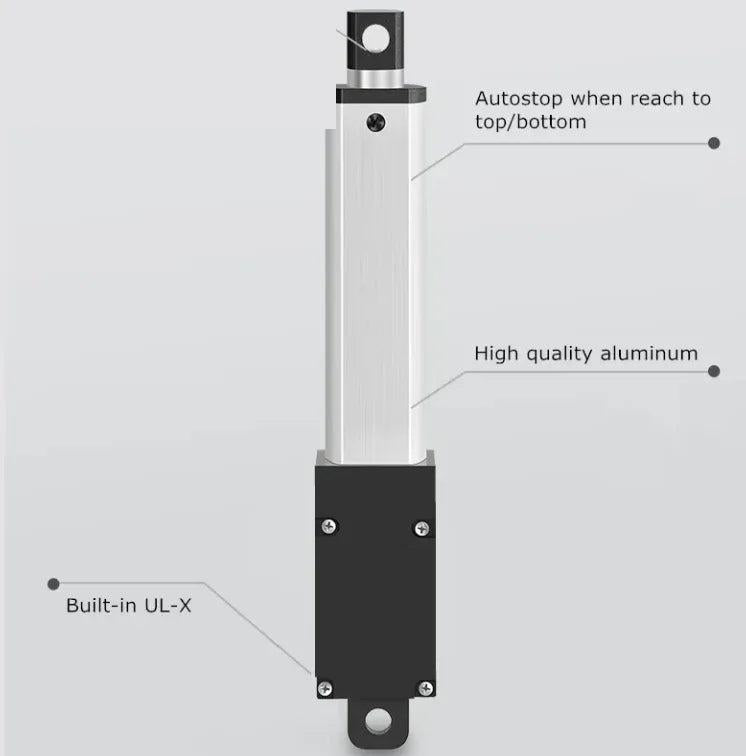

- Built-in limit switches
- Aluminum inner tube
- T-type screw
- 10% working rate
For product assistance or order-related questions, contact customer service at robotdoo.com.
Specifications
| Item type | Linear Actuator |
|---|---|
| Input voltage | 12 V |
| Stroke length | 30 mm |
| Load | 50 N |
| Operating temperature | 0°C to 40°C |
| Limit switches | Built-in |
| Working rate | 10% |
| Inner tube | Aluminum |
| Screw type | T type |
