Overview

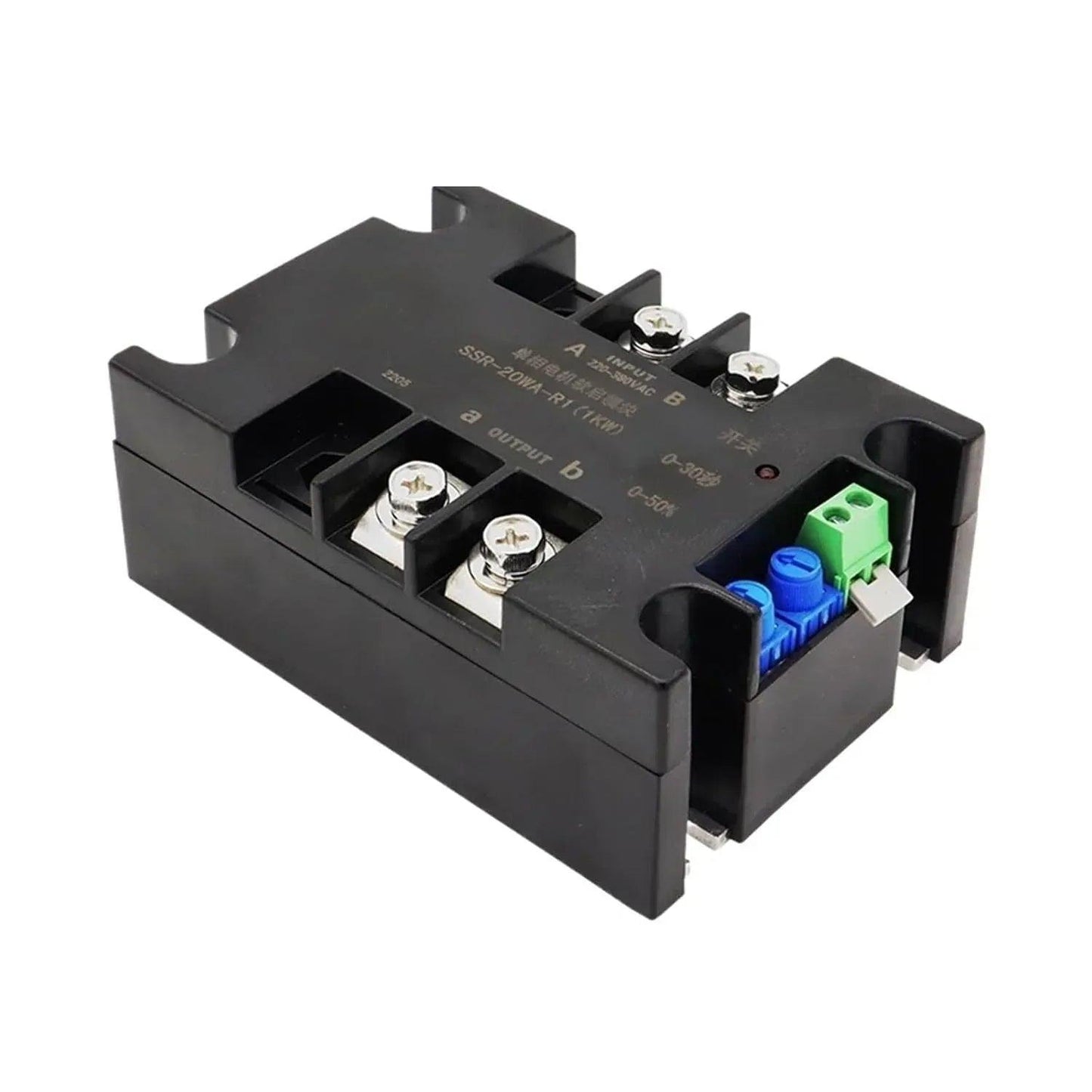

The SSR-100WA-R(4KW) single-phase motor soft starter provides adjustable soft starting for compatible AC motor loads. It is designed for applications including ordinary fans, water pumps, belt conveyors, ball mills, compressors, and other single-phase motor systems. For product and application support, contact RobotDoo customer service.
Key Features
- 4KW motor soft starter module
- Supports 220VAC single-phase and 380VAC two-phase input configurations
- 50-60Hz operating frequency
- Adjustable soft start time from 0 to 30 seconds
- Starting voltage adjustable from 0-50% before ramping to the rated voltage
- Designed for direct soft starting without a bypass contactor

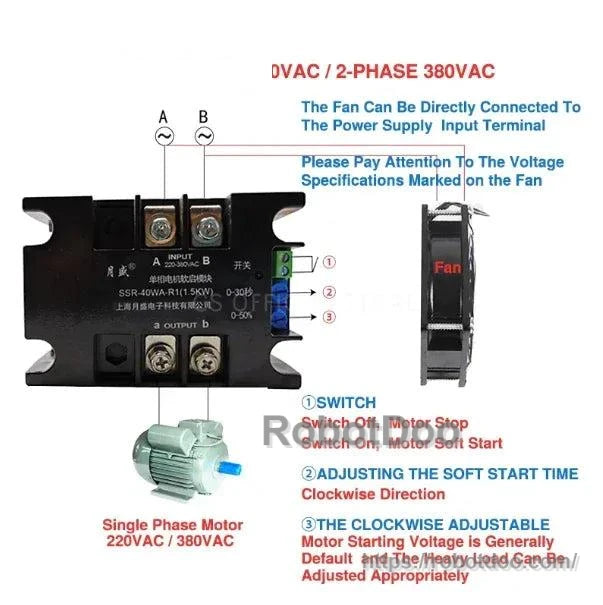

- Two start/stop control methods: automatic start after the main switch is closed, or start/stop control through the module switch
- Soft start function without soft stop
Specifications
| Model | SSR-100WA-R(4KW) |
|---|---|
| Product type | Single-phase motor soft starter |
| Power | 4KW |
| Voltage | 220VAC single-phase or 380VAC two-phase |
| Frequency | 50-60Hz |
| Soft start time | 0-30 seconds |
| Starting voltage | 0-50%, adjustable to the rated voltage |
| Rated voltage range | 220-380V |
| Working environment temperature | -25°C to 60°C |
| Soft stop | Not supported |
Applications
Suitable load types include ordinary fans, water pumps, belt conveyors, ball mills, compressors, and compatible single-phase motors operating at 220V, 230V, or 240V and 50Hz or 60Hz.
Selection and Installation Notes
- For motors rated at 2KW or above, install a suitable heat sink and cooling fan for heat dissipation.
- Connect the load during operation or testing; testing without a connected load does not provide a valid result.
- Do not set the soft start time to 0 seconds, as the starting voltage is 0V and the starting current may become excessive.
- Use the module's control switch for start and stop operation. Do not apply voltage to the control switch or disconnect the incoming line power during operation.
- A safety margin is recommended for continuous operation. Where ambient temperature or heat dissipation conditions are unfavorable, select a starter with a higher current rating.
- A fast-disconnect switch or correctly rated fuse may be installed in series with the load circuit for short-circuit protection.
- Do not use a multimeter on the load side to evaluate product quality.
