Overview

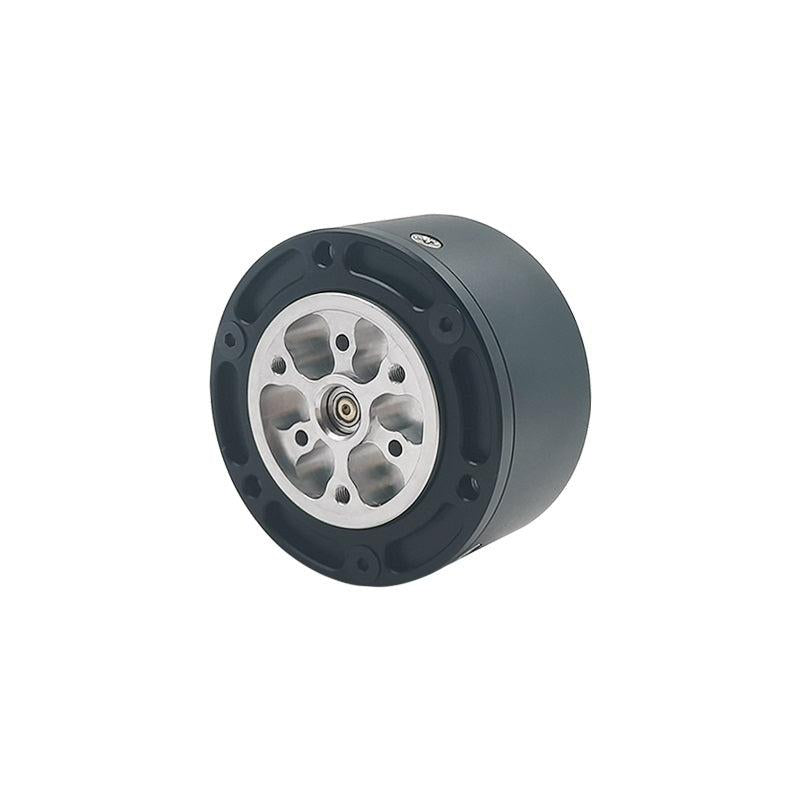

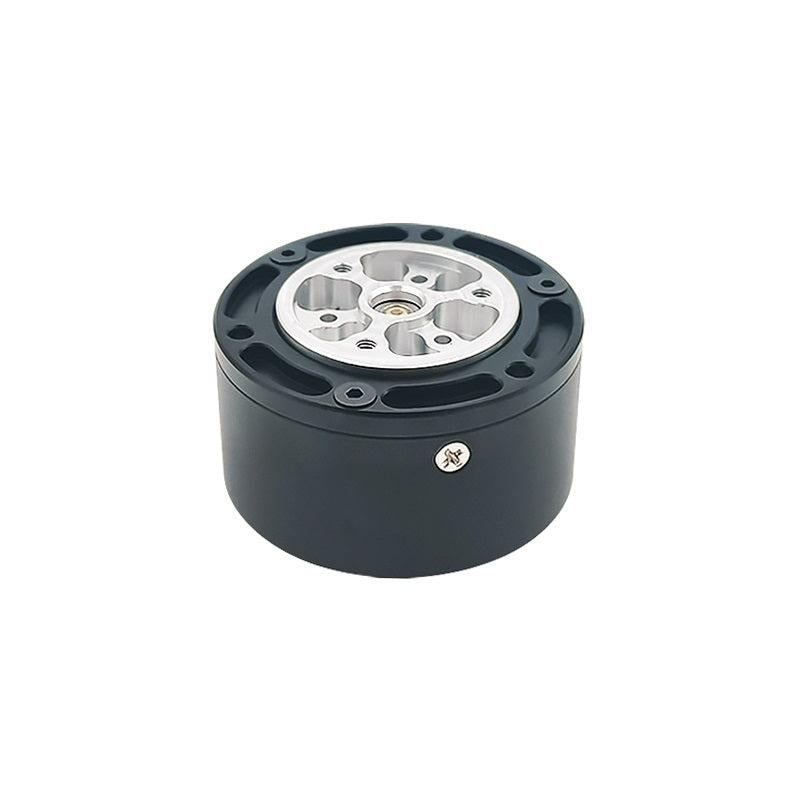

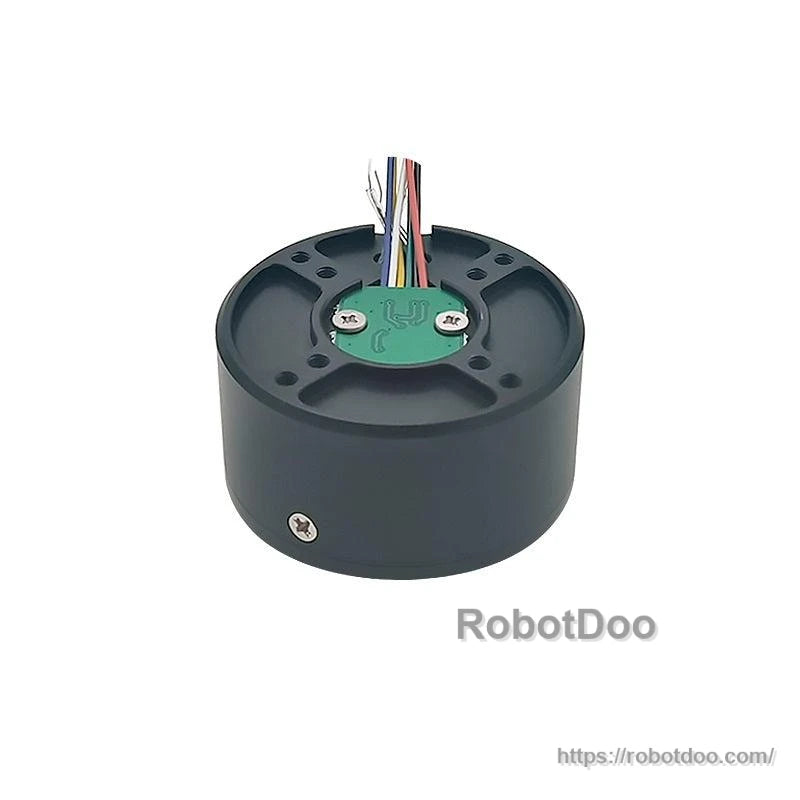

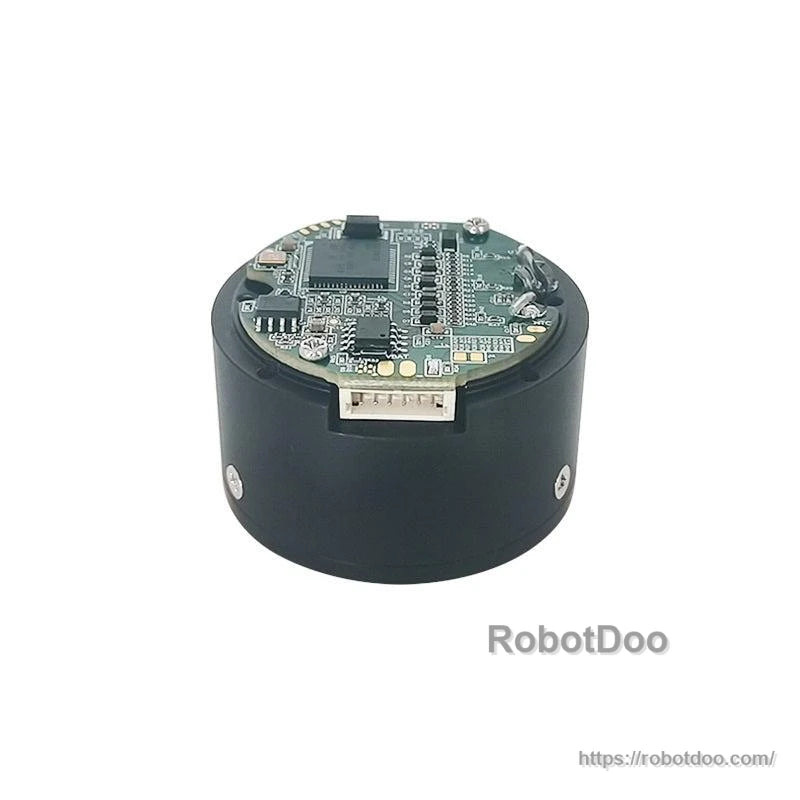

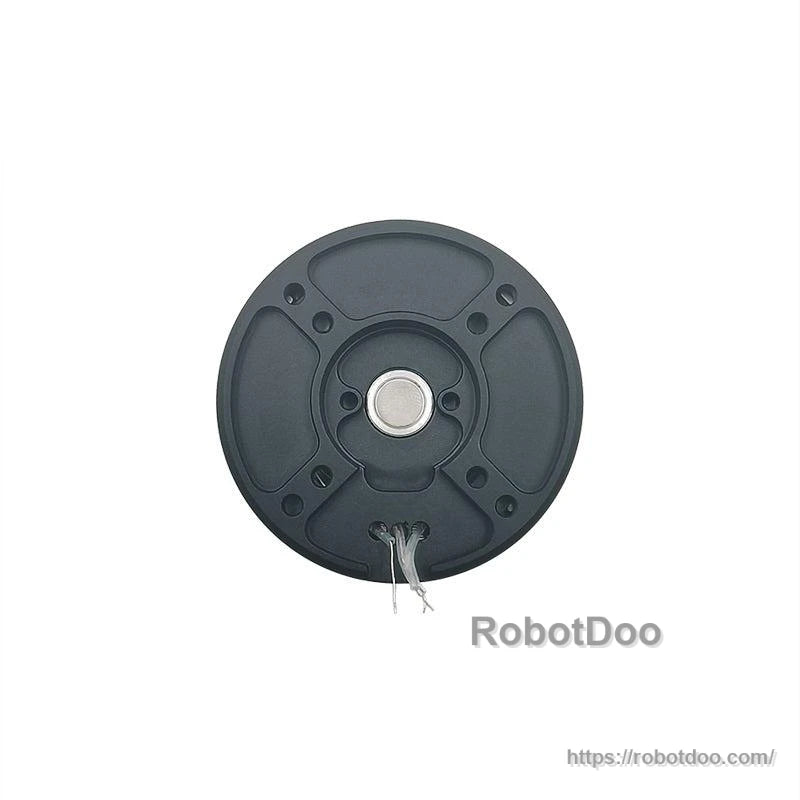

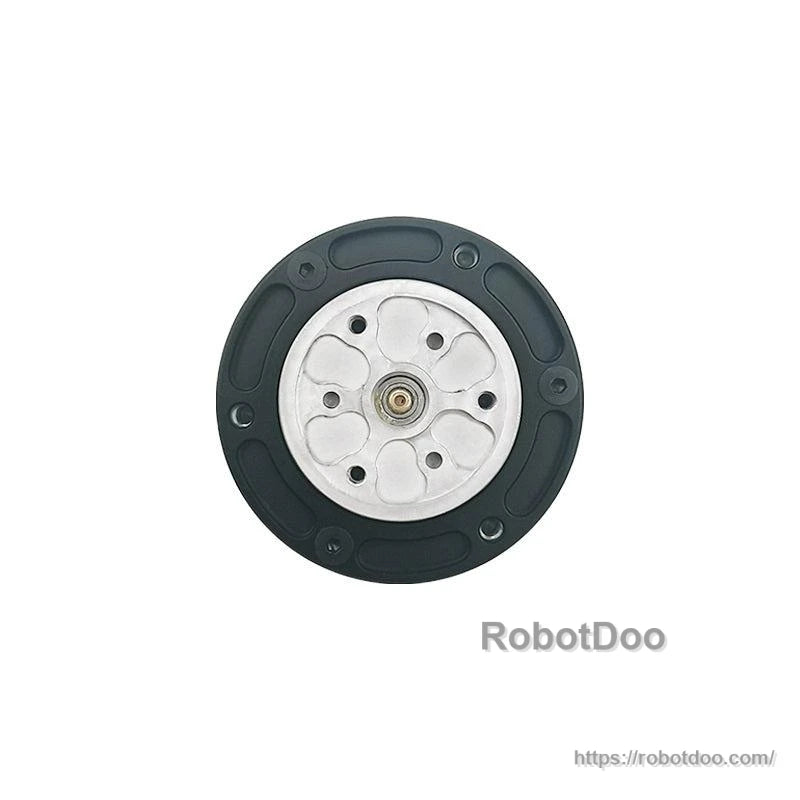

The SteadyWin GIM3505-8 is a planetary reducer motor with an 8:1 planetary gearbox, designed for compact robotic actuation where controlled speed and torque are required. Two driver configurations are specified (GDS34 and GDZ34), with communication options of CAN, or CAN & RS485 depending on the driver model.
Applications
- Humanoid robots
- Robotic arms
- Exoskeletons
- Quadruped robots
- AGV vehicles
- ARU robots
Key Features
- Planetary gearbox: 8:1 ratio, 15 arcmin backlash
- Nominal voltage: 24 V (12–48 V range with GDS34; 12–40 V range with GDZ34)
- Integrated encoder resolution: 14-bit
- Protection grade: IP54
- Noise: <60 dB
- Separate encoder support: YES
- Custom brake support: YES
- Second encoder: NO
- Communication (by driver model): CAN (GDS34) or CAN & RS485 (GDZ34)
Specifications
| Parameter | GIM3505-8 (Driver: GDS34) | GIM3505-8 (Driver: GDZ34) |
|---|---|---|
| Model | GIM3505-8 | GIM3505-8 |
| Driver Model | GDS34 | GDZ34 |
| Nominal Voltage | 24 V (12-48V range) | 24 V (12-40V range) |
| Power | 29 W | 37 W |
| Nominal Torque | 0.65 N·m | 0.67 N·m |
| Stall Torque | 1.27 N·m | 1.79 N·m |
| Nominal Speed after Reduction | 225 RPM | 230 RPM |
| Max Speed after Reduction | 384 RPM | 400 RPM |
| Nominal Current | 1.2 A | 1.53 A |
| Stall Current | 2.4 A | 3.99 A |
| Phase Resistance | 5.06 Ω | 5.47 Ω |
| Phase Inductance | 0.62 mH | 0.48 mH |
| Speed Constant | 16 rpm/V | 16.67 rpm/V |
| Torque Constant | 0.52 N·m/A | 0.44 N·m/A |
| Number of Pole Pairs | 11 pairs | 11 pairs |
| Gear Ratio | 8:1 | 8:1 |
| Gear Type | Planetary | Planetary |
| Reducer Gear Material | ALU | ALU |
| Reducer Gear Backlash | 15 arcmin | 15 arcmin |
| Motor Weight (without Driver) | 84 g | 84 g |
| Motor Weight (with Driver) | 97 g | 97 g |
| Size (without Driver) | Dia 43 x 23.6 mm | Dia 43 x 23.6 mm |
| Size (with Driver) | Dia 43 x 30 mm | Dia 43 x 30 mm |
| Max Axial Load | 75 N | 75 N |
| Max Radial Load | 300 N | 300 N |
| Noise | <60 dB | <60 dB |
| Communication | CAN | CAN & RS485 |
| Second Encoder | NO | NO |
| Protection Grade | IP54 | IP54 |
| Operating Temperature | -20°C to +80°C | -20°C to +80°C |
| Encoder Resolution | 14-bit | 14-bit |
| Separate Encoder Support | YES | YES |
| Custom Brake Support | YES | YES |
