DESCRIPTION

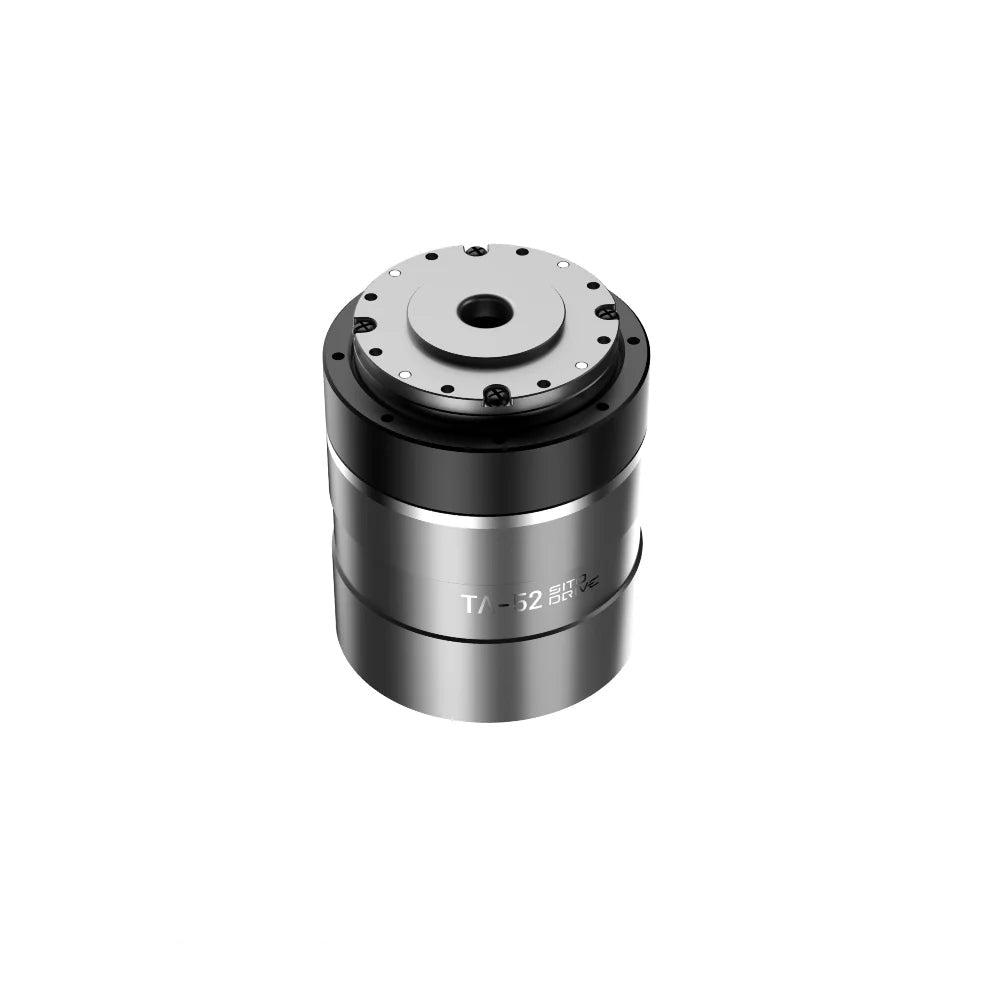

The TA-52 Titan Smart Actuator is a high-performance integrated harmonic drive servo module designed for precision robotic and automation applications. Featuring a compact 52mm diameter body, this actuator integrates a strain wave harmonic reducer, brushless DC motor, high-resolution encoder, and drive electronics into a single compact unit.
Engineered for high torque density and zero-backlash transmission, the TA-52 delivers smooth low-speed performance and accurate positioning, making it ideal for robotic joint systems and advanced motion control platforms.
Available in 50:1 and 100:1 gear ratios, the actuator supports a wide input voltage range of 10–60V (24V recommended) and operates reliably in harsh industrial environments from -40°C to 80°C.
The hollow shaft design (8mm inner diameter) enables flexible cable routing for robotics and rotating joint assemblies.

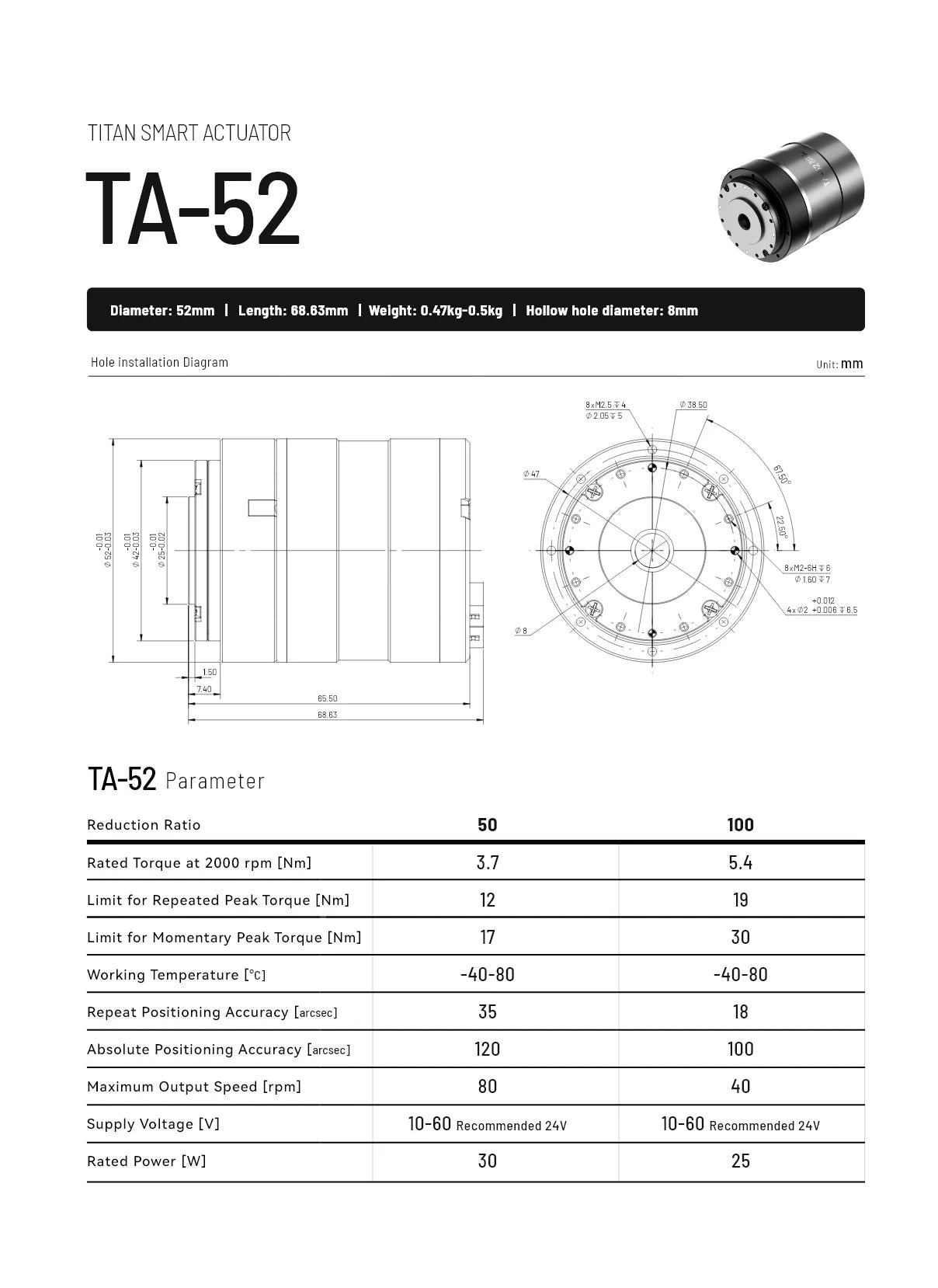

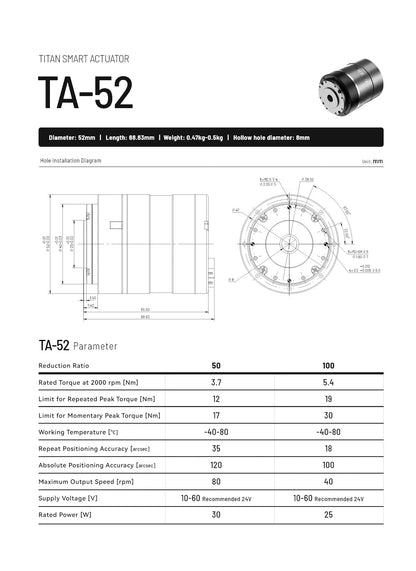

SPECIFICATIONS
| Parameter | 50:1 Version | 100:1 Version |
|---|---|---|
| Model | TA-52 | TA-52 |
| Outer Diameter | 52 mm | 52 mm |
| Total Length | 68.63 mm | 68.63 mm |
| Hollow Shaft Diameter | 8 mm | 8 mm |
| Gear Ratio | 50:1 | 100:1 |
| Rated Torque (@2000rpm motor speed) | 3.7 Nm | 5.4 Nm |
| Maximum Output Speed | 80 rpm | 40 rpm |
| Rated Power | 30 W | 25 W |
| Input Voltage Range | 10–60 V (24V recommended) | 10–60 V (24V recommended) |
| Working Temperature | -40°C to 80°C | -40°C to 80°C |
| Transmission Type | Harmonic Drive (Strain Wave) | Harmonic Drive (Strain Wave) |
| Structure | Integrated Smart Actuator | Integrated Smart Actuator |
FEATURES
-

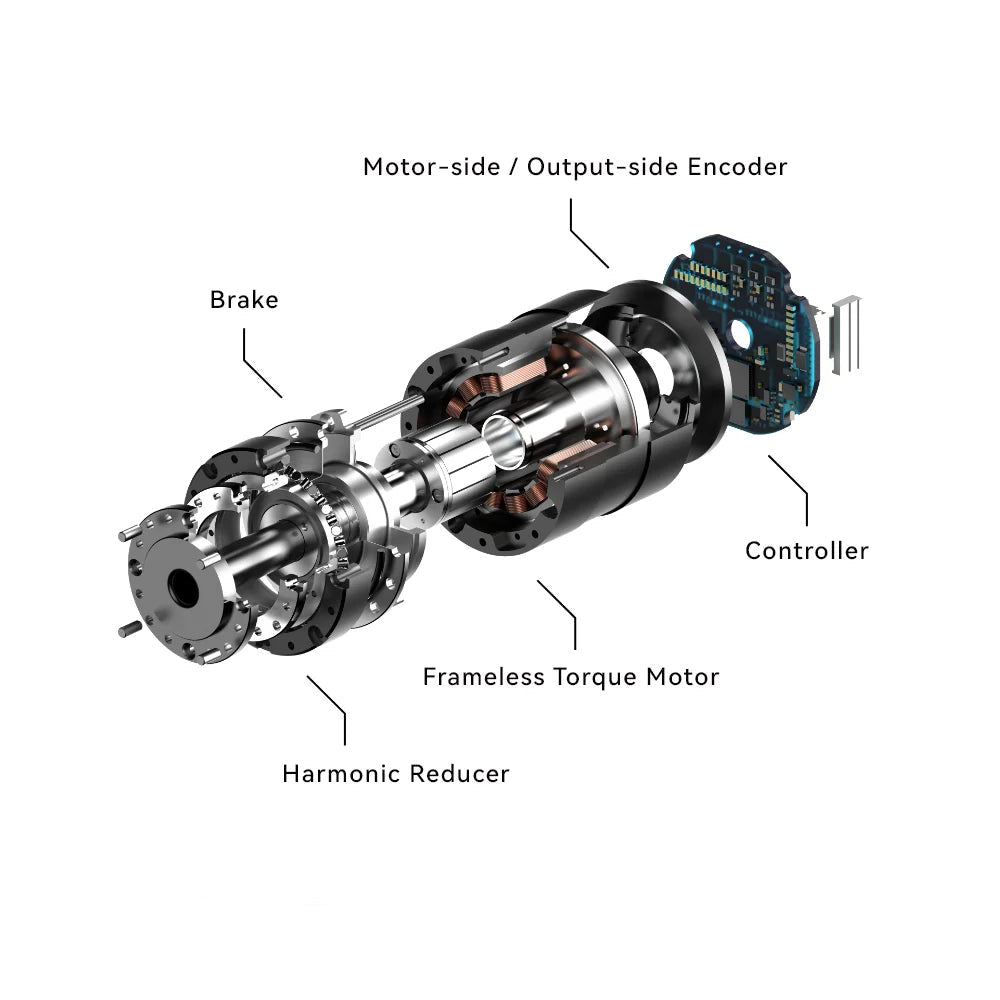

Integrated harmonic reducer + motor + encoder + driver
-
Zero backlash strain wave transmission
-
High torque density in compact 52mm housing
-
Hollow shaft for cable-through design
-
Wide 10–60V voltage compatibility
-
Stable low-speed control performance
-
Industrial-grade temperature tolerance
-
Optimized for robotic joint integration
APPLICATIONS
-
Robotic arm joints
-
Humanoid robot systems
-
Collaborative robots (Cobots)
-
Intelligent inspection equipment
-
Precision rotary positioning stages
-
Exoskeleton robotic systems
-
Automation and smart manufacturing
PACKAGE INCLUDES
-
1 × TA-52 Titan Smart Actuator
-
Standard factory configuration accessories
