Overview

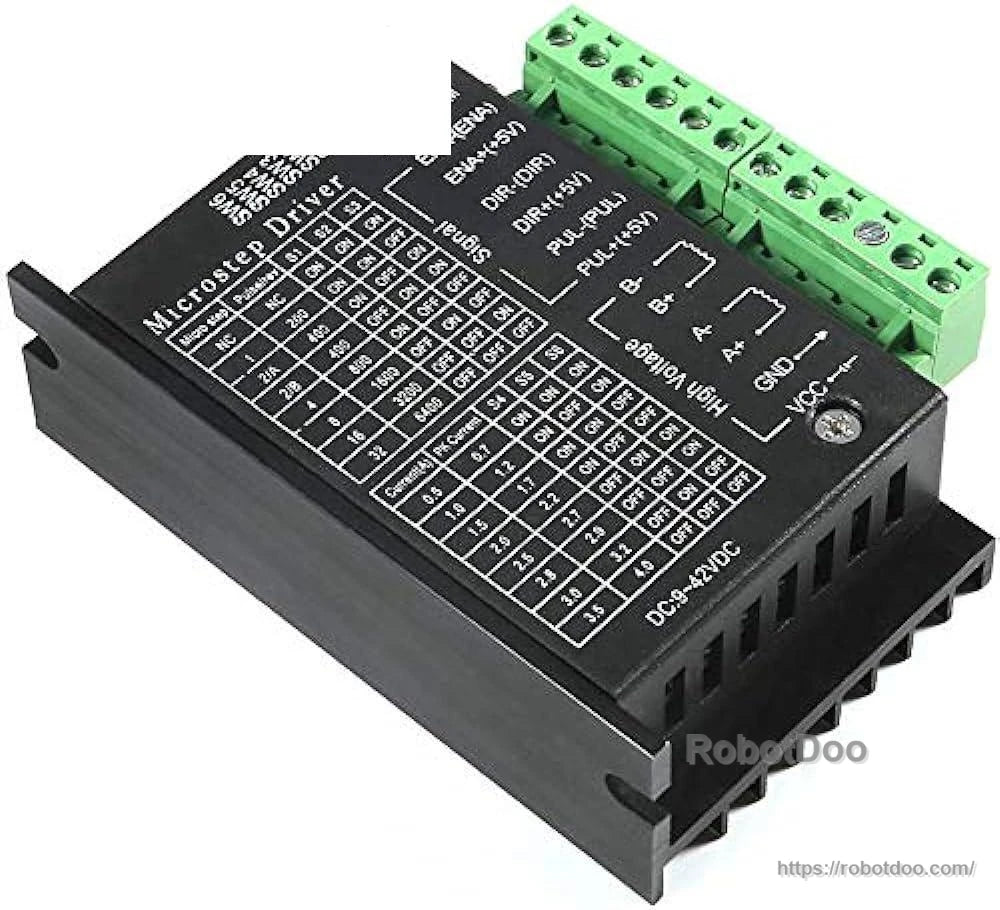

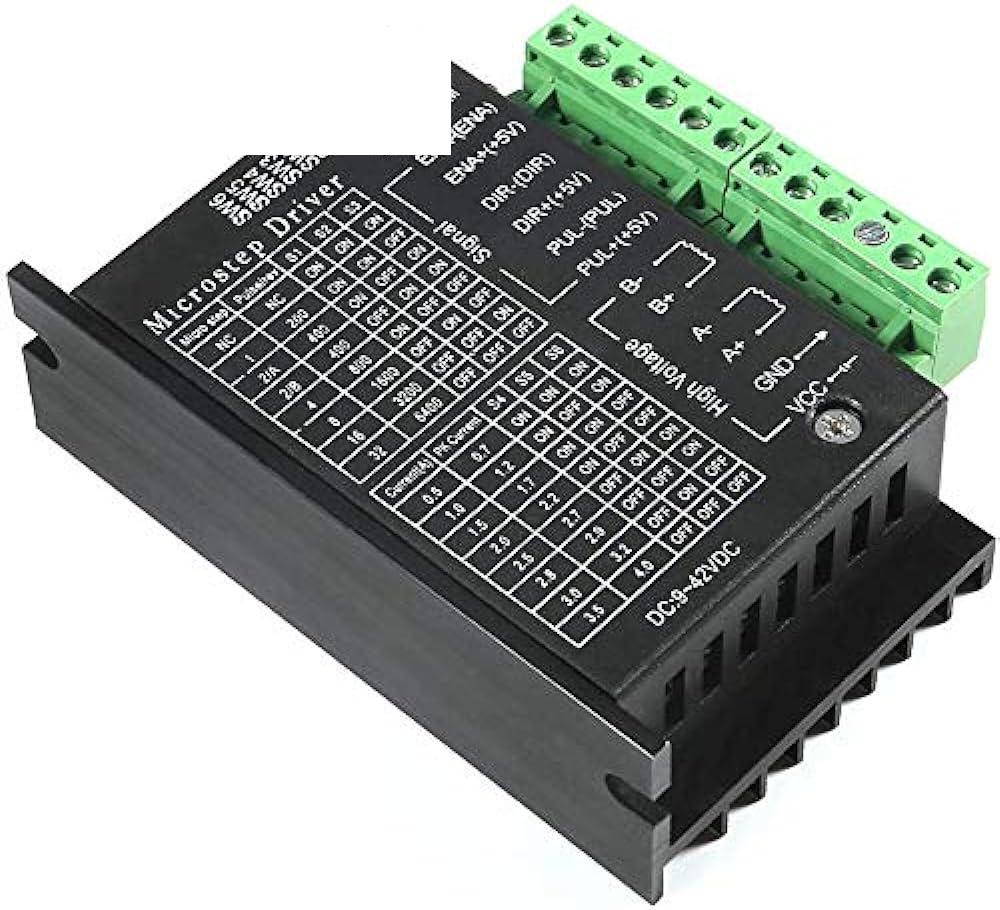

The TB6600 Stepper Motor Driver is a microstepping controller for two-phase hybrid stepper motors. It supports step and direction control from Arduino and other microcontrollers with digital pulse outputs, with a 9-42VDC supply input and adjustable current and microstep settings.
Key Features
- Supports speed and direction control
- Seven selectable microstep modes via DIP switches
- Eight selectable output-current levels via DIP switches
- High-speed optocoupler isolation on signal terminals
- Automatic semi-flow function to help reduce heat
- Integrated heat sink
- Input reverse-polarity, overtemperature, overcurrent, and short-circuit protection
Specifications
| Product type | Stepper motor driver |
| Drive IC | TB67S109AFTG |
| Supply voltage | 9-42VDC |
| Input current | 0-5A |
| Output current | 0.5-4.0A |
| Maximum power | 160W |
| Control signal voltage | 3.3-24V |
| Microstep modes | 1, 2/A, 2/B, 4, 8, 16, 32 |
| Operating temperature | -10 to 45°C |
| Humidity | Non-condensing |
| Dimensions | 96 x 56 x 33 mm |
Applications
Suitable for Arduino-based motion-control projects and systems using 42-type or 57-type two-phase hybrid stepper motors. For product assistance, contact RobotDoo.
