Description
This Three-Phase Brushless DC Motor Driver is designed for sensorless and Hall-sensor BLDC motor applications requiring stable speed regulation, compact integration, and reliable low-noise operation. Supporting DC 12-36V input, the driver provides multiple control methods including PWM speed control, analog voltage adjustment, potentiometer control, and MCU signal control.
Compatible with most three-phase brushless DC motors, this compact motor controller is suitable for robotics, automation systems, AGV platforms, gimbal systems, industrial equipment, cooling systems, pumps, and custom motion control projects.
The integrated protection and soft-start design help reduce startup current impact while improving motor stability and lifespan. The driver also supports forward/reverse switching and speed feedback output for advanced control applications.

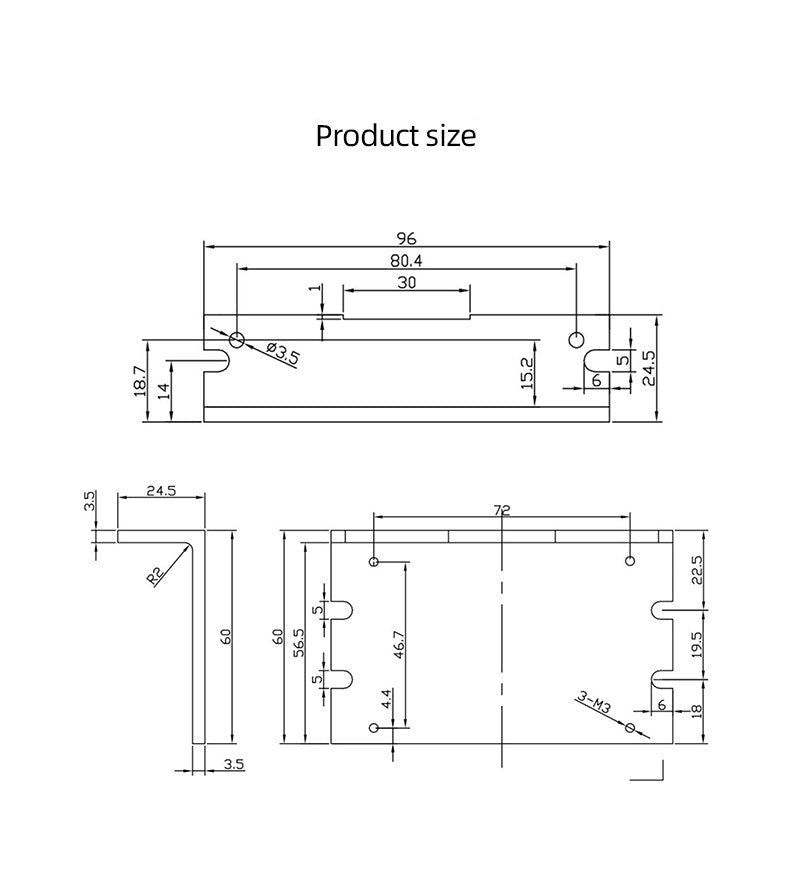

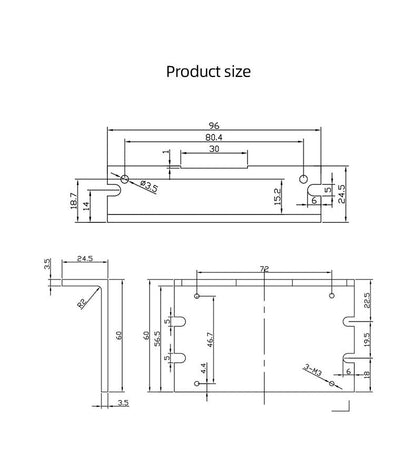

Designed with compact dimensions and side heat dissipation structure, this BLDC motor driver offers efficient thermal performance and flexible installation for embedded industrial systems.
Features
- Supports Hall and sensorless BLDC motors
- Compatible with DC 12V-36V power input
- PWM speed control support
- 0-5V analog signal speed regulation
- External potentiometer speed adjustment
- MCU control compatible
- Forward and reverse rotation switching
- Speed feedback signal output
- Soft-start motor protection
- Compact aluminum housing with heat dissipation design
- Suitable for 1-21 pole pair brushless motors
- Wide speed adjustment range: 500-10000 RPM

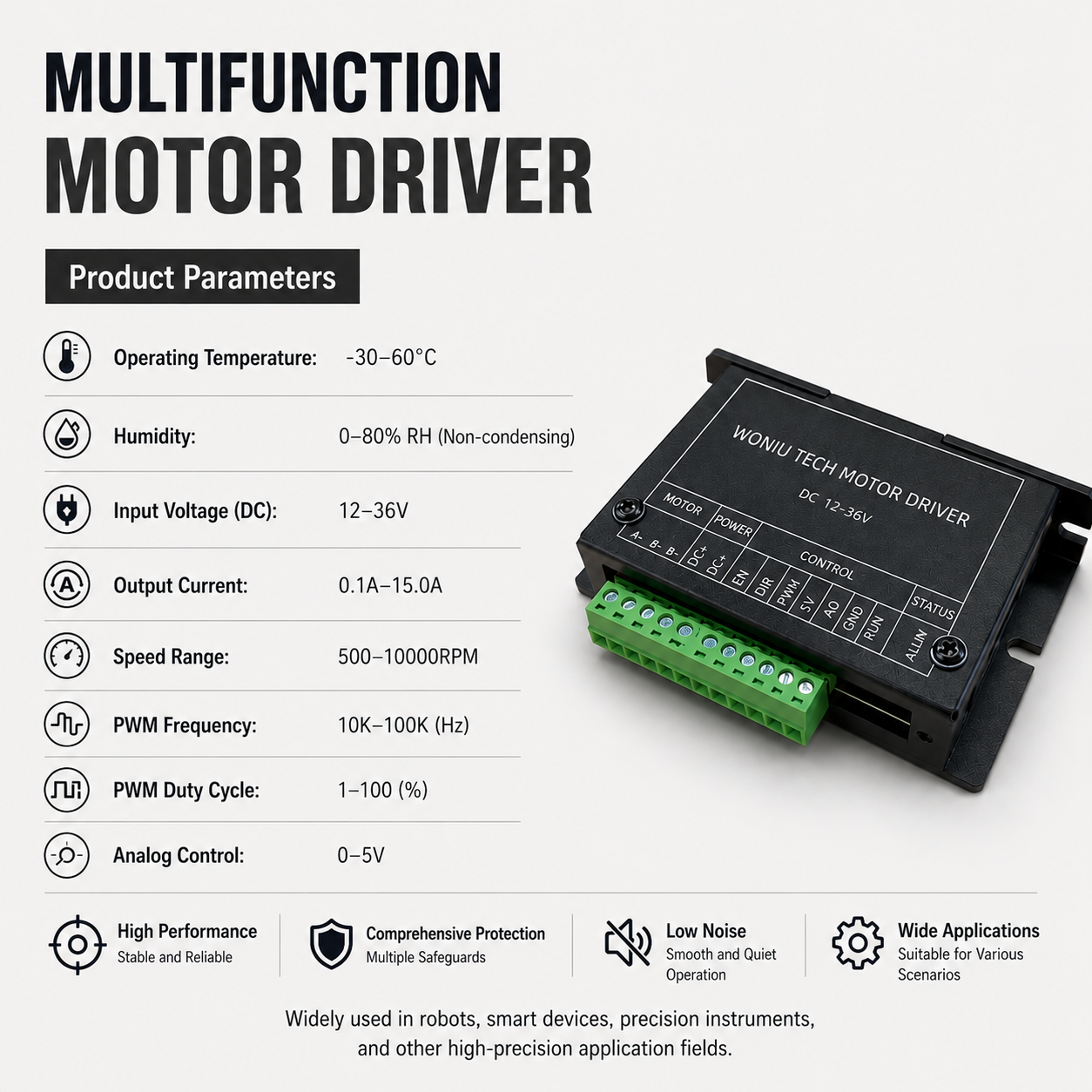

Specifications

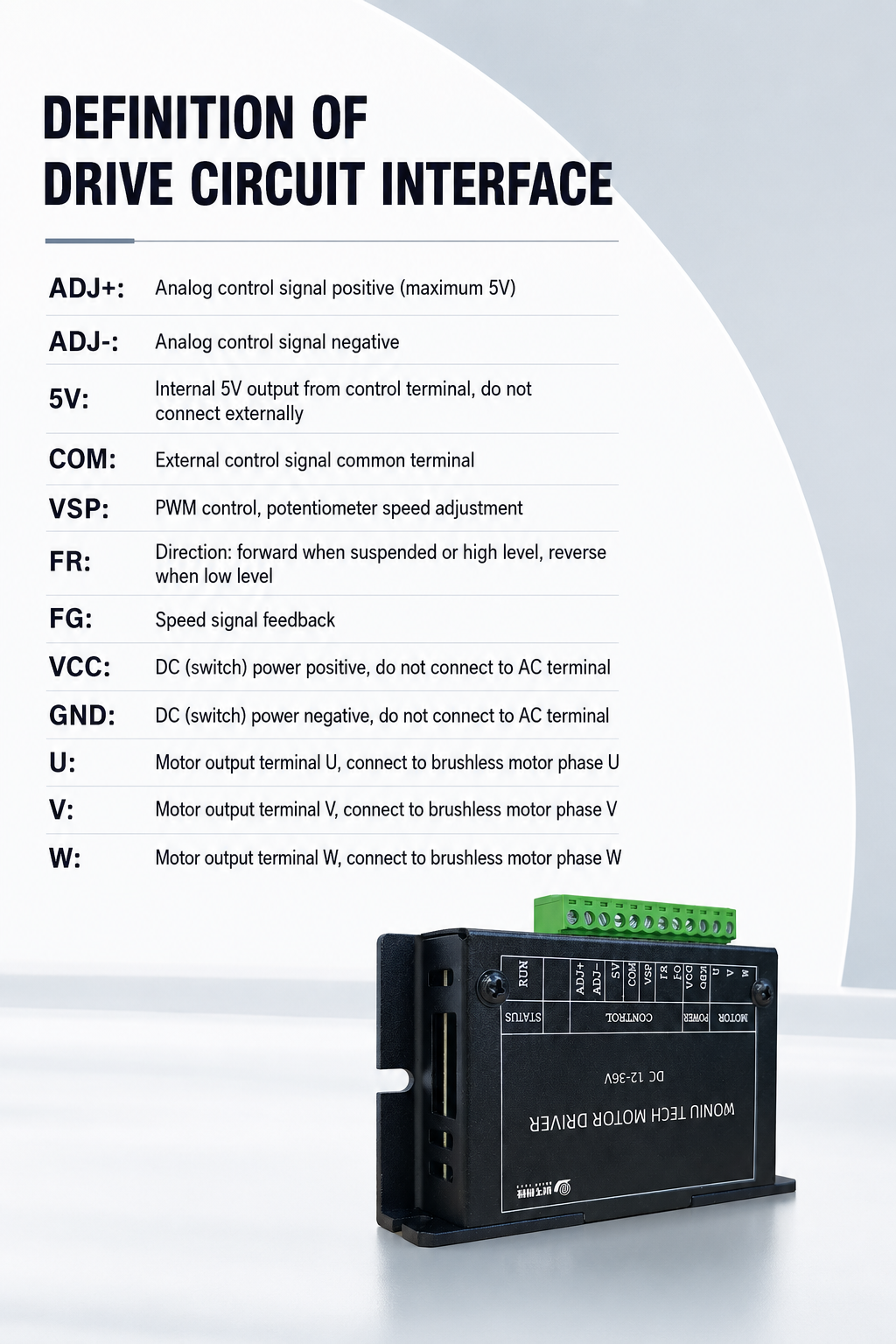

Interface Definition
Hall Sensor Version
| Port | Function |
|---|---|
| HA/HB/HC | Hall Sensor Signals |
| 5V | Hall Sensor Power Output |
| GND | Hall Sensor Ground |
Applications
- Robotic Arm Systems
- AGV & AMR Robots
- Gimbal Platforms
- Brushless Cooling Fans
- Water Pumps
- Industrial Automation
- Conveyor Systems
- Smart Equipment
- DIY Motion Control Projects
- Embedded Robotics Systems
- Related Collections→
Package Includes
- 1 × BLDC Motor Driver
