Overview

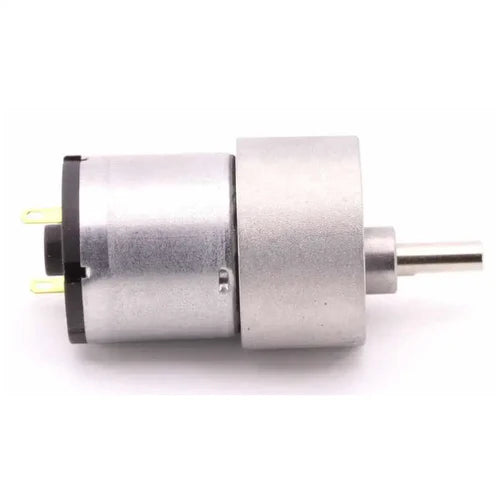

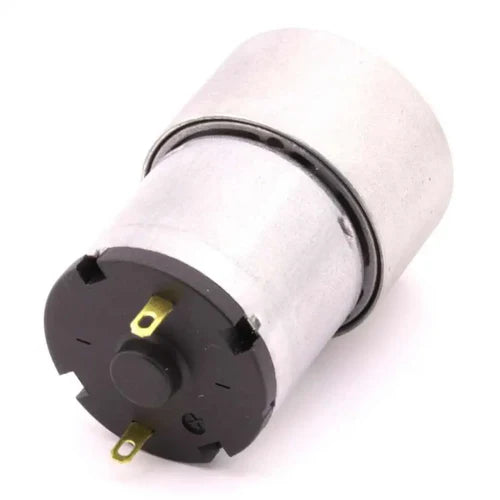

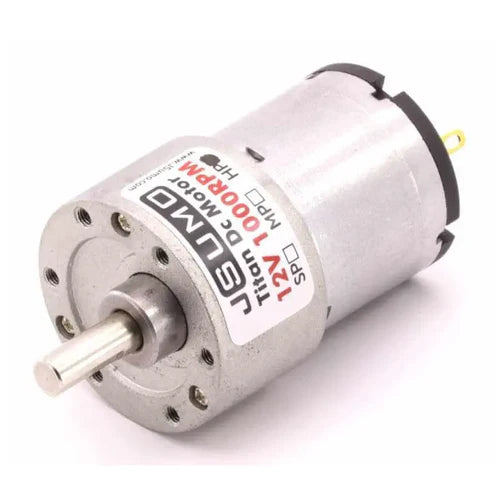

The Titan DC Gearhead Motor 12V 1000 RPM HP is a high-performance DC motor with a precision metal gearhead, specifically engineered for demanding robotics applications. With its compact form factor and powerful torque output, this motor is a top choice for non-magnetic style sumo robots and other high-torque robotic projects.
Key Features
-
Voltage: 12V DC
-
Speed: 1000 RPM (High Performance)
-
Stall Torque: 7.5 kg-cm
-
No-Load Current: 240 mA
-
Stall Current: 5.9 A
-
Durable All-Metal Gears – Ensures long-lasting performance and reliability
-

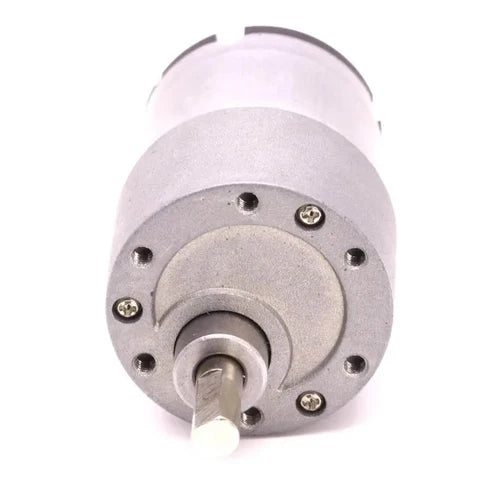

6 x M3 Mounting Holes – Located on the front face for easy integration
-
Ideal for Sumo Robots – Designed for non-magnetic competitive robot builds
Mechanical Specifications
-
Motor Diameter: 37 mm
-
Motor Length: 75 mm
-
Shaft Diameter: 6 mm
-
Shaft Length: 17 mm
What's Included
-
1 × Titan DC Gearhead Motor 12V 1000 RPM HP
Details
Dimensions
Guide
Why Choose the Titan 12V Gearhead Motor?
This motor delivers the perfect balance of speed, torque, and reliability for robotics enthusiasts and competitive builders. Whether you're designing a powerful sumo bot or a custom mobile platform, the Titan DC Gearhead Motor is a dependable and robust solution.
