Product Description

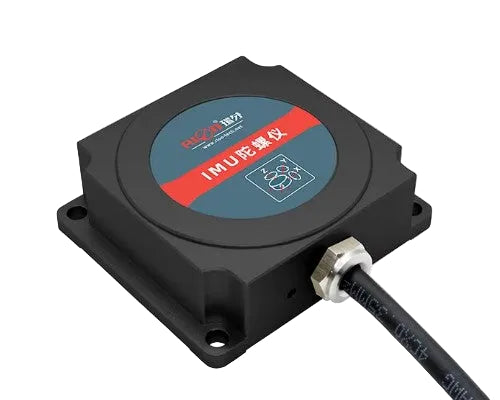

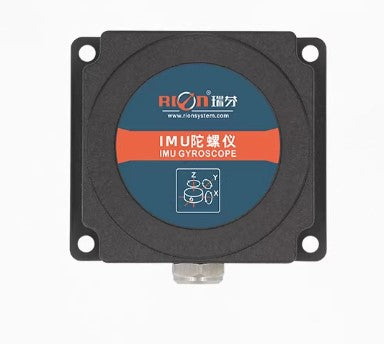

The TL725P is a high-performance MEMS-based inertial measurement unit (IMU), designed for accurate attitude and heading measurement in dynamic environments. Built on an advanced inertial sensing platform, it processes gyroscope angular velocity data through real-time attitude algorithms to deliver stable and precise motion data.
This IMU is specifically optimized for high-vibration environments, ensuring smooth and reliable output even in demanding conditions such as agricultural machinery, autonomous vehicles, and industrial robotics.
Key Features
- High-precision heading accuracy up to 0.01° resolution
- Excellent anti-vibration performance for harsh environments
- Real-time output of attitude, heading, and motion data
- Fast startup time ≤500 ms
- Multi-rate output up to 200 Hz
- Industrial-grade design with IP67 protection
- Wide voltage input (5–12V / 9–36V optional)
- Long service life up to 10 years
Technical Specifications
Attitude Performance
| Parameter |
Specification |
| Heading (Yaw) |
±180° |
| Roll |
±180° |
| Pitch |
±90° |
| Resolution |
0.01° |
| Bandwidth |
>100 Hz |
| Nonlinearity |
0.1% FS |
Gyroscope
| Parameter |
Specification |
| Measurement Range |
250°/s |
| Bias Instability (Allan) |
4.5°/h |
| Angle Random Walk |
0.25°/√h |
| Bias Stability (10s Avg) |
8.5°/h |
Accelerometer
| Parameter |
Specification |
| Measurement Range |
±4 g |
| Resolution |
0.001 g |
| Accuracy |
1 mg |
| Bias Instability |
0.05 mg |
| Velocity Random Walk |
0.015 m/s/√h |
| Bias Stability (10s Avg) |
0.15 mg |
Startup & Output
| Parameter |
Specification |
| Startup Time |
≤500 ms |
| Output Rate |
5 / 15 / 25 / 35 / 50 / 100 / 200 Hz |
Electrical Specifications
| Parameter |
Specification |
| Input Voltage |
DC 5–12V or 9–36V (optional) |
| Current Consumption |
35 mA @ 12V |
Environmental Specifications
| Parameter |
Specification |
| Operating Temperature |
−40°C to +80°C |
| Storage Temperature |
−40°C to +85°C |
| Vibration Resistance |
5 – 10 g |
| Shock Resistance |
200 g pk, 2 ms |
| Protection Rating |
IP67 |
Reliability
| Parameter |
Specification |
| Service Life |
10 years |
| MTBF |
≥50,000 hours |

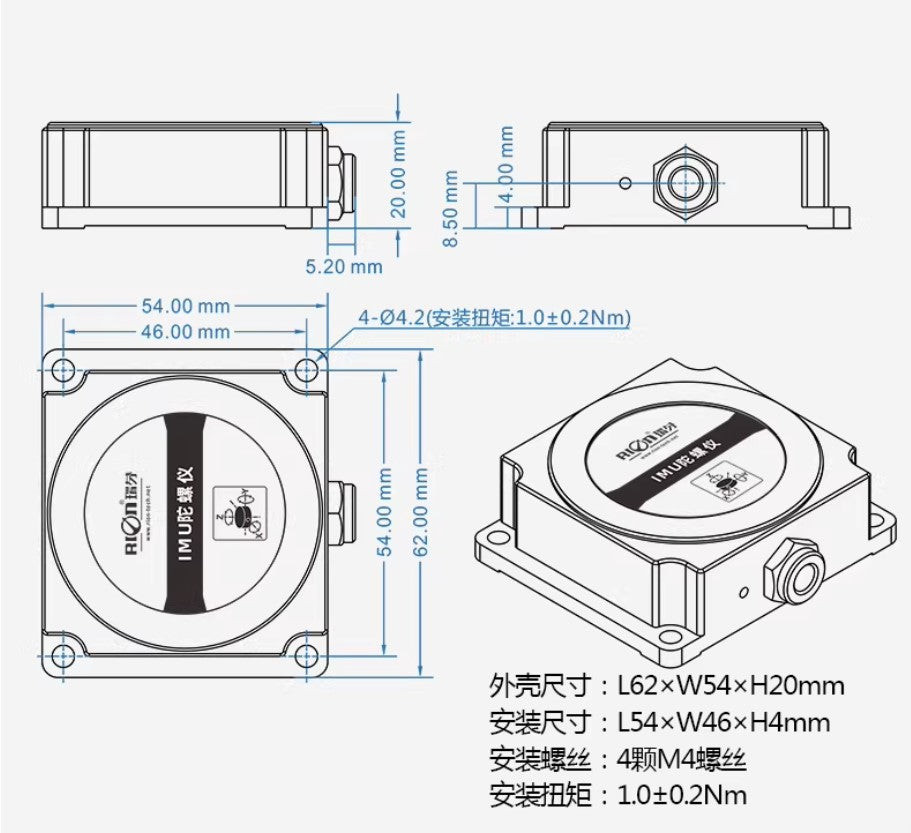

Mechanical
| Parameter |
Specification |
| Housing Material |
Plastic |
| Cable |
1 m shielded cable (4-core) |
| Weight |
≤135 g (including cable) |

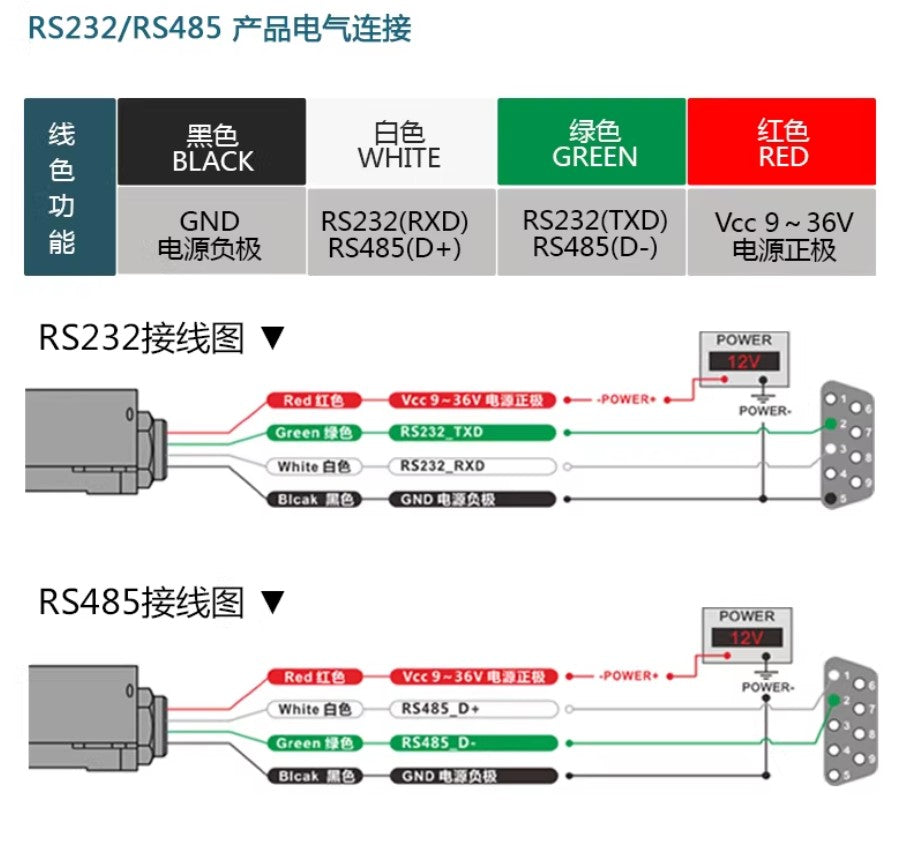

Communication Interface
| Parameter |
Specification |
| Interface |
RS232 / RS485 (optional) |
| Output Data |
Attitude, Heading, Angular velocity, Acceleration |
| Protocol |
Standard industrial protocol |
Installation Guidelines
Mounting Requirements
- Install on a flat and stable surface
- Avoid uneven mounting to prevent angle deviation

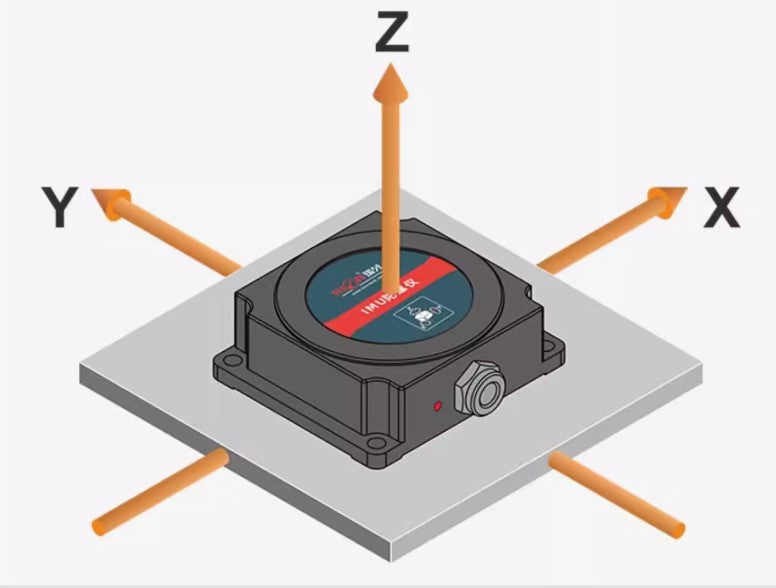

Axis Alignment (Critical)
- X-axis → Forward direction
- Y-axis → Lateral direction
- Z-axis → Upward direction
👉 Incorrect alignment will lead to wrong data output

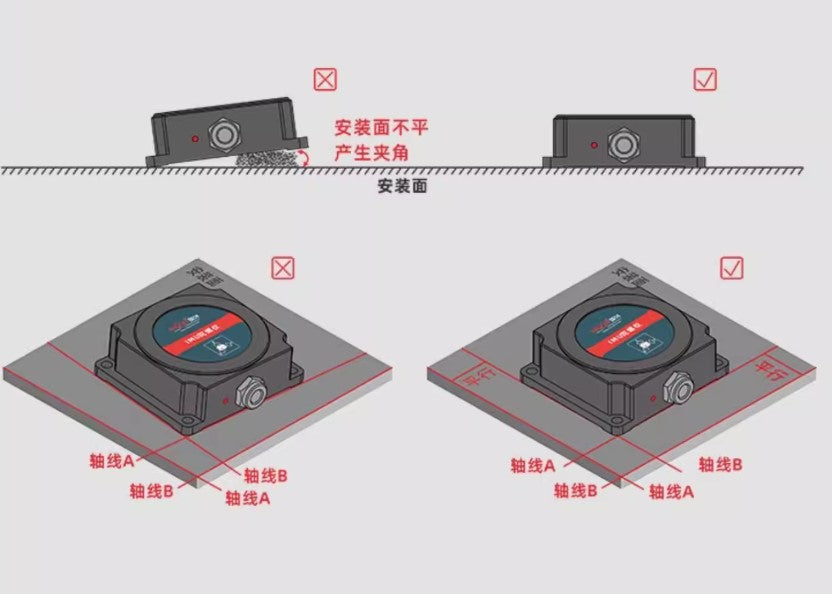

Correct Installation
✔ Flat mounting surface
✔ Proper axis orientation
Incorrect Installation
✖ Uneven surface
✖ Misaligned axes
Startup Condition
- Keep device static for first 0.5 seconds
- Ensures accurate initial calibration
Cable & Vibration Tips
- Avoid cable tension or twisting
- Ensure firm mounting even in vibration environments
Applications
- Agricultural autonomous machinery
- AGV / AMR robots
- Unmanned ground vehicles (UGV)
- Industrial automation systems
- Navigation and motion control
Why Choose TL725P
Unlike standard IMUs, the TL725P is specifically engineered for high-vibration environments, making it ideal for agricultural and outdoor robotic applications where stability is critical.
