Description

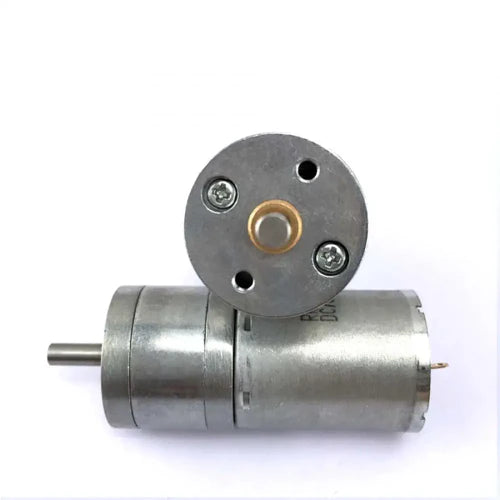

The Wild Thumper 6V DC Motor 75:1 is a durable and high-performance brushed DC motor designed for robotics and all-terrain vehicle applications. Featuring a strong 75:1 metal gearbox, it provides impressive torque and reliability even under demanding load conditions. Its precision steel construction ensures long lifespan and stable output. With a 4mm output shaft and compact cylindrical body, it’s compatible with various robotic platforms, such as the Wild Thumper chassis and custom mobile robots.
This motor combines high torque (up to 8.8kg·cm) with moderate speed (133 RPM output), making it ideal for applications requiring smooth and powerful motion, including tracked robots, wheeled rovers, and automation mechanisms.
Key Features
• High-torque 75:1 steel gearbox, designed for durability and power
• 6V nominal voltage, supports up to 7.5V max for enhanced performance
• Compact design for easy integration into small robotic platforms
• Metal gear construction ensures long service life
• 4mm output shaft compatible with common couplers and hubs
• Ideal for Wild Thumper robot chassis and other DC-driven platforms
Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 6V DC (7.5V max) |
| No-load Current | 350mA |
| Stall Current | 5.5A |
| No-load Speed (Motor) | 10,000 ±5% RPM |
| Gear Ratio | 75:1 |
| Output Speed (No-load) | 133 RPM |
| Stall Torque | 8.8 kg·cm |
| Output Shaft Diameter | 4mm |
| Shaft Length | 10mm |
| Motor Length (with Shaft) | 68mm |
| Motor Diameter | 25mm |
| Weight | 92g |
Applications
• Wild Thumper robot chassis
• Mobile robots and rovers
• Automation and DIY robotics projects
• Educational and research robotics kits
• Custom motorized systems requiring high torque
What’s Included
• 1 × Wild Thumper 6V DC Motor 75:1
