DESCRIPTION

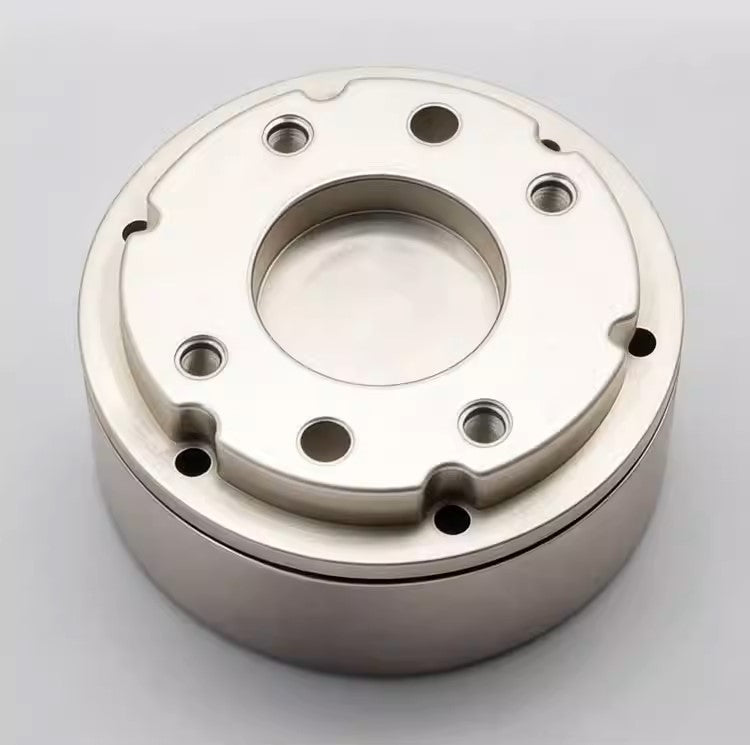

This heavy-duty 6-axis force torque sensor is engineered for high-load industrial applications, delivering precise measurement of force and torque across all axes (Fx, Fy, Fz, Mx, My, Mz).
With an ultra-high load capacity of up to 200kN force and 5kNm torque, this sensor is ideal for demanding environments such as industrial robotics, automated assembly lines, heavy machinery testing, and force feedback systems.
Equipped with high sensitivity (0.5–2.0 mV/V) and excellent overall accuracy (0.1–0.5% F.S), it ensures stable and reliable data acquisition even under extreme conditions.
The sensor comes with dedicated debugging and testing software, enabling real-time visualization of multi-axis force data and simplifying system integration.
KEY FEATURES
- Ultra-high load capacity: up to 200kN force / 5kNm torque
- Full 6-axis force & torque measurement (Fx, Fy, Fz, Mx, My, Mz)
- High sensitivity output: 0.5–2.0 mV/V
- High accuracy: 0.1–0.5% Full Scale
- Real-time multi-channel data monitoring
- Industrial-grade stability and anti-interference performance
- Integrated debugging & testing software included
- Supports multi-protocol communication (RS485 / CAN / EtherCAT optional)
- Suitable for heavy-duty and precision control applications
- Customization supported for specific industrial requirements
TECHNICAL SPECIFICATIONS
| Parameter | Value |
|---|---|
| Model | APCZ-DW-Y75-34 |
| Sensor Type | 6-Axis Force Torque Sensor |
| Force Range | Fx, Fy, Fz: 200 kN |
| Torque Range | Mx, My, Mz: 5 kNm |
| Sensitivity | 0.5 – 2.0 mV/V |
| Accuracy | 0.1 – 0.5% F.S |
| Output Signal | Analog / Digital (Optional) |
| Communication | RS485 / CAN / EtherCAT (Optional) |
| Software | Debugging & Testing Software Included |
| Material | Stainless Steel |
| Application Level | Heavy-Duty Industrial |
SOFTWARE & DATA VISUALIZATION
The included debugging software provides:
- Real-time display of 6-axis force curves
- Multi-channel data monitoring (Fx, Fy, Fz, Mx, My, Mz)
- Data logging and export capabilities
- Easy parameter configuration
- Fast system calibration and testing
This significantly reduces integration time and improves development efficiency.
APPLICATIONS
- Heavy industrial robotic systems
- Automated assembly and force-controlled production
- Load testing systems and mechanical validation
- Aerospace and automotive testing
- Collaborative robot force feedback systems
- Precision machining and grinding force monitoring
Recommended Products
ADVANTAGES IN INDUSTRIAL USE
- Enables force-position hybrid control
- Improves product consistency and reduces damage
- Enhances safety in high-load environments
- Supports intelligent automation and AI-driven control systems
PACKAGE INCLUDES
- 1 × Heavy-Duty 6-Axis Force Torque Sensor
- 1 × Communication Cable
- 1 × Debugging & Testing Software
- 1 × User Manual
FORCE CONTROL APPLICATION SCENARIOS
This sensor enables advanced robotic capabilities such as:
- Real-time contact force monitoring
- Force-position hybrid control
- Adaptive motion control
- Improved safety in human-robot collaboration
It helps robots achieve:
- More precise assembly
- Reduced component damage
- Consistent polishing quality
- Enhanced operational safety
WHY CHOOSE THIS SENSOR
- Enables high-precision robotic force control
- Improves automation efficiency and product quality
- Supports multiple industrial communication protocols
- Suitable for advanced robotics and AI systems
- Reliable performance in demanding environments
